Parvatrema duboisi (Digenea: Gymnophallidae) Life Cycle Stages in Manila Clams, Ruditapes philippinarum, from Aphae-do (Island), Shinan-gun, Korea

Article information

Korean J Parasito. 2021;59(1):83-88

Publication date (electronic) : 2021 February 19

doi : https://doi.org/10.3347/kjp.2021.59.1.83

Bong-Kwang Jung¹, Taehee Chang¹, Hyejoo Shin¹, Seungwan Ryoo¹, Sooji Hong¹, Jeonggyu Lee¹, Hyemi Song¹, Jaeeun Cho¹, Deok-Gyu Kim¹, Hojong Jun², Min-Jae Kim³, Eun Jeong Won⁴, Eun-Taek Han⁵, Eun-Hee Shin^6,7, Jong-Yil Chai^1,6,

¹Institute of Parasitic Diseases, Korea Association of Health Promotion, Seoul 07649, Korea

²Department of Tropical Medicine, Inha University College of Medicine, Incheon 22212, Korea

³Department of Infectious Diseases, Asan Medical Center, Seoul 05505, Korea

⁴Department of Parasitology and Tropical Medicine, Chonnam National University Medical School, Gwangju 61469, Korea

⁵Department of Medical Environmental Biology and Tropical Medicine, Kangwon National University, Chuncheon 24341, Korea

⁶Department of Tropical Medicine and Parasitology, Seoul National University College of Medicine, Seoul 03080, Korea

⁷Seoul National University Bundang Hospital, Seongnam 13620, Korea

^*Corresponding author (cjy@snu.ac.kr)

Received 2020 December 12; Revised 2020 December 23; Accepted 2020 December 23.

Five genera are acknowledged in the family Gymnophallidae Odhner, 1905, which include Gymnophalloides Fujita, 1925 (syn. Lacunovermis Ching, 1965), Parvatrema Cable, 1953 (syn. Meiogymnophallus Ching, 1965), Gymnophallus Odhner, 1900 (syn. Paragymnophallus Ching, 1973), Pseudogymnophallus Hoberg, 1981, and Bartolius Cremonte, 2001 [1,2]. Adult gymnophallids generally infect the intestine, gall-bladder, and bursa Fabricii of avian hosts, including shore birds and diving ducks [1]. However, they rarely occur also in mammals in 2 species of Gymnophalloides; G. seoi in humans and cats [3,4] and G. heardi in rats [5]. The species of Parvatrema, Gymnophallus, Pseudogymnophallus, and Bartolius have so far been found exclusively in avian hosts [1]. However, their zoonotic capability remains to be further determined.

In the Republic of Korea (=Korea), the existence of several gymnophallid species has been documented. They include G. seoi [3,6], Parvatrema macrostomus (syn. Gymnophallus macrostoma Yamaguti, 1939) [2,7], Parvatrema duboisi (Dollfus, 1923) Bartoli, 1974 (syn. Parvatrema timondavidi Bartoli, 1964) [2,8], Parvatrema chaii Sohn et al., 2007 [9], Parvatrema homoeotecnum James, 1964 [10], and Parvatrema sinonovaculae n. comb. (syn. Meiogymnophallus sinonovaculae Chai et al., 2007) [11].

The presence of P. duboisi metacercariae in Korea was first reported by Yu et al. [8] who detected these metacercariae in the Manila clam, Ruditapes philippinarum (syn. Tapes philippinarum) purchased from a fishery market in Seoul and obtained adult flukes after experimental infection to ICR mice. The locality origin of the Manila clam was unknown at that time [8] but later it was suggested to have been Gochang-gun, Jeollabuk-do (Province) [2]. Sohn et al. [12,13] found metacercariae of Parvatrema spp., including P. duboisi, in Manila clam collected from various localities of southern and southwestern parts of Korea. In addition, Chung et al. [10] collected adult flukes of P. duboisi from the intestine of great knots Calidris tenuirostris caught from a western coastal area, i.e., Gunsan-si (‘si’ is City), Jeollabuk-do. In Gochang-gun (‘gun’ is County), where the Manila clam is abundantly produced, the gymnophallid metacercariae detected were morphologically and molecularly confirmed to be P. duboisi [2]. However, on Aphae-do (Island), Shinan-gun, Korea, where a high endemicity of human G. seoi infection was reported [3,14], no information has been available regarding the presence of other gymnophallid species. In the present study, we found the existence of various life cycle stages (daughter sporocysts, cercariae, and metacercariae) of P. duboisi on Aphae-do (Island). Brief morphologies of these larval stages are described here.

The Manila clam, R. philippinarum, was collected from 3 estuary areas, i.e., Shinjang-3-ri (‘ri’ is village), Daecheon-ri, and Jang-gam-ri, of Aphae-do (Island), Shinan-gun, Jeollanam-do from 2001 through 2020. After the shell of the clam was removed, the animal part was cut into several pieces using a pair of scissors or briefly (a few seconds) ground in an electronic mixer with 0.85% saline. The mixture was washed several times with saline, and then the sediment was examined for daughter sporocysts, cercariae, and metacercariae of gymnophallids using a stereomicroscope. Some specimens were fixed in 70–80% ethanol for molecular studies, and others were fixed in 10% formalin for morphological studies.

The adult flukes were recovered from experimentally infected ICR mice with metacercariae at day 7 post-infection. The animal experiment was performed according to the guidelines of the Committee on the Ethics of Animal Experiments at Seoul National University College of Medicine, Seoul, Korea. The adult flukes collected from the small intestine of mice were fixed with 10% formalin and stained with Semichon’s acetocarmine.

Molecular studies were performed on daughter sporocysts (containing cercariae) and metacercariae. Genomic DNA was extracted using the DNeasy Blood and Tissue kit (Qiagen, Hilden, Germany). The internal transcribed spacer (ITS) region (ITS1, 5.8S rRNA, ITS2) was amplified using the standard PCR protocol with eukaryotic universal primers, 18d (5′-cacaccgcccgtcgctactaccgattg-3′) and 28cc (5′-actcgccgttactgagggaatcctggttag-3′) [15]. The amplified product was processed for initial denaturation at 94°C for 5 min, 35 cycles of denaturation at 94°C for 30 sec, annealing at 65°C for 30 sec, and extension at 72°C for 1.3 min, followed by a final elongation at 72°C for 5 min. The PCR product was purified and directly sequenced by Macrogen Inc. (Seoul, Korea). The phylogenetic tree was constructed using the maximum-likelihood method based on Tamura-Nei model of nucleotide substitution with 1,000 bootstrap replications with our samples and other gymnophallid species available in GenBank. The tree was viewed by MEGA v6 program.

Based on morphological (Figs. 1, 2) and molecular data (Fig. 3), the larval gymnophallids found in the Manila clam from 3 localities of Aphae-do (Island) were confirmed to be P. duboisi. The brief morphologies of daughter sporocysts, cercariae, metacercariae, and adults (experimental) were as follows:

Fig. 1

Parvatrema duboisi daughter sporocyst (A), ruptured daughter sporocyst (B), and cercaria (C) from a Manila clam, Ruditapes philippinarum collected from Aphae-do (Island), Korea. The sporocyst (A) contains about 19 cercariae (Cer), which are freely liberated (B). A cercaria (C) showing its oral and ventral suckers, ceca, and excretory bladder. Scale bars=120 μm (A), 80 μm (B), and 25 μm (C).

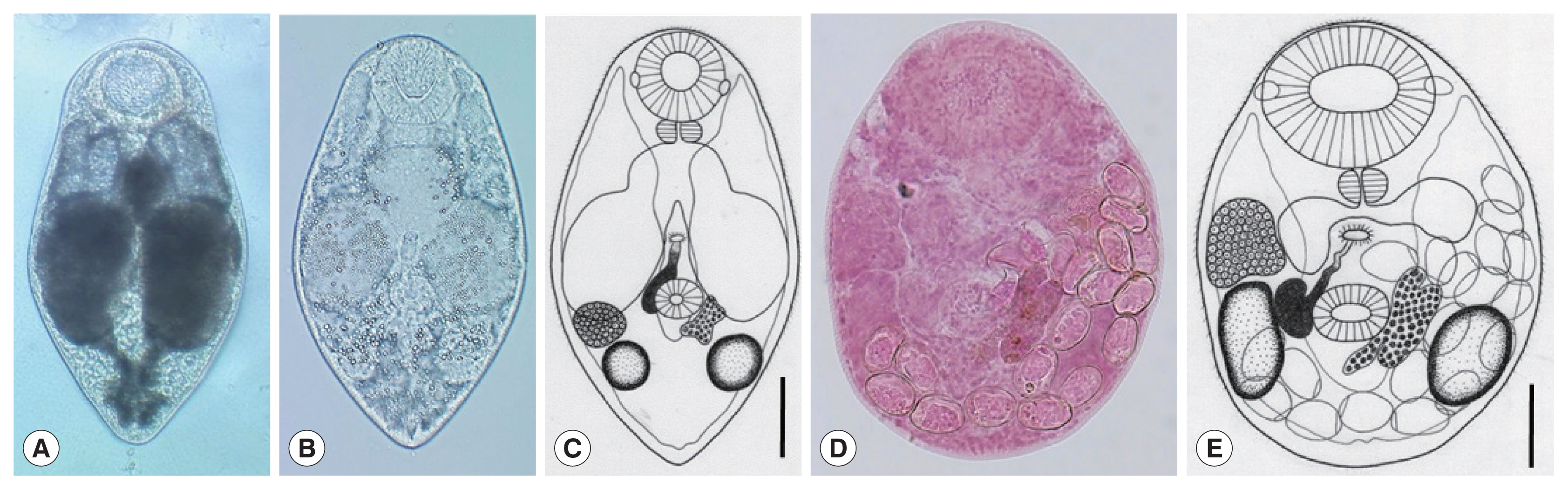

Fig. 2

Parvatrema duboisi metacercariae (A–C) from a Manila clam, Ruditapes philippinarum collected from Aphae-do (Island), Korea and adult (D, E) recovered from experimental mice. In some metacercariae (A), dark substances were seen within the inflated ceca, whereas in others (B), such substances were only scanty in amount. Line drawing of a metacercaria (C) showing the oral sucker with lateral projections, pharynx, ceca, ventral sucker, seminal vesicle, genital pore, vitellarium, ovary, 2 testes, and excretory vesicle. An adult fluke (D) recovered from an experimental mouse at day 7 post-infection. The seminal vesicle is well developed and the uterus with eggs is seen. Line drawing (E) of the adult fluke in Fig. 2D which shows the oral sucker, pharynx, ceca, ventral sucker, genital pore, seminal vesicle, ovary, 2 testes, vitellarium, and eggs. Scale bars=40 μm (C) and 45 μm (E).

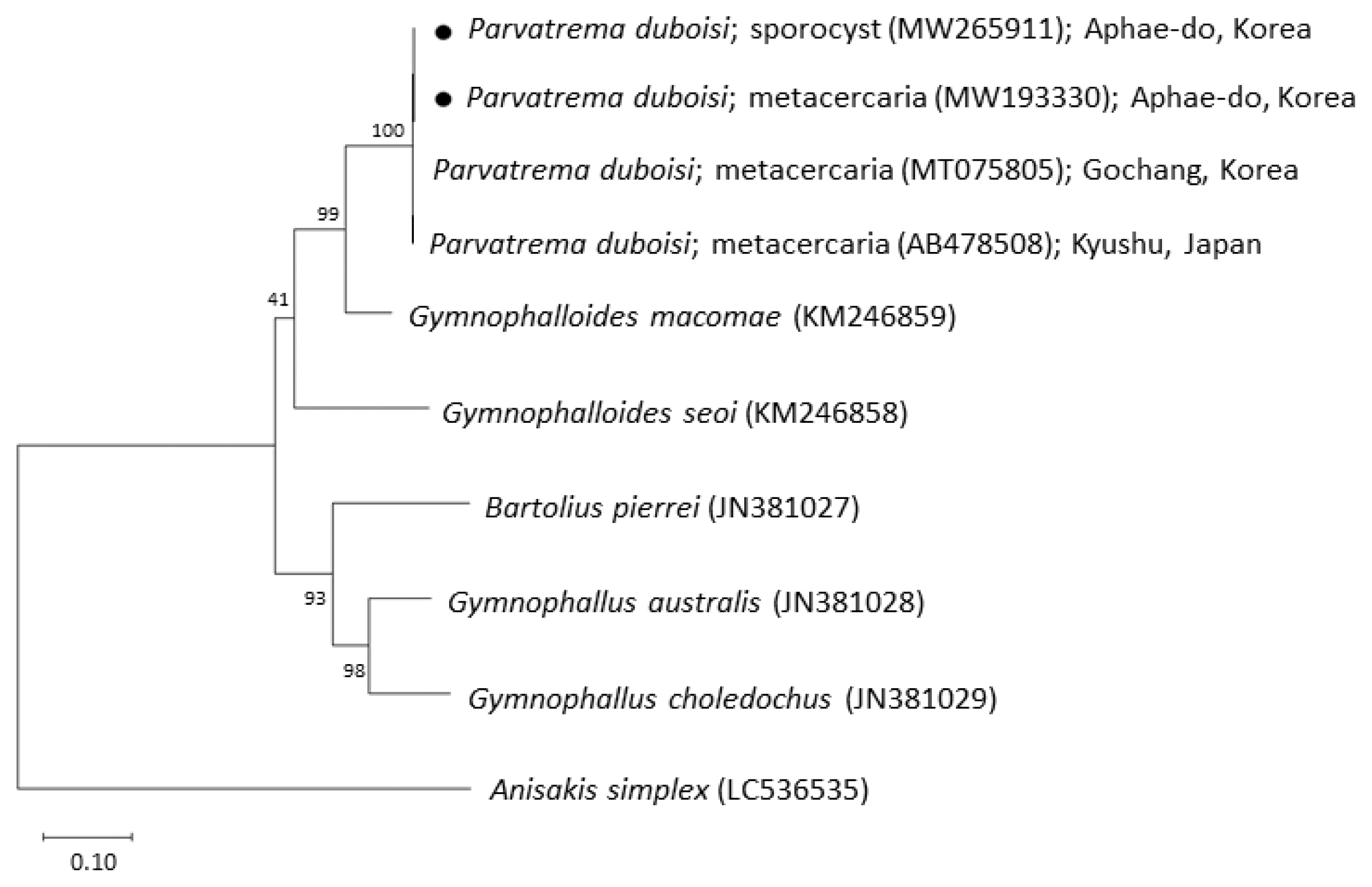

Fig. 3

Phylogenetic tree of ITS region showing the relationships between Parvatrema duboisi from this study (sporocyst and metacercaria) with members of the family Gymnophallidae available in GenBank analyzed by the maximum-likelihood method. GenBank accession numbers are indicated for reference species. Scale bar indicate the number of nucleotide substitutions per site. ●, our specimens.

The daughter sporocysts (Fig. 1A) were elongated sac-like having a birth pore at the anterior end, enveloped with a thin wall, but without a pharynx-like structure and a primitive gut, and 307–570 (av. 395) μm long and 101–213 (av. 157) μm wide (n=10). Most of them contained 15–20 cercariae and seemed to be the second or third generation daughter sporocysts, i.e., ripe daughter sporocysts.

The cercariae (Fig. 1B, C) were furcocercous (dichotoma) type with moderately long tail (furcae slightly longer than the tail stem) which measured 112–146 (av. 134) μm in total length and 35–46 (av. 40) μm in width; body 69–92 (av. 85) μm long and tail 39–54 (av. 49) μm long (n=10). The cercarial body showed a subterminal oral sucker, small ventral sucker, pharynx, short slightly inflated ceca, and U-, V-, or butterfly-shaped excretory bladder.

The metacercariae (n=10) were 231 (210–250) μm long and 185 (170–195) μm wide (Fig. 2A–C). They had a well-developed oral sucker with 2 small lateral projections on the lip, a small muscular pharynx, no pre-pharynx, 2 inflated oval ceca, a small round ventral sucker, 2 testes laterally located, an ovary in front of the right testis, a uniparpite seminal vesicle, and 1 compact or slightly lobed vitellarium at the left or postero-sinistral side of the ventral sucker. They had a genital pore, a wide slit-like opening, located some distance anterior to the ventral sucker but no ventral pit was present. The excretory bladder was U- or V-shaped with 2 arms reaching to the level of the oral sucker.

The adult flukes (n=10) were 225 (180–239) μm long and 170 (150–198) μm wide (Fig. 2D, E). They had a large oral sucker with 2 small lateral projections on the lip. The pharynx was well developed. The ventral sucker was small, round in shape, and located in the posterior field of the body. Two slightly elliptical testes were located laterally to the ventral sucker. One compact vitellarium was seen on the sinistral side of the ventral sucker, and a seminal vesicle on its dextral side. The ovary was at some distance anterior to the right testis. The genital pore was well developed, anterior to the ventral sucker, and connected to the seminal vesicle. The uterus was filled with a small number (≤20) of eggs; the egg size was 24 (22–27) μm long and 14 (12–20) μm wide.

The sequences of the ITS region of our specimens (sporocyst, GenBank no. MW265911; metacercaria, no. MW193330) revealed only 1 nucleotide substitution (1,192 of 1,193 sites or 99.9% were identical) from the known sequences of P. duboisi in Gochang, Korea (no. MT075805) [2] and 2 nucleotide substitutions (1,266 of 1,268 sites or 99.8% were identical) from P. duboisi in Kyushu, Japan (no. AB478508) [15] (Table 1). Meanwhile, our samples showed a sequence homology of only 77.1% in comparison with G. seoi. The phylogenetic tree (Fig. 3) showed that our samples were distant from Gymnophalloides macomae n. comb. Scholz, 2002 [syn. Lacunovermis macomae (Lebour, 1908) Loos-Frank, 1970], Bartolius pierrei, Gymnophallus australis, and G. choledochus (Table 1; Fig. 3).

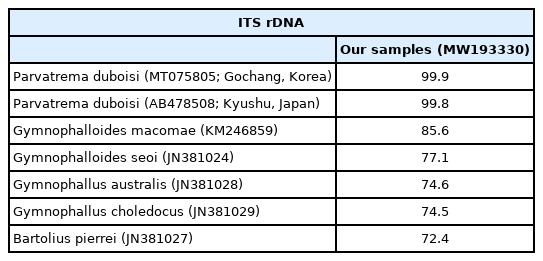

Table 1

Sequence comparison of our samples with members of the family Gymnophallidae based on ITS region (ITS1–5.8S rDNA-ITS2) at metacercarial stage

In the family Gymnophallidae, Ching [16] created 2 genera, Lacunovermis (wide genital pore, ventral pit present) and Meiogymnophallus (small genital pore, no ventral pit). However, Yamaguti [17] and Scholz [1] synonymized Lacunovermis with Gymnophalloides which has a small genital pore and a well-developed ventral pit, because the size of the genital pore could not be a significant character to differentiate the 2 genera. In addition, Meiogymnophallus was synonymized with Parvatrema by Scholz [1] because the difference between the 2 genera given by Ching [16,18] was only the size of the genital pore, small in the former and wide in the latter. Paragymnophallus was created by Ching [19] to accept those gymnophallids that have a wide genital pore at a distance anterior to the ventral sucker. However, this genus was synonymized with Gymnophallus by Scholz [1].

Our specimens were morphologically assigned to Parvatrema because they had an oral sucker with 2 lateral projections and U- or V-shaped excretory bladder, lacking a ventral pit [1]. In the genus Parvatrema, 24 species are currently known [2]. Among them, 7 species that have a single compact mass of vitellarium were comparable with our specimens [2]. They included P. borinqueñae, P. bushi, P. chaii, P. donacis, P. duboisi, P. polymesoda, and P. rebunense. The differential points between P. duboisi and 7 other Parvatrema species were previously described by Chang et al. [2].

In molecular analysis by sequencing of the ITS region, the homology of our specimens (sporocysts and metacercariae) with P. duboisi reported from Korea (Gochang) and Japan (Kyushu) was 99.8–99.9%, while the homology with Gymnophalloides spp. (G. macomae and G. seoi) was 77.1–85.6%. On the other hand, Gymnophallus spp. (G. australis and G. choledochus) and Bartolius sp. (B. pierrei) were far from our specimens, with only 72.4–74.6% homology with our specimens. These results agreed to Cremonte et al. [20] that Parvatrema and Gymnophalloides are phylogenetically closer to each other than to the other genera of the family Gymnophallidae (Gymnophallus and Bartolius) and possibly also Pseudogymnophallus (no molecular data have been provided in GenBank).

P. duboisi was first described by Dollfus [21] in 1923 under the name Gymnophallus duboisi with the metacercariae obtained from the marine mussel Mytilus galloprovincialis in France. Later (1963–1965), Bartoli [22,23] described a new species (Parvatrema timondavidi) based on metacercariae from the same species of mussels collected from the Gulf of Marseille, France. However, in 1974, Bartoli [24] found that the gymnophallid species described by himself as P. timondavidi was identical with those of G. duboisi and renamed it as Parvatrema duboisi as a new combination. The natural definitive host included tufted ducks Aythya fuligula, and experimental hosts were chickens and ducks [24]. Meanwhile, in 1944, Ogata [25] obtained gymnophallid metacercariae from the Manila clam and adults from an experimental rat in Japan and diagnosed them as Gymnophallus bursicola which was reported by Odhner in 1900. Later, however, Endo and Hoshino [26] found that these metacercariae and adults obtained from experimental mice should be assigned to P. timondavidi. Subsequently, Shimura et al. [27] settled the name of this parasite as P. duboisi. Now the geographical distribution of P. duboisi has been extended from France [21–24] to Japan [15,25–27], Korea [2,8, 10,12,13], Ukraine [28], and Turkey [29].

The second intermediate host of P. duboisi had been repeatedly confirmed to be marine bivalves or clams, including M. galloprovincialis [24,28,29], Brachydontes minimus [24], Venus gallina [24], and the Manila clam R. philippinarum [2,8,10,12, 13,15,25–27]. However, its first intermediate host and the developmental (larval) stages of parasites were only recently discovered by Yanagida et al. [15]. The Manila clams collected from Ariake Sea, Japan were confirmed to be the first as well as the second intermediate host harboring the sporocysts, cercariae, and metacercariae [15], to which the present study from Aphae-do (Island), Korea agreed well. Yanagida et al. [15] also suggested that there may be another snail or clam species acting as the first intermediate host. However, morphological details and measurements of the sporocysts and cercariae were not given by Yanagida et al. [15], and the present study is the first in which the measurements of these larval stages have been provided.

In conclusion, the present study confirmed the presence of the life cycle stages of P. duboisi, including the sporocysts, cercariae, and metacercariae, in the Manila clam caught from 3 estuary areas of Aphae-do (Island), Korea. The Manila clams were found to take the dual role of the first as well as the second intermediate host. The possibility of human infections with this gymnophallid remains to be determined.
