A more user-friendly, rapid, filtration-based immunogold assay is widely applied. Lateral flow immunoassay (LFIA) is a rapid, single-step immunochromatographic assay that uses colloidal gold as the tracer [21]. In 1990, Beggs [22] first developed the colloidal gold immunochromatography assay for qualitative detection of human chorionic gonadotropin (HCG), and this assay has been widely applied to diagnose many diseases. Its advantages are rapid, simple, specific, and sensitive characteristics. Additionally, this method has also been used to detect bioactive molecules, hormones, and haptens [23,24]. With regard to parasite infections, LFIA has been successfully and widely used to detect malaria [25,26]. The objective of the present study was therefore to establish the LFIA method, which was based on the monoclonal antibody (mAb) technology, for detecting human angiostrongyliasis. LFIA we developed offered a method for specifically, sensitively, and rapidly detecting human angiostrongyliasis.

Ethical clearance for the collection and examination of human sera was obtained from the Ethics Committee of the National Institute of Parasitic Diseases (NIPD), Chinese Center for Disease Control and Prevention (China CDC), China. All animals were handled in strict accordance with good animal practice according to the Animal Ethics Procedures and Guidelines of the People’s Republic of China, and the study was approved by the Animal Welfare and Ethics Committee of NIPD, China CDC (permit no: IPD2012-5). Sera of 80 specific-pathogen free (SPF) rats and 15 SPF mice infected with A. cantonensis were stored at -80˚C until used in our laboratory.

All of those positive sera collected from patients who were confirmed either by ‘‘gold standard assays’’ that was pathological/parasitological examinations and/or immunological methods (Supplementary Table S1), or by combination of specific clinical symptoms and routine serological methods in accordance with the national criteria for clinical diagnosis of parasitic diseases. A total of 90 sera were obtained from patients with angiostrongyliasis. Among them, 3 patients were confirmed by parasitology (presence of larvae in the cerebrospinal fluid) and 87 ones clinically along with a previous history of eating raw or undercooked food contaminated with parasites, intermediate hosts, or transport hosts of A. cantonensis. The diagnosis was made at Diseases Control and Prevention, Shenzhen, P. R. China in accordance with the national diagnostic criteria of angiostrongyliasis issued by Ministry of Health of P. R. China [27]. In this group, eosinophilia (with at least 7% of white cell counts in the peripheral blood) and evidence of brain image abnormality were observed. There was also high specificity in ELISA to the whole A. cantonensis antigen [2,28].

All serum samples obtained from Chinese patients infected with Clonorchis sinensis, Schistosoma japonicum, and Ascaris lumbricoides were diagnosed by parasitological examination, or the eggs were detected in feces [29]. Furthermore, there were 30 serum samples from patients infected with Paragonimus westermani confirmed parasitologically with the eggs detected from the sputum or pleural fluid [30]. A total of 20 serum samples of patients infected with cysticercus cellulosae (metacestode of Taenia solium) were collected from Yunnan province, P. R. China. Among them, 12 patients had been confirmed by pathological diagnosis. The others were diagnosed by serological methods (using an ELISA kit produced by Combined Biotech Company, Shenzhen, Guangdong, P. R. China). All these patients presented with the symptoms of dizziness, raised intracranial pressure, or emotional disturbance, and a history of consuming raw pork. Ten patients infected with Echinococcus granulosus larvae were confirmed by parasitology after surgery, while the patients infected with Toxoplasma gondii were confirmed serologically by using ELISA kits (Combined Biotech Company). Serum samples of 10 trichinellosis patients were collected from Yunnan province, P. R. China, of which 5 cases confirmed pathologically or by finding Trichinella spiralis larvae in muscle sections. The remaining 5 cases were diagnosed serologically by using an ELISA kit (Combined Biotech Company). Ten serum samples were collected from patients infected with Spirometra spp., which were confirmed by surgery (larvae of subcutaneous Spirometra spp.) (Table 1; Supplementary Table S1). Sera of healthy adult people were collected from the serum bank stored at -80˚C in Diseases Control and Prevention, Shenzhen, P. R. China (Table 1). A. cantonensis Shenzhen strain has been maintained through SPF rats in our laboratory. Rats were orally infected with the third stage larvae (L3) from infected Achatina fulica snail, and from the rat lungs, adult worms were harvested on the day 33 post-infection. Excretory-secretory (ES) products of A. cantonensis worms were obtained by incubating the adult worms in physiologic saline for 3 days at room temperature (RT).

The mAbs (12D5C12, 21B7B11) against ES antigens of A. cantonensis were previously produced in our laboratory [31]. The mAb 12D5C12 is IgG1 and mAb 21B7B11 is IgM. These mAbs recognized independently epitopes on an ES antigen (98 kDa) of A. cantonensis adult worms. These mAbs can react with eggs, first-stage larvae, and the adults of A. cantonensis, suggesting that different developmental stages of A. cantonensis secrete common antigens.

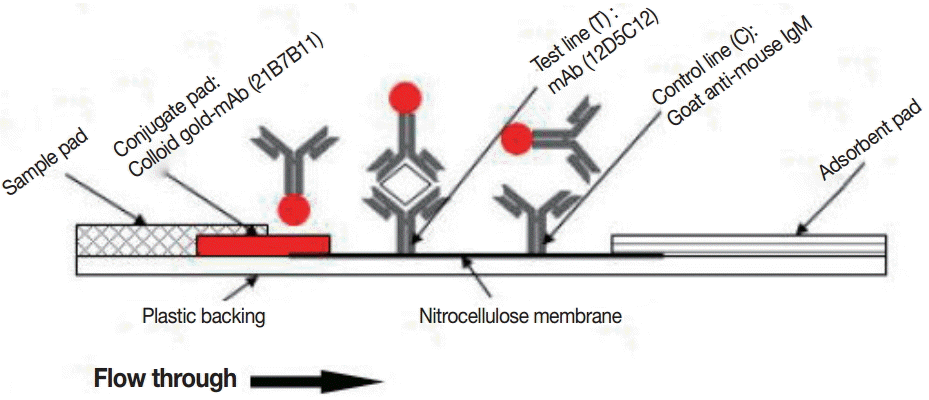

Immunochromatographic strip was composed of 4 parts, including the sample pad, conjugate pad, immobilized nitrocellulose membrane, and absorbent pad. The sample pad influencing migration of the gold nanoparticle-antibody conjugate was treated with 50 mmol/L borate buffer (pH 7.4) containing 1% BSA, 0.5% Tween-20, and 0.05% sodium azide. Gold nanoparticles were coated with mAb 21B7B11 by a method with modifications [32,33]. The coated gold particles were added to the glass-fiber conjugate pad and dried at 37˚C for 2 hr. The test line (T) was coated with 2.0 mg/ml mAb (12D5C12) and the control line (C) with 0.8 mg/ml goat anti-mouse IgM. Those pretreated 4 parts were stuck on a polyvinyl chloride (PVC) plate, cut into 3 mm wide strips and stored dry at 4˚C until used. All sera from patients infected with parasites or healthy individuals were examined along operation manual of the commercial ELISA kit for specific IgG antibody of A. cantonensiss. A schematic representation of the immunochromatographic test device was shown in Fig. 1. All sera from patients infected with different parasites and healthy individuals were examined by GICA. Briefly, 20 μl serum was dropped into the sample pad and incubated at 37˚C for 5-10 min.

In the detection zone, the goat anti-mouse IgM and mAb (12D5C12) were separately stripped onto C or T line, and the goat anti-mouse IgM were reacted with the mAb (21B7B11)-coated colloidal gold particles in the control region for the reaction, while mAb (12D5C12) were reacted with the A. cantonensis antigen bound mAb (21B7B11)-coated colloidal gold particles in the test region. A positive result can be judged by 2 red lines in C and T regions, and a negative result by only a single line in C region. The darker the color of the test line is, the higher the concentration of the antigen in the sample is. The test was invalid if there was no line in both regions or only 1 line in T region. The ES products of A. cantonensis adult worms were 2-fold diluted to 0.5-8 ng/ml with a pooled serum of health adults. The different concentrations of A. cantonensis ES products were detected using the immunoassay strips described above. All data were processed and analyzed with Microsoft Office Excel 2007. The sensitivity, specificity, positive predictive value (PPV), and negative predictive value (NPV) were calculated relative to the ‘gold’ standard parasitological or serological results that correlated to each serum sample (Table S1). The 95% confidence intervals (95% CI) were determined as described previously [30]. Youden index summarizes the discriminatory accuracy of a diagnostic test and provides a ready-to-use optimal cut-point for the purpose of future diagnosis. Youden index was defined [34] as J (t)=sensitivity+ specificity–1. Practically, this definition renders a maximum value of 1 when a diagnostic test provides a perfect separation between 2 populations and a minimum of zero when it classifies no better than chance. It was used to assess the ability of the test to discriminate true positives and true negatives.

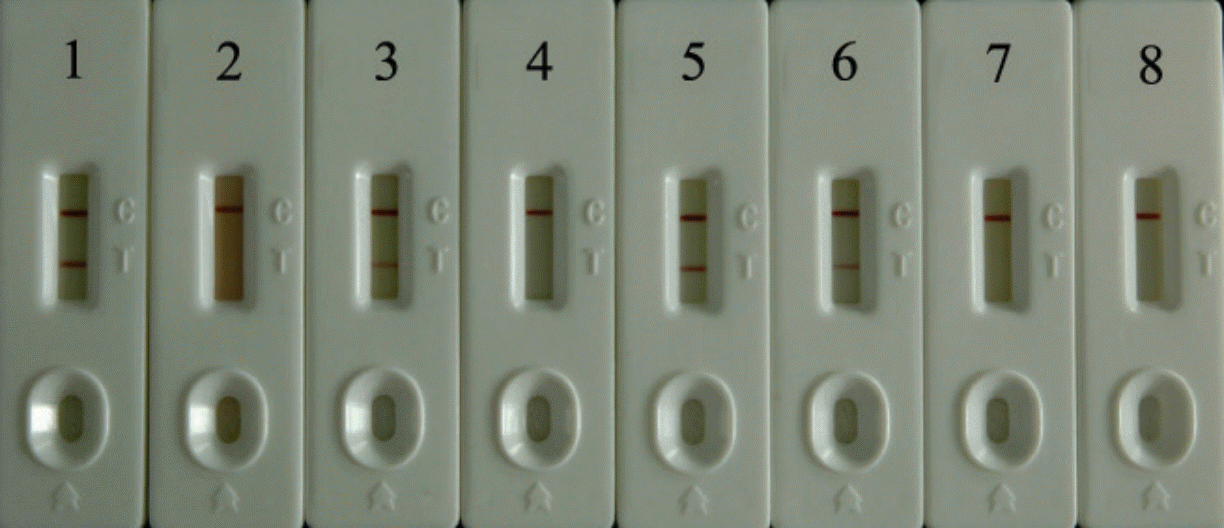

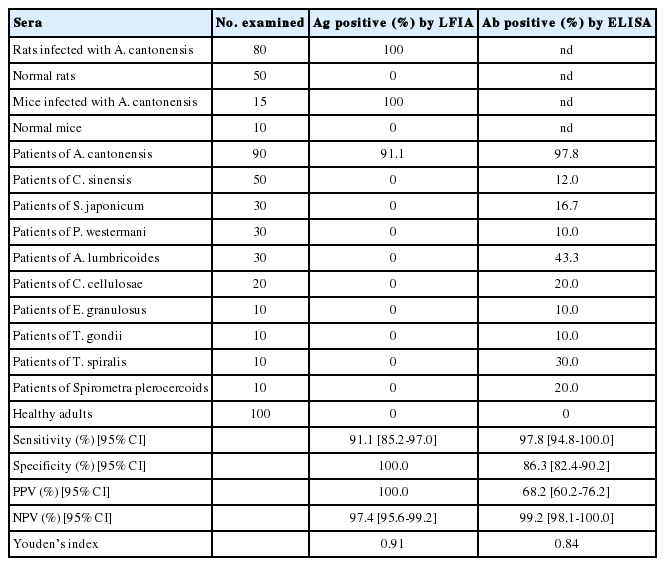

The specificity and sensitivity of LFIA was 91.1% (95% CI: 85.2-97.0%) and 100% (95% CI: 100.0%), respectively (Table 1; Fig. 2). Youden index of LFIA was 0.91 (Table 1). The specificity and sensitivity of the commercial ELISA kit was 97.8% and 86.3% (Table 1), respectively. Youden index of the commercial ELISA kit was 0.84 (Table 1). The assay was completed in less than 10 min (5-10 min). The detection limit of LFIA was 1 ng/ml of A. cantonensis ES products. The red color intensity of the test line was proportional to the antigen concentration in the range of 0.5-8 ng/ml. Sera of health adults showed no band in the T line (Supplementary Fig. 1S).

Most of the specific methods for angiostrongyliasis diagnosis used at present are not satisfied for the shortages of insufficient sensitivity, specificity, and reproducibility [16,20,35]. Serological surveillance will be useful in determining the infection status, and it plays an important role in the control of this parasitic disease in humans. Compared with other methods for diagnosis of A. cantonensis infection, such as the latex test and ELISA test, Gan et al. [36] generated an initial non-enzymatic, dot immunogold filtration assay (DIGFA) with crude antigen preparation which was used to detect specific IgG antibodies against A. cantonensis in infected patients and was found to have a diagnostic sensitivity of 91% and specificity of 98% for human angiostrongyliasis [36]. However, crude antigens may lead to cross reactions with other nematode infections. Subsequently, a modified rapid dot-immunogold test using purified 31 kDa antigen of A. cantonensis to enhance test sensitivity has performed well on clinical samples at Siriraj Hospital. The test is rapid, easy to perform, and needs no special equipment [37]. However, 31 kDa antigen was mainly used for antibody detection, which was not able to distinguish past infection or current infection. This phenomenon was because antibodies will persist in the human body after treatment. Using monoclonal antibodies to detect A. cantonensis circulating antigen, it can better distinguish past infection or current infection, as well as can be applied to better assessment of therapeutic effects.

Currently, the LFIA assay system demonstrated in this study can give a confident analytical performance and can be constructed in the laboratory by preparing 2 major components; one was the detection mAb labelled with a signal generator, such as mAb 21B7B11, and the other was the capture mAb which was immobilized on the surfaces of membrane strip, such as mAb 12D5C12. The method is more rapid and easier to perform than the traditional ELISA assay. The test utilizing A. cantonensis mAbs is reliable and reproducible for specific immunodiagnosis of human infections with A. cantonensis. Thus, it can be applied as an additional routine test for clinical diagnostic support and large-scale seroepidemiological studies in endemic communities to evaluate its usefulness under field conditions. Moreover, the test required no instrumentations, and the results can be obtained in only 5-10 min. The constructed kits have some benefits, too, such as user friendly format, very short time to get test results, long shelf life at RT, and relatively inexpensive for preparation.

In conclusion, the present study established a LFIA for the detection of A. cantonensis circulating antigen in sera of patients and animals. The established kit and LFIA methods should provide a useful detecting approach for clinical diagnosis and assessment of chemical treatment effects.
