Identification and characterization of allergens of <i>Chironomus flaviplumus</i> adults (Chironomidae, Diptera) in mice

, Ree, H I; , Lee, S H; , Kim, Y K; , Jeon, S; , Chang, J K; , Kim, Y S

doi:1996.34.1.35

Korean J Parasito > Volume 34(1):1996 > Article

Original Article


Korean J Parasitol. 1996 Mar;34(1):35-47. English. Published online Mar 20, 1996. http://dx.doi.org/10.3347/kjp.1996.34.1.35
Copyright © 1996 by The Korean Society for Parasitology


Identification and characterization of allergens of Chironomus flaviplumus adults (Chironomidae, Diptera) in mice
Han-Il Ree,^*¹Sang-Hwa Lee,¹Yu-Kyoung Kim,¹Soungmin Jeon,¹Jae-Kyung Chang,¹ and Yoon-Suk Kim²
¹Department of Parasitology, College of Medicine, Yonsei University, Seoul 120-752, Korea.
¹Department of Clinical Pathology, College of Health science, Yonsei University, Wonju 220-701, Korea.

Received December 22, 1995; Accepted January 13, 1996.
Abstract
Non-biting midges (Chironomidae, Diptera) are one of the largest insect families, which are distributed worldwidely and are found in nearly all types of inland waters. They are known to be aggressive inhalant allergens which cause allergenic diseases. In this study, the crude antigens of Chironomus flaviplumus adults which are most widely distributed in Korea were extracted, and their allergens were analyzed with the sera from experimentally sensitized mice. The mice were immunized with 1 µg or 10 µg of the crude antigens, respectively, and the specific serum IgE levels were measured by both ELISA and passive cutaneous anaphylaxis (PCA) techniques. The highest levels of both total IgE and chironomid-specific IgE were found in the mouse sera obtained after 9 weeks of the first injection with 1 mu g crude antigen. The crude antigen was separated into 16-18 protein bands on gel by SDS-PAGE. The crude extract was assessed by SDS-PAGE/immunoblot analysis. One IgE-binding band (65 kDa) was detected by developing with colorimetric substrate, and 4 IgE-binding bands (65, 52, 35 IgE-binding and 25 kDa) by developing with CSPD chemiluminescent substrate. The SDS-PAGE gel of the crude extract of chironomid adults was equally cut into 30 pieces and each of them was eluted to isolate proteins by molecular weight, and the allergenicity of each eluate was assessed by applying P-K test on rats. Proteins of 65, 35 and 15 kDa showed the highest P-K titer (×512) which was 16 times higher than that of the crude extract (×32). The P-K titer of 52 kDa protein was also 4 times higher (×128) than that of the crude extract, whereas the 25 kDa protein poorly responded, which seemed not antigenic. In conclusion, the present result in mice demonstrated that adults of Chironomus flaviplumus, a predominent species in Korea, cause allergenic diseases and the main allergens are 65, 52, 35 and 15 kDa proteins, of which 65 kDa protein seems to be a main allergen.

Figures

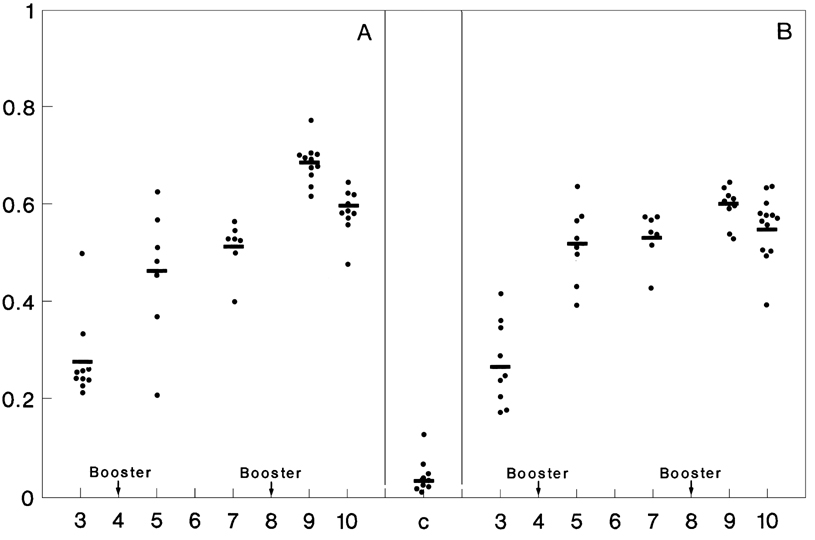

	Fig. 1 Specific IgE values of the mouse sera immunized with 1 µg (A) or 10 µg (B) crude extracts of Chironomus flaviplumus. The bar represents the average.


	Fig. 2 Ion exchange chromatography of Chironomus flaviplumus crude lysate on QAE sephadex A-50 column. A, Fractions eluted by non-salt elution buffer; B, Fractions eluted by a elution buffer with 0-0.5 N gradient salt.

Fig. 3
SDS-polyacrylamide gel electrophoresis of Chironomus flaviplumus crude extract and fractions from QAE sephadex A-50 column chromatography. The proteins were run on 10% SDS-PAGE. Lane 1, Molecular weigh standard; lane 2, Chironomus flaviplumus crude extract ; lane 3, a fraction eluted by non-salt elution buffer from QAE sephadex A-50 column chromatography; lane 4, a fraction eluted by elution buffer with 0-0.5 N gradient salt.

Fig. 4
Immunoblotting analysis of Chironomus flaviplumus crude extract and fraction from QAE sephadex A-50 column chromatography. The proteins were run on 10% SDS-PAGE and transferred to nitrocellulose membrane. The membrane was visualized by chemiluminescent substrate in lane 1 and by colorimetric substrate in lane 2, 3 and 4. Lane 1 and 2, Chironomus flaviplumus crude extract; lane 3, a fraction eluted by non-salt elution buffer from QAE sephadex A-50 column chromatography; lane 4, a fraction eluted by elution buffer with 0-0.5 N gradient salt.


	Fig. 5 SDS-PAGE analysis of proteins eluted from Chironomus flaviplumus crude extract on 10% SDS-polyacrylamide gel. The gel was cut into 30 pieces and each eluate was re-run on 5-20% gradient SDS-polyacrylamide gel. H, high molecular weight protein standard; L, low molecular weight protein standard; I, immunoblotting analysis of crude lysate; C: Chironomus flaviplumus crude extract.


	Fig. 6 Reactivities of the elutions of Chironomus flaviplumus antigen by P-K type skin test. Reactivity was represented as reciprocal P-K titers. ^*CE, crude extract.


	Fig. 7 P-K skin tests. A, P-K titer (×32) of elution No. 4; B, Negative P-K titer elution No. 8.

Tables


	Table 1 Total IgE values of the mouse sera immunized with 1 µg or 10 µg crude extracts of Chironomus flaviplumus


	Table 2 Specific IgE values of the mouse sera immunized with 1 µg or 10 µg crude extracts of Chironomus flaviplumus


	Table 3 Reciprocal PCA titer of the mouse sera immunized with 1 µg (A) or 10 µg (B) crude extracts of Chironomus flaviplumus


	Table 4 Reciprocal P-K titers of Chironomus flaviplumus crude extract and the proteins fractionated by ion exchange chromatography

References


1.	Abe T, Ishii A. Purification of a murine IgE-inducing antigen extracted from the house dust mite, Dermatophagoides pteronyssinus. Mol Immunol 1982;19(2):339–346.

2.	Baur X. [Hemoglobins of chironomids: until now unknown potent inhalent antigens for humans (author's transl)]. Klin Wochenschr 1980;58(20):1163–1164.

3.	Baur X, Dewair M, Fruhmann G, Aschauer H, Pfletschinger J, Braunitzer G. Hypersensitivity to chironomids (non-biting midges): localization of the antigenic determinants within certain polypeptide sequences of hemoglobins (erythrocruorins) of Chironomus thummi thummi (Diptera). J Allergy Clin Immunol 1982;69(1 Pt 1):66–76.

4.	Baur X, Dewair M, Haegele K, Prelicz H, Scholl A, Tichy H. Common antigenic determinants of haemoglobin as basis of immunological cross-reactivity between chironomid species (Diptera, Chironomidae): studies with human and animal sera. Clin Exp Immunol 1983;54(2):599–607.

5.	Friesel R, Burgess WH, Maciag T. Heparin-binding growth factor 1 stimulates tyrosine phosphorylation in NIH 3T3 cells. Mol Cell Biol 1989;9(5):1857–1865.

6.	Gillespie PG, Hudspeth AJ. Chemiluminescence detection of proteins from single cells. Proc Natl Acad Sci U S A 1991;88(6):2563–2567.

7.	Goodman M, Braunitzer G, Kleinschmidt T, Aschauer H. The analysis of a protein-polymorphism. Evolution of monomeric and homodimeric haemoglobins (erythrocruorins) of Chironomus thummi thummi (Insecta, Diptera). Hoppe Seylers Z Physiol Chem 1983;364(3):205–217.

8.	Hirano T, Yamakawa N, Miyajima H, Maeda K, Takai S, Ueda A, Taniguchi O, Hashimoto H, Hirose S, Okumura K, et al. An improved method for the detection of IgE antibody of defined specificity by ELISA using rat monoclonal anti-IgE antibody. J Immunol Methods 1989;119(1):145–150.

9.	Igarashi T, Murakami G, Adachi Y, Matsuno M, Saeki Y, Okada T, Kawai K, Kumagai A, Sasa M. Common occurrence in Toyama of bronchial asthma induced by chironomid midges. Jpn J Exp Med 1987;57(1):1–9.

*10.*	Ishii A, et al. Res Rep Nitsan Kagaku Sinkou Jaidan 1988;11:79–88.

*11.*	van Kampen V, Liebers V, Czuppon A, Baur X. Chironomidae hemoglobin allergy in Japanese, Swedish, and German populations. Allergy 1994;49(1):9–12.

*12.*	Kawai K, et al. Jpn J Allergol 1988;37:944–951.

*13.*	Kawai K, et al. Jpn J Sanit Zool 1992;43:95–103.

*14.*	Kay AB, Gad El, Rab MO, Stewart J, Erwa HH. Widespread IgE-mediated hypersensitivity in Northern Sudan to the chironomid Cladotanytarsus lewisi ('green nimitti'). Clin Exp Immunol 1978;34(1):106–110.

*15.*	Kim YJ, Park HS. Skin reactivity and specific IgE antibody to two nonbiting midges in Korean respiratory allergy patients. J Korean Med Sci 1994;9(1):21–28.

*16.*	Kimura JY, Matsuoka H, Ishii A. ELISA inhibition method in detection of mite and chironomid antigens in environmental samples of dust, soil and air. Allergy 1990;45(3):167–173.

*17.*	Laemmli UK. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 1970;227(5259):680–685.

*18.*	Lowry OH, Rosebrough NJ, Farr AL, Randall RJ. Protein measurement with the Folin phenol reagent. J Biol Chem 1951;193(1):265–275.

*19.*	Matsuno M, et al. Jpn J Allergol 1991;40:51–59.

*20.*	Matsuoka H, Ishii A, Kimura JY, Noono S. Developmental change of chironomid allergen during metamorphosis. Allergy 1990;45(2):115–120.

*21.*	Matsuoka H, Ishii A, Noono S. Detection of IgE antibodies to larvae and adults of chironomids by enzyme-linked immunosorbent assay. Allergy 1988;43(6):425–429.

*22.*	Mazur G, et al. J Allergy Clin Immunol 1987;80:867–883.

*23.*	Mota I, Wong D. Homologous and heterologous passive cutaneous anaphylactic activity of mouse antisera during the course of immunization. Life Sci 1969;8(16):813–820.

*25.*	Park HS, et al. J Korean Soc Allergol 1991;11:362–367.

*26.*	Prelicz H, Baur X, Dewair M, Tichy H, Kay AB, Tee R, Cranston PS. Persistence of hemoglobin allergenicity and antigenicity during metamorphosis of Chironomidae (Insecta: Diptera). Int Arch Allergy Appl Immunol 1986;79(1):72–76.

*27.*	Ree HI. Korean J Entomol 1993;23:169–176.

*28.*	Ree HI, et al. Proc Coll Nat Sci SNU 1981;6:1–126.

*29.*	Schin K, et al. J Insect Physiol 1974;20:561–571.

*30.*	Kino T, Chihara J, Fukuda K, Sasaki Y, Shogaki Y, Oshima S. Allergy to insects in Japan. III. High frequency of IgE antibody responses to insects (moth, butterfly, caddis fly, and chironomid) in patients with bronchial asthma and immunochemical quantitation of the insect-related airborne particles smaller than 10 microns in diameter. J Allergy Clin Immunol 1987;79(6):857–866.
