Study on sensory papillae of <i>Metagonimus yokogawai</i> cercaria

, Kim, Jae Jin; , Min, Duk Young; , Soh, Chin Thack

doi:1984.22.1.11

Korean J Parasito > Volume 22(1):1984 > Article

Original Article


Korean J Parasitol. 1984 Jun;22(1):11-20. English. Published online Mar 20, 1994. http://dx.doi.org/10.3347/kjp.1984.22.1.11
Copyright © 1984 by The Korean Society for Parasitology


Study on sensory papillae of Metagonimus yokogawai cercaria
Jae Jin Kim,Duk Young Min and Chin-Thack Soh
Department of Parasitology, College of Medicine and Institute of Tropical Medicine, Yonsei University, Korea.


Abstract
A number of studies on the papillae of cercariae of trematodes reported that the papillar patterns (or chaetotaxy) of cercariae might be an excellent method to attain better understanding of the digenetic trematodes (Richard, 1971; Short and Cartrett, 1973; Bayssade-Dufour, 1979). The present study was aimed to determine the number, distribution pattern and structure of the sensory papillae of Metagonimus yokogawai cercariae, and to elucidate the chaetotaxy of this digenetic trematode. M. yokogawai cercariae were pipetted from a vial in which infected snails (Semisulcospira libertica) had been kept for 3 hours. The snails were collected from an endemic area of M. yokogawai, Boseong river in west-southern part of Korea. Observations of papillae were based on light microscopy of those stained with silver nitrate, and on scanning electron microscopy. The results are summarized as follows: All papillae observed were uniciliated. Cilia in anterior tip were shorter than the others in other portions. The body papillae were arranged in essentially symmetrical patterns. Total number of the papillae was 126(63 pairs) in average; anterior tip 40(20 pairs), ventral 20(10 pairs), lateral 42(21 pairs), and caudal 8(4 pairs). The chaetotaxy of M. yokogawai cercaria was; C(I) cycle (3+3C(I)V, 2+2C(I)L, 2+3C(I)D), C(II) cycle(2C(II)V, 1C(II)L, 2C(II)D), C(III) cycle (1+lC(III)V, 1C(III)L), C(IV) cycle (1C(IV)V, 1C(IV)L) in cephalic region: A(I)(lA(I)V, l+2A(I)L, 1A(I)D), A(II)(1A(II)V, 1+3A(II)L, lA(II)D), A(III) {lA(III)V, l+lA(III)L, lA(III)D) and A(IV)(lA(IV)V, 2A(IV)L) in antacetabular region: 1M(I)V and 2M(I)L in median: 1+lP(I)L, 1P(II)L, lP(II)D lP(III)L, lP(IV)L and 1P(IV)D in postacetabular region: 2-2-2-2 in caudal region.

Figures


	Diagram 1 Schematic diagram of various view of M. yokogawai cercaria based on LM and SEM. The vertical distances between each papilla (dot) were measured. VS; ventral sucker(acetabulum) ES; eye spot

Figs. 1-4
Fig. 1. Scanning electron microscope (SEM) of Metagominus yokogawai cercaria. ×320.

Fig. 2. SEM of first caudal sensory papilla of M. yokogawai cercaria. ×9,400.

Fig. 3. SEM of sensory papillae of M. yokogawai cercaria on surface of oral sucker. Sensory papillae with short cilia are seen (arrow). ×5,000.

Fig. 4. Schematic diagram of oral sucker of M. yokogawai cercaria based on SEM. Sensory papillae were dotted. OS; oral sucker

Figs. 5-8
Fig. 5. Ventral view of silver nitrate stained M. yokogawai cercaria by light microscope (LM). Argentophilic sensory papillae (dots) are seen. ×400.

Fig. 6. Ventral view of M. yokogawai cercaria by SEM. Sensory papillae with long cilia are seen. ×1,140.

Fig. 7. Dorsal view of stained M. yokogawai cercaria by LM. Argentophilic sensory papillae (dots) are seen. ×400.

Fig. 8. Dorsal view of M. yokogawai cercaria by SEM. Sensory papillae with long cilia are seen. ×1,600.

Figs. 9-12
Fig. 9. Lateral view of stained M. yokogawai cercaria by LM. Argentophilic sensory papillae (dots) are seen. ×200.

Fig. 10. Lateral view of M. yokogawai cercaria by SEM. Sensory papillae with long cilia are seen. ×960.

Fig. 11. Caudal view of stained M. yokogawai cercaria by LM. Argentophilic sensory papillae (dots) are seen. ×200.

Fig. 12. Caudal view of M. yokogawai cercaria by SEM. Four sensory papillae with cilia (arrow) are seen. ×720.

Tables

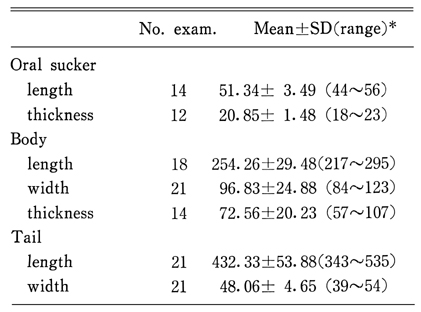

	Table 1 Dimension of mature cercariae of Metagominus yokogawai


	Table 2 Number of papillae on bodies (except the portion of oral sucker) of M. yokogawai cercaria


	Table 3 Chaetotaxy of M. yokogawai cercaria

References


1.	Bayssade-Dufour C. Mem Mus Nat d'His Nat Nou Ser A Zool 1979;113:1–81.

2.	Bayssade-Dufour C, Albaret JL, Kim DC. [Cercarial chaetotaxy of a Korean strain of Clonorchis sinensis. Probable presence of this trematode in Africa]. Ann Parasitol Hum Comp 1982;57(4):361–366.

3.	Blair D. A key to cercariae of British strigeoids (Digenea) for which the life-cycles are known, and notes on the characters used. J Helminthol 1977;51(2):155–166.

4.	Combes C, Jourdane J, Richard J. [Studies on the life-cycle of Euryhelmis squamula (Rudolphi, 1819) a parasite of the shrew Neomys fodiens in the Pyrenees (author's transl)]. Z Parasitenkd 1974;44(1):81–92.

5.	Dixon KE, Mercer EH. The fine structure of the nervous system of the cercaria of the liver fluke, Fasciola hepatica L. J Parasitol 1965;51(6):967–976.

6.	Faust EC. Biol Bull 1919;36(5):315–321.

7.	Faust EC. Biol Bull 1919;36(5):322–339.

8.	Faust EC. Biol Bull 1919;36(5):340–344.

9.	Fujino T, et al. Jap J Parasitol 1976;25(3):175–185.

*10.*	Knos GB, Short RB. Argentophilic papillae of Schistosomatium douthitti cercariae (Trematoda: Schistosomatidae). J Parasitol 1979;65(3):350–356.

*11.*	Kuntz RE. Biology of the schistosome complexes. Am J Trop Med Hyg 1955;4(3):383–413.

*12.*	la Rue GR. The classification of digenetic trematoda: a review and a new system. Exp Parasitol 1957;6(3):306–349.

*13.*	Lie KJ. Studies on Echinostomatidae (Trematoda) in Malaya. 13. Integumentary papillae on six species of Echinostome cercariae. J Parasitol 1966;52(6):1041–1048.

*14.*	Niewiadomska K. Acta Parasitol. Polon 1973;18:277–289.

*15.*	Odening K. Biol Zbl 1973;92(4):455–494.

*16.*	Richard J. Compt Rend Acad Sci Paris 1968;266:371–374.

*17.*	Richard J. Compt Rend Acad Sci Paris 1968;266:1856–1859.

*18.*	Richard J. Mem Mus Nat d'Hist Nat Nou Ser A Zoo 1971;67:1–179.

*19.*	Sakamoto K, Ishii Y. Scanning electron microscope observations on miracidium, cercaria, and cercarial papillar patterns of Schistosoma japonicum. J Parasitol 1978;64(1):59–68.

*20.*	Short RB, Cartrett ML. Argentophilic "papillae" of Schistosoma mansoni cercariae. J Parasitol 1973;59(6):1041–1059.

*21.*	Short RB, Kuntz RE. Patterns of argentophilic papillae of Schistosoma rodhaini and S. mansoni cercariae. J Parasitol 1976;62(3):420–425.

*22.*	Vercamman-Granjean PH. . Ann Parasitol Hum Comp 1951;26(5-6):412–414.

*23.*	Wagner A. Papillae on three species of schistosome cercariae. J Parasitol 1961;47:614–618.
