CRMs were collected from leaves of citrus tree in the citrus orchards near the Jeju City. CRMs were homogenized in a teflon-pestle homogenizer with 20 mM sodium acetate buffer (pH 6.4) followed by centrifuged at 15,000 rpm for 30 min. The resulting supernatants were used as crude extracts. The enzyme activities and inhibitor tests were performed by the modified methods of Lustigman et al. [7]. Briefly, the reaction mixtures was composed of 20-50 µl of CRM enzyme fractions and 10 µl of fluorescent synthetic dipeptide substrate carbobenzoyl-phenylalanyl-arginyl-7-amino-4-methylcoumarin (Cbz-Phe-Arg-AMC, 1 mM) in the presence of 2 mM DTT. The reaction mixtures were then incubated at 37℃ for 1 hr, and CP activity was measured by monitoring the release of fluorescence (excitation at 380 nm, emission at 460 nm) with Versa Fluor fluorometer (Bio-Rad, Hercules, California, USA). The inhibitor tests were done with respective protease inhibitors such as IAA (20 µM), E-64 (10 µM), di-isopropylfluorophosphate (DFP, 2 mM), and EDTA (2 mM).

To purify CP of CRM, the crude extract was loaded onto Mono Q HR 5/5 column previously equilibrated with 20 mM sodium acetate buffer (pH 6.4) using ÄCTA FPLC system (Amersham Pharmacia Biotech, Piscataway, New Jersey, USA). The column was washed with the same buffer and absorbed proteins were gradually eluted with increasing the NaCl molarity up to 1 M. The column was eluted with a flow rate of 0.5ml/min, and each fraction was collected with 0.5 ml. The column fractions which had protease activity were pooled and loaded onto Superdex 200 HR 10/30 gel filtration column equilibrated with 20 mM sodium acetate buffer (pH 6.4) containing 0.1 M NaCl. The column was eluted with the same buffer by flow rate of 0.2 ml/min, and 0.5 ml fractions were collected. The fractions which showed highly proteolytic activity were analyzed by 7.5-15% gradient SDS-PAGE and then, used as a purified enzyme for further study. For estimation of molecular weight of partial purified CP, standard marker proteins were eluted with the same condition mentioned above and the relative molecular weight was calculated by manufacturer's instruction. Standard marker proteins used in this experiment were alcohol dehydrogenase (150 kDa), bovine serum albumin (66 kDa), carbonic anhydrogenase (29 kDa), and cytochrome c oxidase (12.4 kDa).

To observe activities of the CP against macromolecular substrates, the purified CP was incubated with IgG, type I collagen, fibronectin, and egg albumin by some modifications of Kong et al. [8]. Briefly, the reaction mixtures were consisted of 20 µl of purified CP, 10 µl of respective macromolecular substrates (4 mg/ml), and 20 µl of 0.1 M sodium acetate buffer (pH 5.5) in the presence of 2 mM DTT. The reaction mixtures were incubated at 37℃ for 1, 3, 5 hr, overnight, and then, the reaction products were analyzed by 7.5-15% gradient SDS-PAGE.

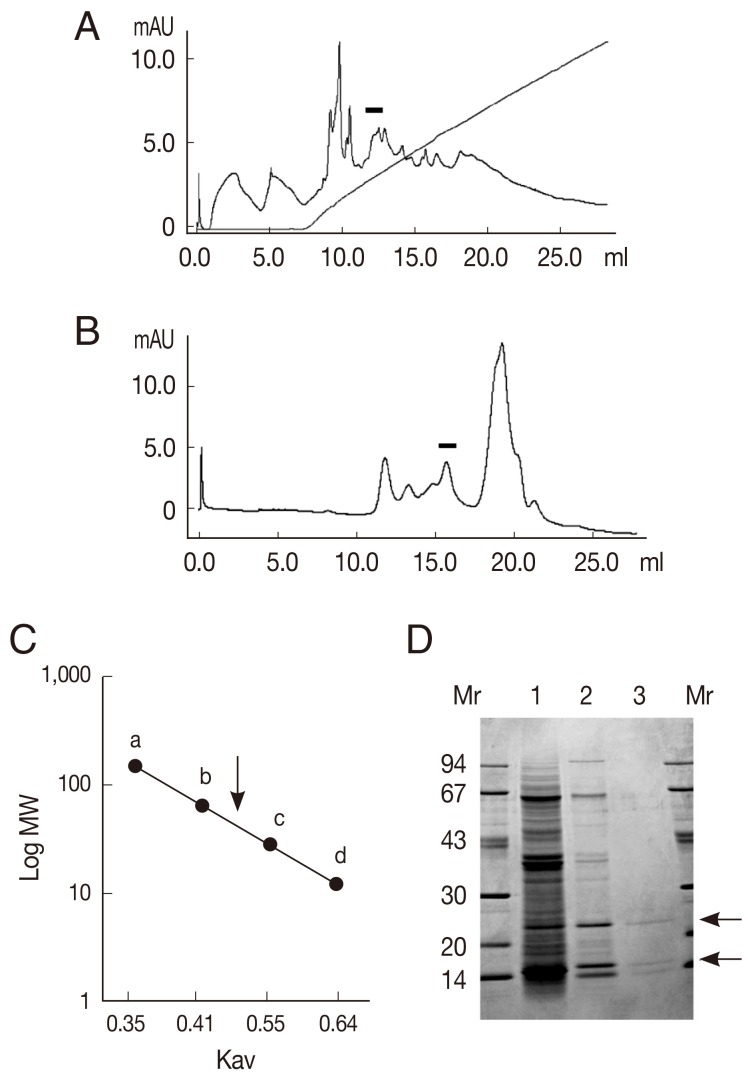

As shown in Fig. 1, the purified protease migrated at 24, 16 kDa, and 10 kDa on 7.5-15% gradient SDS-PAGE (Fig. 1D). Table 1 showed purification procedures of the CRM CP. The native molecular weight of purified protease was estimated to be 46 kDa by Superdex 200 HR gel filtration (Fig. 1C), therefore, it appeared that the purified protease of the CRM was consisted with 2 different molecular weight polypeptides, 24 and 16 kDa, at least. The other 10 kDa polypeptide is probably a contaminated polypeptide during purification procedures. Der p 1, a major allergen of the house dust mite D. pteronyssinus is a cysteine protease with molecular mass of 24 kDa [4]. In this regard, it is possible that the partial purified 24 kDa of CRM CP is a homologous protein band of Der p 1. From this result, further studies of relationship between 24 kDa CRM CP and Der p 1 are required. Other related study of CRM showed that several component protein bands of CRM crude extracts were detected by SDS-PAGE and IgE-immunoblot assay using the patient sera [9]. The reactive IgE-immunoblot assay comprised of 5 component protein bands, that is, 11, 24, 35, 40, and 64 kDa. Among them, 24 and 35 kDa protein bands may be considered as the major allergens because they were bound to IgE in 50% more tested sera [9]. In this experiment, the purified protease had 24 kDa protein bands on 7.5-15% gradient SDS-PAGE (Fig. 1D) and similar molecular weight of 24 kDa protein band except that they used only crude extracts of CRM with 12% SDS-PAGE [9]. Further studies are required whether these 2 protein bands are identical molecules. In addition, Der p 1 is a cysteine protease, and its proteolytic activity contributes to allergenicity [5,10]. In this regard, it is well worth to study the relationship between CP of CRM and allergen of CRM especially the 22 kDa protein band.

In inhibitors study, the activity of the purified protease was totally inhibited by cysteine protease inhibitors such as E-64 and IAA. However, serine or metalloprotease inhibitors including DFP and EDTA did not affect the activity of the enzyme (Table 2). From these results, it is cleared that the purified protease belongs to the cysteine protease family. On the other hand, serine protease activities in crude extracts of CRM were not detected using synthetic peptide substrates for chymotrypsin and trypsin (data not shown).

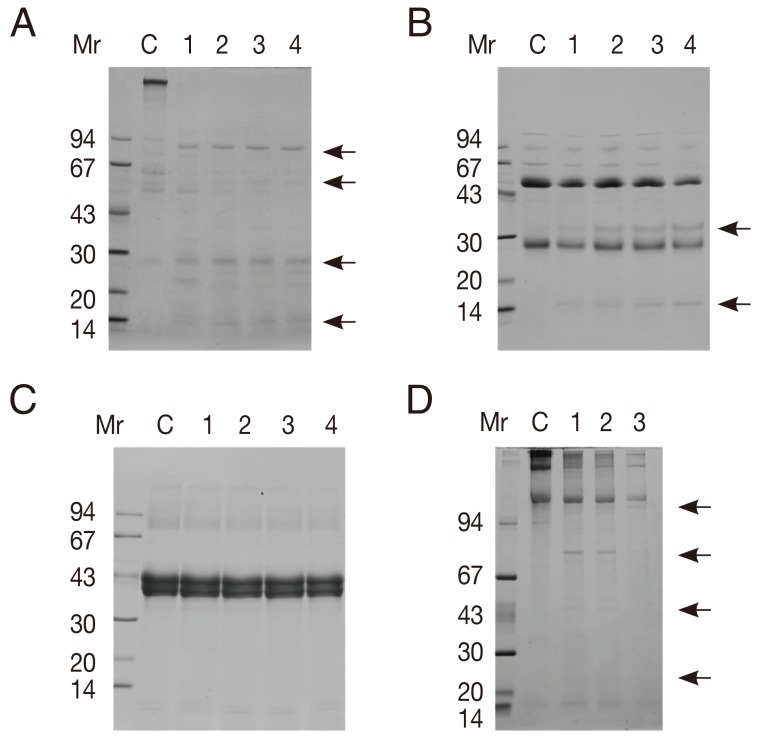

The results of the reactions with macromolecular substrates revealed that the CP could cleave human IgG, collagen, and fibronectin except for egg albumin (Fig. 2). The CP could begin to degradation of IgG, collagen, and fibronectin within 1 hr, and fibronectin and collagens were more vulnerable to a cleavage by the CP. In reaction with IgG, the heavy chain of IgG was more degraded than light chain and was not fully degraded for overnight incubation (Fig. 2B).

Cleavage of egg albumin revealed that the purified CP could not degrade egg albumin (Fig. 2C). These results also indicated that the CP could not use egg albumin as a substrate, and the role of the CP was not involved in digestion and uptake of nutrients at least. The studies of cleavage of CP against various macromolecular substrates provided the possibility of the CP from CRM might influence pathogenesis such as penetration of the host tissues and contact dermatitis of hands of citrus-cultivating farmers. In this study, we have partially purified CP and observed partial properties of CP from CRM. Further researches will be performed to identify the CP as one of the allergenic proteins in CRM infection.
