Paleoparasitology is the study of parasites found in ancient remains and the tracing, on that basis, of the history of host-parasite relationships [1,2]. It began in the early 20th century in Egypt [3], where Sir Marc Armand Ruffer developed a special rehydration technique applicable to mummified tissues and prepared histological slides suitable for their examination [4]. Over the succeeding several decades, paleoparasitology continued to develop all over the world, as experts examined sediments or coprolites obtained from archaeological sites, discovering therein ancient parasite eggs by conventional or molecular techniques. In Korea, such samples are now the focus of interdisciplinary collaboration, most notably between archaeologists and parasitologists seeking to trace and delineate past parasitic infection patterns. Some of the fruits of this labor will be reviewed briefly here.

The first paleoparasitological investigation in Korea was carried out on Ascaris and Trichuris eggs discovered in wetland soil samples obtained in Shinchang-Dong [5]. Although this was not a full-scale survey, it was nonetheless meaningful for being the first study of its kind in Korea. Several years later, another Korean paleoparasitological investigation was conducted, this one on archaeological soil samples dating to the Bronze Age (2000-1000 BC), the Three-Kingdoms Period (100 BC-650 AD), the Unified Silla Dynasty (668-935 AD) and the Joseon Dynasty (1392-1910) [6]. As in the Shinchang-Dong case, nematode (i.e. Ascaris and Trichuris) and trematode (i.e. Clonorchis) eggs were discovered. This study was remarkable, though, for representing the first actual Korean archaeological-parasitological collaboration by which parasitic infection patterns for a different historical era could be revealed [6].

Over time, mummies discovered in tombs dating to the Joseon Dynasty stood out as especially relevant and valuable to paleoparasitology. These tombs in fact had been constructed in significant numbers throughout most of the Korean peninsula, mainly during the latter half of the period (16th-18th century). According to historical texts, they were very strongly built tombs. In fact,

...since lime, sand, and red clay (filled around the coffin) became hardened like a stone after a long while, the coffin could be protected from the possible intrusions of insects or even grave robbers.... [7]

Fortunately enough for archaeologists, these Joseon tombs allowed for superb preservation of the cultural artifacts and human remains they contained, though the exact mechanism of preservation was not fully, and remains imperfectly, understood. The former has proved instrumental in revealing detailed aspects of Joseon society [8]. As for the latter, there have been some exceptionally well preserved Joseon mummies that have yielded particularly valuable evidence to investigators (Fig. 1A).

Coprolites for example, generally shown on computed tomography (CT) images as well-demarcated masses in the intestinal cavity [8], have been collected from Joseon mummies in the course of endoscopic examinations or by direct dissection, and have proved ideal for the broad purposes of paleoparasitological studies in Korea (Fig. 1A, B). In these samples, various ancient parasite species have been found, including Trichuris trichiura and Ascaris lumbricoides [8,9]. These findings, indeed, have begun to paint pictures of parasitic infection patterns prevailing during the Joseon Dynasty.

In the course of sample collection, every effort has been made to minimize false-positivity due to contamination: investigators wore protective gloves, head cap, gown, and mask (Fig. 2A-C), and surface soils from the given archaeological site were always applied as negative controls. As for findings, our own data accumulated over the past several years, and especially our accurate predictions of the presence of parasite eggs in a number of sample sets, indicates a close relationship between the preservation status of certain types of artifacts or remains (e.g., clothes, hair, or brain tissue) and that of ancient parasite eggs discovered in the same tombs [10].

Microscopic examinations of samples (typically rehydrated in 0.5% trisodium phosphate solution) have been the standard investigative modality [11,12]. What has really captured the imagination of scientists, even of archaeologists, over the past several decades, however, is DNA analysis [13,14,15]. DNA studies of ancient parasites including Trypanosoma cruzi, Plasmodium sp., Ascaris sp., T. trichiura, Enterobius vermicularis, and Clonorchis sinensis have been numerously and widely reported [13,16,17,18,19,20,21,22]. Inspired by these successes, our research team has performed ancient DNA (aDNA) analyses on many of the parasite egg specimens we have obtained from Joseon mummies [23,24].

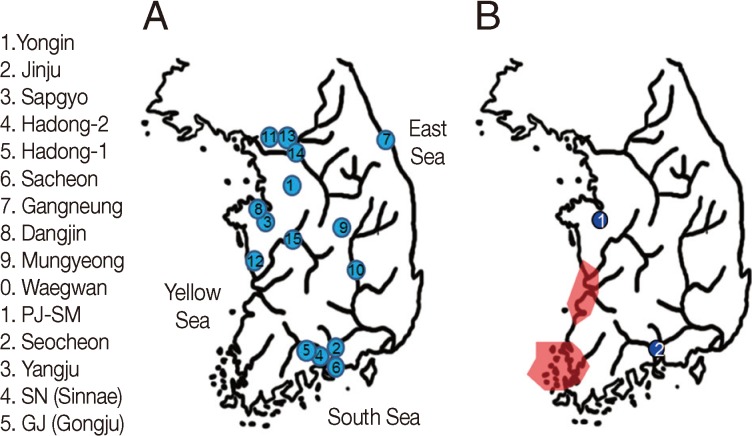

The availability of coprolite samples from Joseon Dynasty mummies has proved very fortunate indeed. Due to their great preservation quality, we were able to collect invaluable data on the patterns of parasitic infections affecting certain Joseon societies (Fig. 6A). The first-ever paleoparasitological study on a Joseon population was based on a child mummy discovered in 2001 (Fig. 2D) in a 16th to 17th century Joseon tomb unearthed in Yangju, Gyonggi-do (Fig. 6A, No. 13). Endoscopy revealed the presence of coprolites, samples of which showed, under scanning electron microscopy (SEM), T. trichiura, A. lumbricoides and C. sinensis eggs still perfectly intact even after several hundreds of years [9,25] (Fig. 3E, F). In another investigation, this one involving a 17th century Joseon tomb unearthed in Gongju (Fig. 6A, No. 15), the sample's preservation was so perfect that even larvae of various species, in addition to eggs, were detected [26].

In the course of our paleoparasitological study series, we have found ancient parasite eggs and larvae representing A. lumbricoides, T. trichiura, C. sinensis, Paragonimus westermani, Metagonimus yokogawai, Gymnophalloides seoi, Strongyloides stercoralis, and Trichostrongylus spp. (Figs. 3,4,5) [8,9,10,26,27,28,29]. These results were summarized in Table 1. These and other, related data have answered many questions concerning historical parasitic infection patterns in Korea. Among our most noteworthy findings was that the infection prevalence of nematode parasites in Joseon samples does not differ so much from those of mid-20th century Korea. In fact, the overall positive rates for A. lumbricoides and T. trichiura in our Joseon data were 50.0% (9/18) and 77.8% (14/18), respectively, compared with 1969 national survey results of 58.2% (A. lumbricoides) and 74.5% (T. trichiura) [30].

Notwithstanding this general consistency with the national survey data of 1969, there were some unique findings represented in our data. The Joseon samples contained some parasite species not readily identifiable, such as E. vermicularis, hookworms, and Taenia spp. To date, there have been only 2 reports of E. vermicularis eggs in archaeological samples: one on Roman latrines, and the other on an Egyptian mummy [31,32]. Ours, then, is the first such report for any East Asian country [33]. In feces remnant in the colon of a female Joseon mummy from Dangjin-gun (Fig. 6A, No. 8), E. vermicularis along with P. westermani and A. lumbricoides eggs were identified under microscopy. Another rare finding from our Joseon samples was human taeniasis. Its infection prevalence among Koreans reportedly was only 1.9% in 1971 [34], and it had not been found in any archaeologically obtained Korean samples other than our 17th century Joseon case [35]. We will need to examine additional samples before we are able to confirm this rarity or, if confirmed, to determine the corresponding infection route it is relatable to the dietary habits of the Joseon people.

In Joseon mummy coprolites we have observed many trematode eggs (Table 1), among which those of C. sinensis eggs have been very common [9,20,27,36]. Considering that C. sinensis infection can be transmitted via ingestion of raw or undercooked freshwater fish harboring the infectious metacercariae [37,38], we speculated that this Korean culinary tradition might in fact have been practiced by pre-20th century Koreans more than that had previously been supposed. Another trematode parasite frequently found in Joseon mummy coprolite samples has been P. westermani [10,26,29,33,39]. These many cases of P. westermani eggs show that this type of infection might not have been rare in Joseon populations. Infected individuals might have ingested crabs or crayfish in a raw or undercooked state, especially considering the fact that freshwater crustaceans are the second intermediate hosts of Paragonimus spp. Among our cases of paragonimiasis, the most impressive and, incidentally, the first-ever archaeological-sample-based case of ectopic paragonimiasis reported anywhere in the world, is a ca 17th century female mummy discovered in 2009 (Fig. 6A, No. 4) [29]. According to the extant historical texts, she was likely to have lived in Hadong sometime between the late 1500s and early 1600s. On microscopic examinations, many Paragonimus eggs were found in the liver, lung, intestinal tissues, and feces (Fig. 5).

Other very interesting findings were G. seoi eggs in the coprolites of another female mummy discovered in Hadong (Fig. 6A, No. 5) [27]. This was a very unexpected and illuminating discovery, as there had been no previous reports of G. seoi eggs anywhere in Hadong-gun (county), the area in which the mummified individual had lived. The first report of G. seoi infection was made in 1993, concerning a Korean woman residing on an island off the southwest coast of Korea; and in fact, a 2001 nationwide survey established that human G. seoi infection was confined to that and other small islands or counties in the southwestern corner of the country [40,41]. In this light, we suspected that G. seoi infection might have contracted from what had been a wider coastal distribution to a much more restricted region of the Korean peninsula [27] (Fig. 6B). This, our contraction theory of G. seoi infection, though convincing to us, required more than just a single mummy case from a non-endemic area to be considered dispositive. Fortunately enough, we did discover, in Sapgyo, a 16th century Joseon mummy (Fig. 6A, No. 3) in which, along with C. sinensis, M. yokogawai, and T. trichiura, G. seoi eggs were evident [39].

In one of our other analyses, this one of ancient Ascaris eggs from another Joseon specimen, we were successful in extracting and sequencing Ascaris aDNA [23]. However, the Ascaris 18S rRNA gene sequence in our study was more similar to A. suum than to A. lumbricoides, though the samples were collected from Joseon human individual remains during anthropological investigations. As in the previous relevant studies, we speculated, therefore, that aDNA analysis of Ascaris is inadequate for confirmation of A. lumbricoides [23,42,43,44]. In our PCR-based aDNA analysis of the T. trichiura SSU rRNA gene, we could obtain a sequence 100% homologous to that of T. trichiura, which is also distinct from that of T. suis (97%) and T. muris (91%) (Table 2) [24].

We have applied aDNA analysis also to the study of trematode eggs, specifically Paragonimus eggs collected from a 17th century Korean female mummy (Fig. 6A, No. 4) [29]. The extracted ITS 2 gene sequence showed 100% homology to those of modern P. westermani DNA reported from Korea and Japan, which collective results constituted a genetic cluster distinct from other South Asian P. westermani. Subsequently, aDNA sequences of C. sinensis were analyzed. Although ancient C. sinensis eggs have frequently been observed in Korean archaeological samples [9,20,27,36], reported analyses of C. sinensis aDNA have been very scarce. In one of our studies on a Joseon mummy, the presence of C. sinensis eggs was confirmed by microscopic observations, and C. sinensis aDNA was successfully extracted. A PCR-based aDNA analysis was then performed using primer sets for nuclear ribosomal internal transcribed spacers 1 (ITS1) and 2 (ITS2), and mitochondrial cytochrome c oxidase 1 (CO1) genes. The obtained sequences, significantly, were 100% homologous to the contemporary C. sinensis gene sequences reported from Korea and other East Asian countries [36] (Table 2).

For the past several years, we have studied Korean mummies and their paleoparasitological samples, which subsequently have been maintained in the Joseon Dynasty Human Remains Collection (JDHRC) of Seoul National University as the fruit of our collaboration with archaeologists. Although our paleoparasitological studies in Korea have provided important information on parasitic infection patterns, we must admit that most of the credit is owed to the discovery of well-preserved Joseon mummies. Our estimations of parasite prevalence, moreover, are based on samples representing relatively limited time, regional, and socio-economic spans. For instance, we should acknowledge that most of the Joseon mummies we have examined were individuals who belonged to the ruling classes of society. According to historians, the unique tombs (Hoegwakmyo tombs) in which Korean mummies have been discovered were designed and constructed exclusively for such people. This means that the mummies are likely to have been landowners, scholars, or courtiers [45]. In a sense then, the coprolites of Korean mummies have helped to reveal the parasitic infection status not so much of a certain Joseon society in general but rather of the highest social strata of that society. In future studies, therefore, our scope will be extended to types of paleoparasitological samples other than those from Korean mummies. A great deal of data from various origins will likely prove fertile soil for the development of comprehensive theories on past parasitic infection patterns.

Many questions and issues remain, the answering and resolving of which will occupy current work and guide subsequent future research. In our upcoming studies, we must try to find some types of helminth eggs that heretofore have not been considered. As already explained, some parasite species, with very few exceptions, have not been found in coprolite samples from Joseon mummies, despite their high reported prevalence in recent national survey reports. Examples of these are E. vermicularis, hookworms, and Taenia. As for protozoan cysts, those of Entamoeba histolytica or Giardia lamblia have gone undiscovered as well. Many intensive and detailed studies are still needed in order to identify certain parasite eggs, larvae, cysts, and oocysts rarely discovered in previous studies.

Also, whereas our previous aDNA studies served to confirm the academic significance of combining PCR-based molecular data with microscopic findings on ancient parasite eggs, such analysis will have to be extended to much deeper levels of inquiry and detail. We admit, for example, that aDNA study focusing more on phylogenetic analysis of ancient parasites over wider geographical and temporal ranges is required in order to broaden our understanding of the genetic differences among specific parasite species [46].

In conclusion, paleoparasitology is now on the advance, and growing as a field worldwide. Expanding cooperation among parasitologists, archaeologists and, more recently, palaeontologists, provides the comprehensive context in which the parasitic infection patterns of the past and, thereby, the origins and evolution of infectious diseases worldwide, can be fully understood. In Korea, paleoparasitological approaches to the study of archaeological samples are really just beginning. Even so, we expect that our forthcoming analyses finally will move even closer to the goal of revealing the parasitological infection patterns of Joseon society. Indeed, interpreting our data outcomes from the global parasitological perspectives will help to reconstruct a history of pre-modern parasitic infections for the entire Asian continent.
