Employing ELISAs as a means of examining archaeological materials for evidence of protozoan parasites has become increasingly more routine among archaeoparasitological researchers [1–15]. Much of the existing work has focused on the recovery of protozoan parasite antigens from latrine sediments [4,9–11,13,14]. In addition to sediments, Gonçalves et al. [4] examined 22 coprolites from Brazil, Chile, and Sudan using an ELISA kit for detecting Entamoeba histolytica coproantigens and did not find any positive samples. Allison et al. [1] used ELISAs to test coprolites from the intestinal tracts of mummies for Cryptosporidium sp. and Giardia sp. antigens. Another study tested coprolites for Giardia duodenalis antigens and found 4/84 to be positive [2]. Recently, Morrow and Reinhard [15] recovered Cryptosporidium parvum coproantigens from 66/90 coprolites excavated from a cave in Durango, Mexico.

Quids, which are expectorated masses of human-masticated plant fibers, are desiccated artifacts commonly found at New World archaeological sites. These artifacts are frequently overlooked despite their potential importance in the interpretation of ancient diets and diseases. Quid analyses have involved plant fiber identification, dental impressions, and phytolith recovery [16–19]. Such studies have examined the role of quid chewing in the development of dental wear among archaeological populations. Hammerl and colleagues [19] were also able to use dental impressions of quids to recover demographic (age) data. The quids were all phytolith-rich and most were derived from Agave plant fibers, although maize leaves and husks were also identified among some of the quids [19]. The phytoliths of Agave are quite abrasive, capable of inflicting damage to substances as resilient as tooth enamel [18]. Because these phytoliths, along with those of other dietary abrasives recovered from coprolites and quids [18,20], are able to cause dental wear, it is likely that they may have also created microlacerations within the soft tissues of the mouth. Such microlacerations would have caused minor bleeding, releasing a flood of biomolecules into the mouth as a quid bolus was formed. This creates the potential for such biomolecules to become integrated within the quid bolus prior to expectoration. Salivary antibodies, such as secretory IgA (sIgA), would have become similarly integrated into the quid bolus.

A few studies have employed ELISA tests for the purposes of diagnosing parasitic infections using modern saliva [22,23]. The recovery of species-specific parasite-induced antibodies from human saliva in modern contexts begs the question: Can these antibodies be recovered from archaeological materials saturated with desiccated human saliva? To answer this question, one first must contemplate the preservation potential of such antibodies. While parasite-specific coproantigens have been demonstrated to preserve within archaeological materials like coprolites and latrine sediments, the recovery of human-created parasite-specific antibodies from archaeological materials has not been attempted to date. Thus, the preservation and degradation of antibodies from an archaeological perspective have not been fully explored. However, researchers working with modern samples have reported long-term stability of salivary biomolecules [24,25]. Therefore, the potential persistence of parasite-induced human immunoglobulins is conceptually plausible. An ideal archaeological potential source material for salivary immunoglobulins is the often-ignored quid. With the capability to incorporate antibodies from the saliva as well as from blood released via microlacerations in the oral cavity caused by phytoliths, these artifacts provide a mechanism for assessing archaeological parasitism in a unique way. To date, no previous studies have employed ELISA techniques for examining quids. The present study represents the first effort to analyze quids (n=45) for the presence of 2 species of protozoan parasites (Toxoplasma gondii and Trypanosoma cruzi).

The quids used in the present study were excavated from La Cueva de los Muertos Chiquitos (CMC), a site within the Rio Zape Valley, in the early 1960s. This valley lies approximately 18 km southeast of Guanaceví in Durango, Mexico, and is home to a number of caves utilized by the Loma San Gabriel. The region illustrates a cultural transition zone between the northern most edge of Mesoamerica and the greater American Southwest [26–28]. CMC was used year-round as a temporary habitation by the Loma San Gabriel between 1,200 and 1,400 years ago [29,30]. This cave housed an abundance of botanical artifacts, the skeletons of 14 children (aged several months to 5 years at the time of death) as well as some adult bone fragments, nearly 500 coprolites, and over 2,000 quids all sealed beneath adobe floors [28,29,31,32]. The people who utilized CMC subsisted using a mixed strategy of agricultural production and hunting-gathering, both of which fluctuated seasonally [29,33]. Previous analyses of coprolites reported excellent preservation of parasitic helminth eggs [34], bacterial DNA [35], and parasite coproantigens [15]. The incredible preservation of both physical and molecular parasite evidence makes this site ideal for testing new methods of parasite evidence recovery utilizing quids as source materials.

Previous studies of material from CMC have shown that those utilizing the cave had living and nutritional behavior patterns that likely perpetuated the life cycles of certain parasites [15,33,36]. As these people modified their environments to survive, they may have inadvertently promoted the transmission of many different types of parasites, including T. cruzi and T. gondii. Evidence of T. cruzi has been recovered from archaeological materials in North and South America [37–44]. The sylvatic cycle of T. cruzi involves a triatomine bug that serves as a vector for the parasite and a mammalian definitive host. About 180 species of mammals, including bats, carnivores, rodents, ungulates, and primates, have been identified as reservoir hosts for T. cruzi. Domestic cycles of T. cruzi are perpetuated in human populations via vectored transmission and via oral transmission of contaminated foods [45].

From an archaeological perspective, this parasite is particularly interesting because prehistoric humans of the Southwestern USA and Mesoamerica inserted themselves into the T. cruzi life cycle as they changed their environments to better suit their survival needs. Reinhard and Araújo [44] discuss the phenomenon of anthropogenic changes to natural habitats that led to an increase in vector populations. Simultaneously, humans induced population decline in reservoir hosts via woodrat hunting and habitat displacement, which caused the vectors to come in contact with human hosts more frequently than in the past [46]. These behaviors placed humans at risk for contracting zoonotic trypanosomiasis that eventually became the American trypanosomiasis (Chagas’ disease) that infects an estimated 10 million people today [47]. The origins of T. cruzi can be traced back more than 9,000 years in the New World. Analyses of material from mummies place the establishment of this parasite in the Americas long before European contact [39,41,48–50]. Guhl and colleagues [51] explored the links between Chagas disease and human migration.

Artifacts from CMC have not previously been tested for evidence of T. cruzi; however, dietary evidence of small rodent consumption at this site supports the hypothesis that this parasite may have been cycling among the Loma San Gabriel at CMC in prehistory. The majority of evidence regarding T. cruzi from archaeological contexts has been collected using molecular techniques that involve the recovery of DNA [52,53]. One study demonstrated that T. cruzi DNA could be recovered from experimentally desiccated mouse tissues [54]. To date, ELISA techniques have not been applied to archaeological materials to recover evidence of T. cruzi. Because commercial ELISA kits for T. cruzi are designed to test human serum rather than fecal samples, there has not been a practical way of utilizing this technique in the search for Chagas’ disease in prehistory. Pinho and colleagues [23] demonstrated that T. cruzi antibodies could be recovered from modern saliva using ELISA kits. If these antibodies survive following desiccation, there is the potential that ELISA kits could prove to be useful for the recovery of T. cruzi evidence from saliva-contaminated artifacts, such as the quids excavated from CMC. If the use of ELISA techniques in this regard is successful, the archaeoparasitological community could enjoy a new rapid, reliable, and cost-effective method for recovering evidence of T. cruzi from archaeological quids.

The origins of toxoplasmosis among humans have been more elusive than those of American trypanosomiasis. The genus Toxoplasma is approximately 10 million years old, with Toxoplasma gondii originating sometime in the last 10,000 years [55]. Today, about a third of the global human population is infected with this parasite [56]. In the United States, this parasite is responsible for over 300 deaths and 4,000 hospitalizations annually. In fact, it has been deemed the second most important foodborne pathogen in the nation [57]. Within the state of Durango, Mexico, modern rural populations have approximately 35.8% seroprevalence for T. gondii [58]. Alvarado-Esquivel and colleagues [59] conducted a modern seroepidemiological study and reported 30.3% seropositivity within a Mennonite community in a rural region of Durango, Mexico, as compared to 6.1–12% seropositivity in populations residing within Durango City, Durango, Mexico.

It is not unreasonable to think that people living near CMC may have been infected with T. gondii. Though no clinical cases of toxoplasmosis have been reported from bats, there have been reports describing the isolation of T. gondii from 2 species of bats (Vespertilio pipistrellus and Nyctalus noctula) in the USSR [60]. T. gondii is also maintained in a wide variety of wild animal populations, including rodents, carnivores, and lagomorphs [61–63]. This means that at least one type of reservoir host may have come into contact with people living near CMC. Congenital toxoplasmosis within humans may cause spontaneous abortions or fetal abnormalities. In modern cases of toxoplasmosis among healthy children, symptoms are few and most often fleeting. Children with weaken immune systems who contract toxoplasmosis are at risk for more serious neurological symptoms that may cause long-term damage. The cause of death among the children buried at CMC is not clear, but coprolite analyses show that children using CMC were likely malnourished and played hosts to a variety of parasites [15,34,35]. The high probability that the people occupying CMC were exposed to reservoir host species coupled with the majority of skeletons from this site being those of children make this site an excellent place to look for prehistoric toxoplasmosis.

Terra and colleagues [64] demonstrated through experimental desiccation of infected mice that PCR was effective in the recovery of T. gondii DNA; however, to date, there has been no archaeological evidence of this parasite recovered from any context. As is the case with T. cruzi, ELISA kits have been developed to test modern human serum for T. gondii antibodies rather than for parasite coproantigens in fecal samples. This makes such kits inefficient for recovering T. gondii evidence from coprolites. Fortunately, Hajeer and colleagues [22] found that T. gondii antibodies were detectible in modern saliva using ELISA kits developed for testing human serum. As with the theory presented for the recovery of T. cruzi evidence utilizing CMC quids, we predict that T. gondii evidence could be recovered using ELISA kits to test reconstituted quids. Despite the lack of evidence regarding prehistoric, New World toxoplasmosis, it is possible that those utilizing CMC may have contracted T. gondii. This parasite is known to infect a wide range of endothermic vertebrate hosts, including bats, rodents, and carnivores that may have come into contact with the Loma San Gabriel who were utilizing CMC. These individuals had close relationships with their companion canines, which could have been reservoirs for toxoplasmosis, and ate small rodents, rabbits, and other potential reservoir hosts that lived in the region surrounding the cave. Little is known about the paleoepidemiology of this parasite. If human antibodies created in response to T. gondii 1,300 years ago are capable of surviving and being detected using a commercially available ELISA kit, archaeoparasitologists would have a new means of tracing the origins of human toxoplasmosis in the New World.

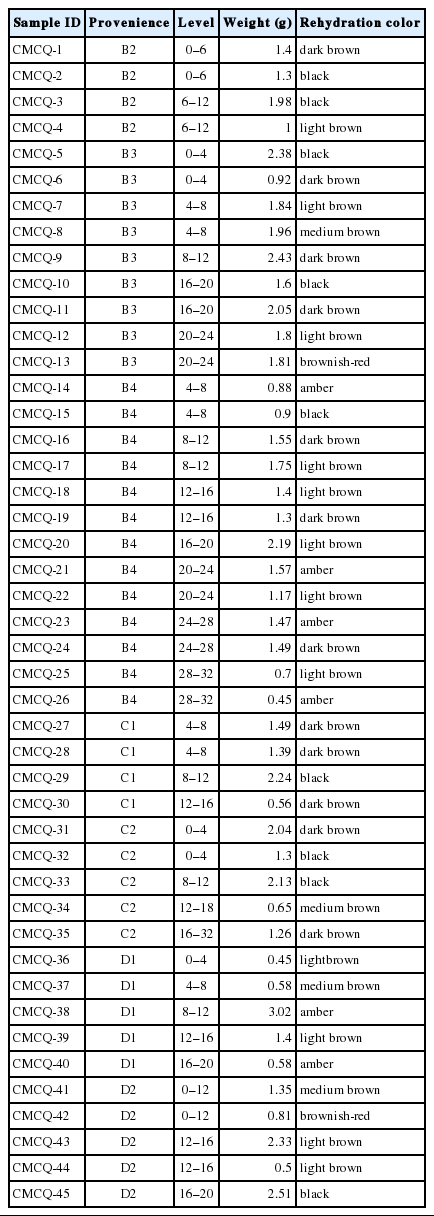

The 45 CMC quids used for the present study were gathered from the collection of over 2,000 quids housed within the Pathoecology Laboratory in the School of Natural Resources at the University of Nebraska-Lincoln (Fig. 1; Table 1). To prevent modern contamination of material, nitrile gloves were worn throughout processing. A total of 45 quids were given a laboratory identification number (CMCQ-#) for analysis and photographed using a Sony Cybershot 18.2 megapixel camera. Each of the quids was analyzed using an Olympus stereoscopic microscope and designated as being comprised of either Agave or non-Agave fibers. Other macrofossils, such as cordage and charcoal were also noted.

The quids were rehydrated in their entirety within a plastic, conical, 50 ml centrifuge tube containing a 0.5% trisodium phosphate solution. Samples were rehydrated for 24 hr before rehydration colors were recorded (Table 1). Following rehydration, the quids were disaggregated using a novel “shake and break” method. This method begins with vigorously shaking the capped centrifuge tube before vortexing the tube for a few seconds. Next, the material within the tube was poured through a 250 μm mesh screen over a glass beaker. The tube was rinsed with a jet of distilled H₂O. Subsequently, sterile forceps were used in conjunction with a sterile spatulette to gently break apart the softened quids taking care to free as much of the non-fiber matrix of the quids as possible. Another jet of distilled H₂O was applied before removing the fibers/macroscopic remains (items larger than 250 μm) on top of the screens to filter paper for drying. Microscopic remains (those smaller than 250 μm) were collected back into the centrifuge tubes and centrifuged to create the pellets used for ELISA testing.

Aliquots of processed quid material were assayed for human antibodies created in response to T. gondii and T. cruzi infections using commercially available antibody detection kits. ELISA kits were purchased from 2 suppliers: Sigma-Aldrich® (St. Louis, Missouri, USA) and Immuno-Biological Laboratories, Inc. [IBL-America] (Minneapolis, Minnesota, USA). The Toxoplasma IgA ELISA from Sigma-Aldrich® uses wells coated with a purified Toxoplasma antigen to bind with any Toxoplasma IgA specific antibodies present within a sample. Unbound materials are then washed away prior to the addition of an enzyme conjugate that binds to existing antibody-antigen complexes when present. An incubation step allows for oxidation of the substrate by the enzyme which invokes a color change in positive sample wells. The intensity of the color change is proportional to the amount of IgA specific antibody present within the sample (www.sigma-aldrich.com).

The Chagas (T. cruzi) IgG ELISA from Immuno-Biological Laboratories, Inc. [IBL-America] uses microtiter strip wells pre-coated with Trypanosoma cruzi antigens to bind human IgG-class antibodies produced in response to T. cruzi infections. Samples are incubated to allow antigen-antibody complexes to form before washing procedures remove unbound materials from the sample wells. Next, a horseradish peroxidase (HRP) labelled Protein A conjugate is added to bind any antigen-antibody complexes present within the samples. The resultant immune complex that is formed is then visualized following the addition of tetramethylbenzidine (TMB) substrate. The intensity of the color change is proportional to the amount of T. cruzi-specific IgG antibodies present within the samples. This kit has a specificity of 99% and a sensitivity of 99% (www.ibl-america.com).

Quid samples were subjected to ELISA testing for T. gondii and T. cruzi evidence at the Zera Lab within the School of Biological Sciences at the University of Nebraska-Lincoln. Samples were tested in duplicate along with controls provided by the manufacturers following manufacturer instructions. A visual inspection was conducted following the addition of each kit’s stop solution and optical density (OD) values were collected with the aid of an Omega ELISA plate reader (Tables 2, 3).

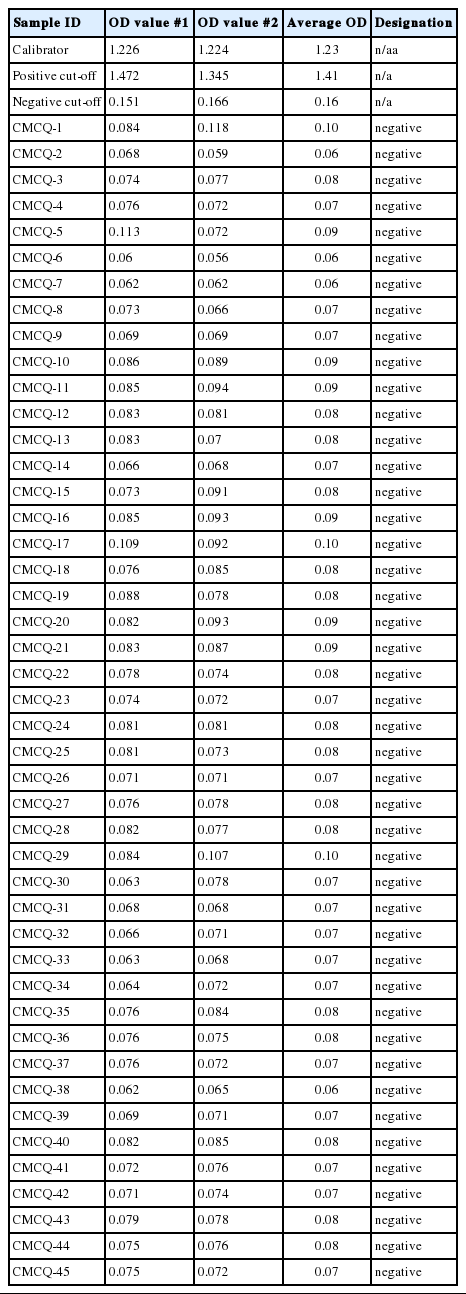

The OD readings were used to determine the presence or absence of each parasite using the interpretational procedures outlined for each kit by the manufacturers (Tables 2, 3). For the Toxoplasma IgA ELISA, the kit-specific Calibration Factor was multiplied by the OD value for the calibrator provided (must be greater than 0.250 to be considered valid) to determine the cut-off value. The Ab (antibody) Index was then calculated by dividing the OD value of the provided positive control by the cut-off value. The Ab Index was similarly calculated for the provided negative control and for each quid sample. Samples with an Ab Index less than 0.9 were designated as being negative while samples with an Ab Index greater than 1.2 were deemed to be considered positive. Samples with Ab Indices between 0.9 and 1.2 were considered borderline positive and would require follow-up testing for validation (Table 2).

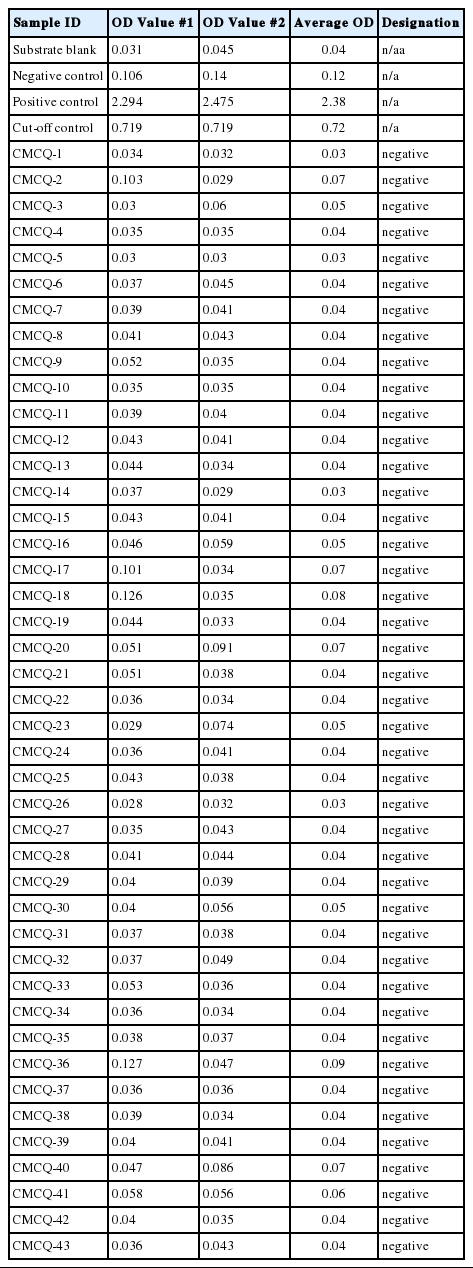

The cut-off value for the Chagas (T. cruzi) IgG ELISA was calculated by taking the average of the OD values for the cut-off control wells. Substrate blank-corrected sample OD values less than the cut-off were considered negative, while values greater than the cut-off were considered positive. For the assay to be considered valid, cut-off values had to range between 0.150 and 1.30 prior to blank correction (Table 3).

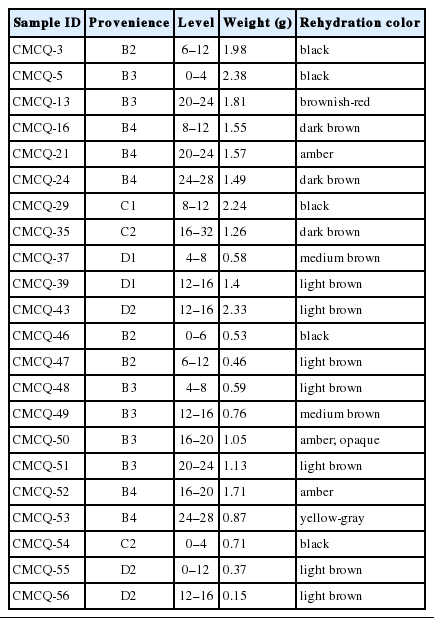

Following these analyses, it became apparent that further method development would be necessary to validate interpretations. To facilitate this, sIgA ELISA test kit from Eagle Biosciences, Inc. was utilized. A total of 11 CMC quids processed for the tests described above were chosen to represent many different proveniences and depths (CMCQ#s: 3, 5, 13, 16, 24, 29, 35, 37, 39, and 43). Additionally, 11 previously unprocessed quids were selected from the CMC collection held within the Pathoecology Laboratory at UNL’s School of Natural Resources. These quids were weighed, photographed, rehydrated in 0.5% trisodium phosphate, and further processed as previously described (Table 4).

Aliquots from each of these 22 samples were transferred into pre-labeled microcentrifuge tubes. A second aliquot of precisely 10 μl from each sample was placed into microcentrifuge tubes along with 990 μl of wash buffer to test whether or not dilution of samples made a difference in the recovery of antibodies using these techniques. All samples were run in duplicate for both their diluted and undiluted varieties (Tables 5–7).

The sIgA ELISA from Eagle Biosciences, Inc. uses a pre-coated microtiter plate to bind sIgA within samples, standards, and controls. After an initial wash, a peroxidase-labeled detection antibody is added, which binds to the antibody complex. A second wash is performed before adding a substrate, which is converted by the peroxidase to result in a colored product. The addition of an acidic stop solution terminates this reaction and optical densities are read at 450 nm. The optical densities are then used to calculate sIgA concentrations with the help of a standard curve (www.eaglebio.com). For the purposes of this study, sIgA concentrations were not calculated as a simple presence/absence test was all that was needed to test the methods.

Visual inspection of the ELISA plates was conducted prior to the collection of OD values via the ELISA plate reader. Positive/negative assessments were recorded on the basis of a visual color change and later compared to sample designations using OD values. All sample wells across both test kits were considered negative via visual inspection.

Data collected via the ELISA plate reader also yielded negative results for both test kits. The OD values from these analyses were recorded and samples were designated positive/negative according to cut-off value calculations using manufacturers’ interpretational protocols (Tables 2, 3).

Visual inspection designations were in 100% agreement with sample designations determined using OD values. All controls used in both kits yielded OD values within acceptable ranges for considering the kits valid according to manufacturers’ specifications.

A visual inspection of the sIgA ELISA wells produced 2 positive test wells from CMCQ-35 and CMCQ-49 (both diluted). However, the duplicates of both wells were visually negative. Upon examination of OD values, only CMCQ-35 remained positive, again with its duplicate well being negative. Because duplicate wells for both samples were not consistently positive and because average OD values led to negative designations for both samples, these were considered anomalies rather than true positive results.

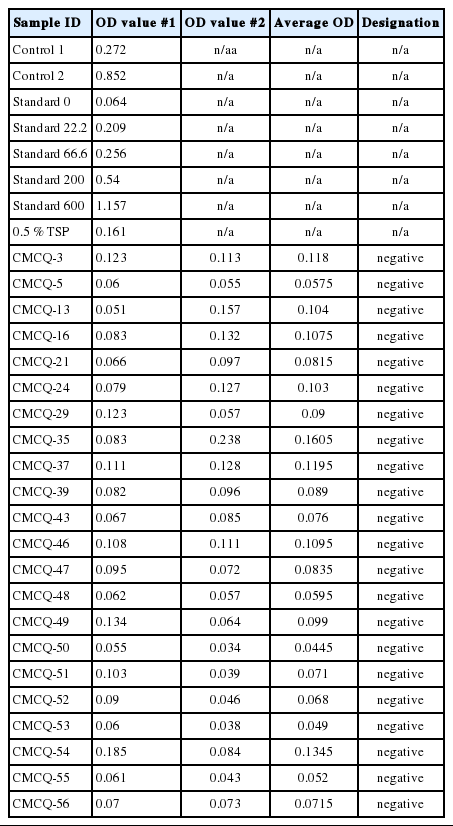

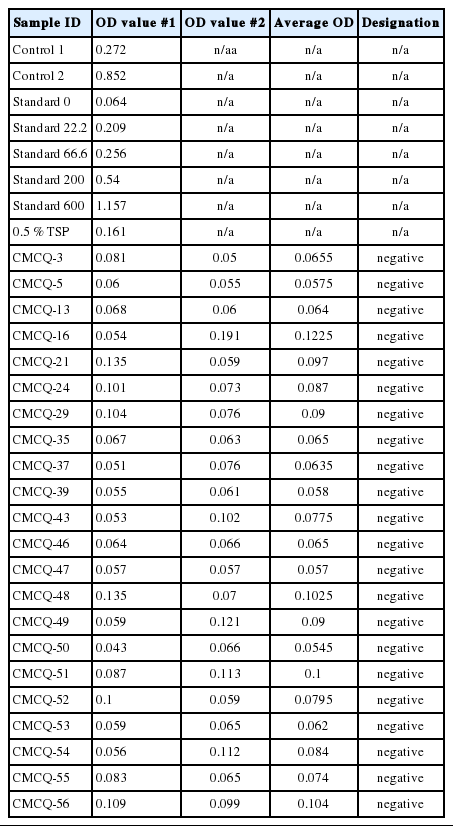

Because the sIgA ELISA kit used was developed for determining concentration levels of sIgA in modern samples and not for determining presence/absence of sIgA in archaeological samples, positive/negative determinations were reached as follows. The OD value for 0.5% trisodium phosphate (0.161) was subtracted from each sample OD value (i.e. the OD value for the rehydration solution was used as a blank). Blank-corrected OD values were then compared to the OD values acquired for the kit-provided standards. None of the OD values were close to the higher ng/μl standards (i.e. the 200 ng/μl standard and the 600 ng/μl standard), so OD values were instead compared to the OD values for the 22.2 ng/μl standard and the 0 ng/μl standard. Blank-corrected OD values greater than the OD value for the 0 ng/μl standard (0.064) were considered potentially positive. Average OD values calculated rom sample duplicates were also compared to the OD value for the 0 ng/μl standard (0.064) and the entire quid was considered potentially positive if greater than 0.064. Similar comparisons were made using the OD values for the 22.2 ng/μl standard (0.209). Samples with OD values and OD value averages greater than 0.209 were considered positive for trace amounts of sIgA. Only a single test well (CMCQ-35--diluted) was deemed potentially positive in this way. However, since the duplicate for this well was negative and the average OD value for this quid yielded a negative designation, this was not found to be significant and was likely a false positive as a result of an error in processing. All other sample wells were found to be negative when compared to OD readings for the standards.

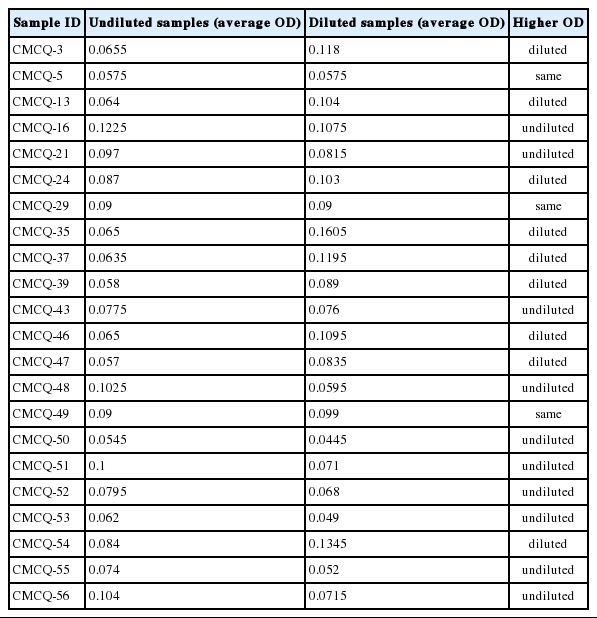

The average OD values for each sample in their diluted and undiluted forms were compared. Out of the 22 samples tested, 3 produced the same OD value whether or not they were diluted. A total of 9 samples yielded higher OD values for diluted samples while a total of 10 samples yielded higher OD values for undiluted samples (Table 7).

While other studies have successfully employed ELISA techniques for recovering parasite evidence from latrine and burial sediments [3,4,10] as well as coprolites [2,14,15], none have successfully recovered parasite antigens or parasite-induced antibodies from quids. Although the present study was not successful in the recovery of parasite-induced antibodies from CMC quids, the study represents the first attempt to use quids as a source material for archaeoparasitological investigations.

There are several reasons why this study’s attempt at the recovery of parasite evidence from quids may have failed. Despite the recovery of T. gondii and T. cruzi antibodies from modern saliva, it is important to note that ELISA kits available for T. gondii and T. cruzi are marketed for use with human serum. Furthermore, these kits are marketed for modern material and not for reconstituted archaeological material, which could compromise the abilities of the kits to actually detect ancient antibodies. This has not been a problem for the recovery of parasite coproantigens out of archaeological materials, but antibodies may degrade differently than do coproantigens. The negative results of the subsequent sIgA ELISA tests support this. Antibodies are much more structurally complex and heavier than antigens. These molecules weigh about 150 kDa as compared to the average antigen weighing in at around 14 kDa. The smaller size and relative structural simplicity of antigens make them less likely to degrade in ways that would render ELISA testing inefficient. It is unknown whether or not plant products, such as those made by Agave and other types of botanicals found in quids, have an adverse effect on the preservation of antibodies and antigens. If so, such products could also contribute to antibody degradation, which further complicates the ELISA testing of quids. The archaeological context, structural components of antibodies/antigens, anthropogenic behaviors regarding quid chewing, and ecological interactions of plants with target antibodies/antigens may all contribute to the taphonomy of immunological parasite evidence in much the same way that similar factors contribute to the degradation of physical parasite eggs within archaeological contexts as described by Morrow and colleagues [65]. Even so, the taphonomic impacts of archaeological antibody/antigen recovery have not been thoroughly assessed at the present time. Future examinations of antibody degradation resulting from desiccation could elucidate the nature of human antibody taphonomy and its implications on archaeoparasitological recovery techniques.

Alternatively, the capabilities of the ELISA test kits utilized in the present study could be sound for the recovery of archaeological antibodies given the proper quid processing methods. Without precedent in the existing literature, quid processing methods were developed by modifying coprolite processing techniques deemed successful for the recovery of parasite coproantigens [15]. Further refinement of quid processing methods could provide avenues for the successful recovery of parasite evidence utilizing ELISA kits.

Finally, the results of these analyses could have been negative simply because the individuals who created the CMC quids were not infected with T. gondii or T. cruzi. The pathoecological potential of parasitism does not always reflect true parasitism within a given population. The individuals utilizing CMC could have circumvented entry into zoonotic cycles of these parasites by avoiding transmission pathways. Transmission pathway avoidance could have been a result of cultural behaviors that limited infection risks. The coprolites of these individuals contained large quantities of dietary fiber [18,20], which may reflect a greater reliance on plant foodstuffs than on wild game. Although these people were known to ingest rodents, perhaps the animals they were consuming were not serving as reservoir hosts for either of these parasites around CMC at that time.

Despite the lack of positive results, the employment of ELISA for the recovery of parasite evidence using quids as source materials remains a plausible concept. Future ELISA tests of quids should target parasite antigens as opposed to parasite-induced human antibodies, though currently, few such tests have been developed for samples of non-fecal origin. Future researchers should approach this concept by modifying processing methods, experimenting with different epitope targets and brands of ELISA kits, and performing methodological experiments using artificially-created quids known to contain target antibodies. Such experimentation could provide the foundational data needed to develop reliable techniques for recovering parasite evidence from quids.

The development of successful methods for the archaeoparasitological analysis of quids would open new venues of research regarding ancient parasitism. Potentially, parasites that do not leave behind traceable coproantigens, such as T. gondii and T. cruzi, could be detected via residual salivary products present in artifacts like quids. As researchers move forward with the analysis of quids, it is important to consider the limitations of ELISA testing. Such limitations include taphonomic degradation of target antibodies/antigens within quids, cross-reactivity potential with other parasites, and the presence of bacteria or fungi that may compromise test validity. To address these limitations, processing methods should be designed to inflict little damage to potential antibodies/antigens, only kits that are highly specific/sensitive should be employed, and samples should be tested quickly after being reconstituted before bacterial and fungi are able to colonize samples. It is also vital that future researchers acknowledge that archaeoparasitological data do not reflect actual infection rates in past populations with 100% accuracy. Nonetheless, immunological testing of archaeological samples provides valuable tools for estimating the parasite burdens among peoples of the past. Our ability to more accurately assess protozoan parasitism of the past has improved with the progression of technology and will continue to be refined as new archaeoparasitological immunodiagnostic techniques become available.
