INTRODUCTION
Pediculosis capitis (head lice infestation) is the most common type of pediculosis [1], an ectoparasitic disease in humans [2]. It is caused by the infestation of head lice (Pediculus humanus capitis) [3], a 6-legged, blood sucking, wingless insect that thrives on human scalp [4] (Fig. 1). Head lice are common among children aged 3–11 years, which can be transmitted through either direct (head-to-head) contact with the infested person or indirectly through personal items, such as combs, hats, scarfs, beddings and towels [5]. Pediculosis capitis presents a public health problem [6] as it can cause social stigma, embarrassment, low self-esteem, loss of productivity, and frustration among afflicted individuals [7]. It is not generally associated with morbidity [7] and is not currently considered to be vectors for human pathogens [8], but secondary bacterial infections may occur as a result of subsequent skin excoriation due to sensitization to louse saliva [6].
A number of both over-the-counter and prescription formulations are available for the treatment of pediculosis capitis. These includes permethrin, pyrethrin, malathion, and lindane. However, their use to control pediculosis globally has been hampered due to the growing issues concerning the aforementioned treatments [7]. There have been records of resistance in many parts of the world due to a large treatment selection pressure induced by conventional pediculicides. Resistance contributes to treatment failures, which may result in chronic infestations [9]. In addition, these chemicals are neurotoxic [10] and cause pruritus, erythema, and edema [11]. With the associated treatment failures, drug resistance, and side effects of the currently available pediculicides, the search for safe and effective alternative pediculicidal agents are comprehensively conducted.
In the Philippines, the burden of pediculosis capitis among schoolchildren was considered high at 54.7% during 1986 [12]. The disease burden increased significantly to 84% in the year 2000, and in 2012, it was named as the second highest medical problem among schoolchildren after tooth decay [13]. At the present time, the growing problem on pediculosis capitis still persists. In this aspect, communities have resorted to formulate their own pediculicidal treatment to resolve the high prevalence of the disease. Community-based pediculicidal ointment formulation was documented by the Philippine Institute of Traditional and Alternative Health Care (PITAHC) utilizing common household items and the extract of Tinospora crispa stem as the active constituent [14]. The selection of T. crispa may be attributed to its wide distribution throughout the Philippines [15] and its traditional use as an anti-parasitic agent on humans and domestic animals [16].
The aim of this work was to evaluate the safety and efficacy of the community-based ointment preparation containing T. crispa extract against head lice, and characterize its physicochemical properties.
MATERIALS AND METHODS
Plant sample
Fresh T. crispa stems were collected from the town of Alabat, in the province of Quezon, Philippines. The plant was identified to be T. crispa by the National Museum of the Philippines - Botany Division and was given a voucher specimen no. 16-04-352.
Preparation of T. crispa ointment
The fresh stems of T. crispa were garbled and washed with water to remove any clinging dirt and insect debris. The preparation of the ointment followed a community-based formula [14]. The stems were chopped into small pieces. In a pot, a cup of the chopped stems, together with a cup of palm oil, were boiled for 15 min for the extraction of active constituents from the stem. The oil extract was then filtered, and 1 white, unscented, pulverized candle (diameter–1 cm; length-14.5 cm) was incorporated to the oil extract through continuous stirring under the temperature range of 50–60°C. It was then transferred on opaque ointment jars, after the candle has completely melted.
Characterization of T. crispa ointment
The T. crispa ointment was subjected to physicochemical tests of homogeneity, color, odor and pH. Spreadability measurement was performed using the “slip” and “drag” characteristics of the ointment [17]. Rheological behavior was determined using Brookfield Viscometer (Spindle – LV3) at 25°C.
Experimental animals
Adult healthy albino rabbits of both sexes (8–10 weeks old; 1.5–2.0 kg) were procured from the St. Luke’s Medical Center, Research & Biotechnology Division (Quezon City, Philippines). The rabbits were housed individually at the animal facility of the National Institutes of Health, maintained in a controlled room temperature (23–25°C) under 12 hr/12 hr light/dark cycle, with commercial rabbit pellet and water supplied ad libitum. Acclimatization was done 1 week before the dermal irritation test. The experimental procedure was approved by the Institutional Animal Care and Use Committee (IACUC) of the University of the Philippines Manila (IACUC protocol no. 2016-022).
Dermal irritation test
Acute dermal irritation study was carried out using the OECD guideline 404 [18] with some modifications. Four rabbits (2 male and 2 female) were used in the study. Six areas of approximately 6 cm2, 3 on each side of the dorsal area of each rabbit, were shaved 24 hr before the test. The shaved areas on the left side were applied with 0.5 g of T. crispa ointment using a sterile cotton swab and held in place with a gauze patch and non-irritating tape. The shaved areas on the right side served as the control and received 0.5 g of the negative control ointment (palm oil and pulverized candle only). After 4 hr, the gauze patches were removed and the shaved areas were rinsed with distilled water. The test areas were examined at approximately 1, 24, 48, and 72 hr after the removal of gauze for evidences of primary irritation and scored according to the scale used in the OECD guideline 404 (Table 1).

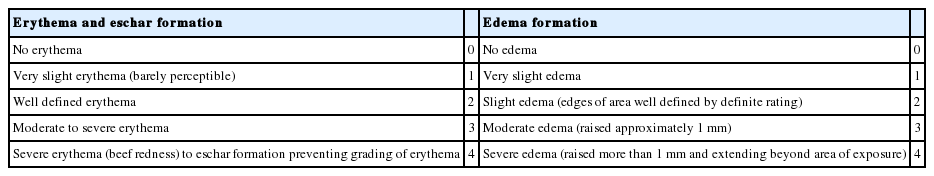

Primary irritation index (PII) was calculated by dividing the sum of erythema and edema scores, with the product of the number of test sites and the number of grading intervals [19]. It was then classified according to Draize method of classification using PII scoring as non-irritant (if PII<0.5), slightly irritant (if PII<2), moderately irritant (if PII<2–5), and severely irritant (if PII>5) [20].
Ethical Consideration
The study was reviewed and approved by the University of the Philippines Manila Review and Ethics Board (UPMREB) and was given the study code no. UPMREB 2016-277-01. Prior to screening and collection of head lice, verbal assent was obtained from the children and informed written consent was secured from their parents or guardians. All children and their families were given an over-the-counter 1% permethrin shampoo (Kwell®) after the study.
Screening of schoolchildren with head lice
Schoolchildren aged 5–11, of either sex around the 5th District of Manila, were screened for their possible inclusion in the study. Screening was made by the parent or guardian of the child. The hair was divided into 4 quadrants by a plastic head lice comb. Next, the hair on each quadrant was combed 6 times starting from the scalp and ending at the hair tips [21]. The number of lice collected was counted. Children with at least 5 living lice and did not use any form of pediculicidal agents in the previous month were included in the study.
Head lice collection
Adult head lice were collected from the screened schoolchildren. The parents or guardians extracted the head lice at the day of the researcher’s visit to ensure the viability of the insects. Head lice were placed over a plastic container covered with filter paper, moistened with distilled water to prevent death by desiccation. The collected head lice were transported to the Institute of Pharmaceutical Sciences’ laboratory for the in vitro assay. Only fully active and intact adult head lice with the size range of 2–3 mm long were used, irrespective of sex. Within an hour after the collection, the assay was performed.
In vitro pediculicidal assay
The T. crispa ointment was tested for its pediculicidal activity along with the negative control ointment (palm oil and pulverized candle only) and positive control (1% permethrin shampoo, Kwell®). A total of 252 head lice were used in the study (n=84 per group). The analyses were tested in batches of 84 (n=28 per group) at room temperature (25±3°C). Petri dishes lined with filter paper were prepared. Head lice were then placed on the filter paper together with some hair strands. To prevent the desiccation of head lice, the filter papers were moistened with distilled water. Samples were introduced through direct application. Each louse received either 15 mg of T. crispa ointment, 15 mg of negative control or a single drop of the positive control. After 20 min of exposure to the samples, the head lice were washed with tap water to simulate treatment on an infested host. Afterwards, head lice were placed into new petri dishes with unused moistened filter papers and were examined under a dissecting microscope. Three pre-defined criteria for the evaluation of the pediculicidal activity of samples were used. Lice were defined as ‘active’ if no changes in the activity or behavior were observed post-treatment. In the ‘some vital signs’ category, the reduced activity was shown by the inability of the lice to walk in a progressive fashion and the absence of righting reflex when rolled onto the back, but still with peristalsis. Lastly, the complete absence of any vital signs such as peristalsis and movement of antennae or legs, even after stimulating with a single hair strand, were defined as ‘no vital signs’. Observations were conducted at 30, 60, 90, 120, 150, and 180 min post-treatment [22,23].
Compound identification
The solution (50 ml) obtained from the T. crispa extraction with palm oil was extracted 3 times with equal amount of dimethylsulfoxide (DMSO). The DMSO portion was pooled and was diluted to 5% using distilled water. The solution was filtered using 0.2 μm syringe filter. Palm oil underwent the same treatment and was used as blank. The resulting filtrates were subjected to ultra-performance liquid chromatography quadruple time-of-flight mass spectrometric (UPLC-qTOF/MS) analysis for the identification of compounds present [24].
UPLC-qTOF/MS analysis was performed using Waters AcquityTM UPLCTM I-Class/Xevo equipped with Xevo G2-XS qTOF mass spectrometer. Chromatographic separation was performed using Waters HSS T3 C18 column (2.1×100 mm i.d., 1.8 μm) maintained at 40°C. The mobile phase was composed of acetonitrile+0.1% formic acid (A) and water+0.1% formic acid (B). The following gradient program was employed: 5% A for 0.5 min, linearly increased to 95% A for 10 min, followed by an isocratic phase for 4.5 min, then 99% A for 2.5 min and linearly decreased to 5% A for 25 min. The flow rate 0.4 ml/min and the injection volume was 5 μl.
The Waters Xevo G2-XS qTOF MSE was run in positive ion mode. The capillary and cone voltages were set to 1.0 kV and 40 V, respectively, with the cone gas flow at 40 L/hr. The desolvation temperature was 550°C, gas flow at 950 L/hr, and source temperature at 120°C. Data were collected between the mass range of 100 and 1,200 Da, with a scan time of 0.150 sec. MS analysis was carried out to identify the compounds present in the T. crispa extract and the data were processed using UNIFI Scientific Information System with the Traditional Chinese Medicine Library (TCML) for identification of putative compounds present in the sample.
Statistical analysis
The data were expressed as mean±standard error of the mean (SE). The differences between groups per observation time were compared by 1-way analysis of variance (ANOVA) followed by Tukey’s post-hoc test. To investigate the efficacy between T. crispa ointment and positive control over time, 2-way mixed ANOVA was used. All statistical analyses were performed using the Statistical Package for the Social Sciences (SPSS, Chicago, Illinois, USA) 23.0. Results with P<0.05 were considered statistically significant.
RESULTS
Characterization of T. crispa ointment

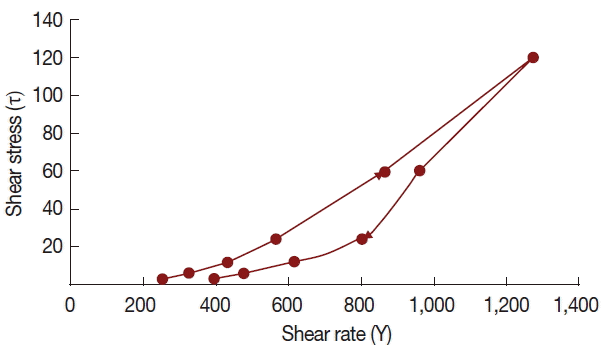

The community-based formulation of T. crispa ointment was light yellow, smooth and homogenous, having a distinctive aromatic odor and pH of 6.92±0.09. It has a spreadability value of 15.04±0.98 g.cm/sec. Rheological study revealed that the ointment has a thixotropic behavior (Fig. 2).
Pediculicidal activity study

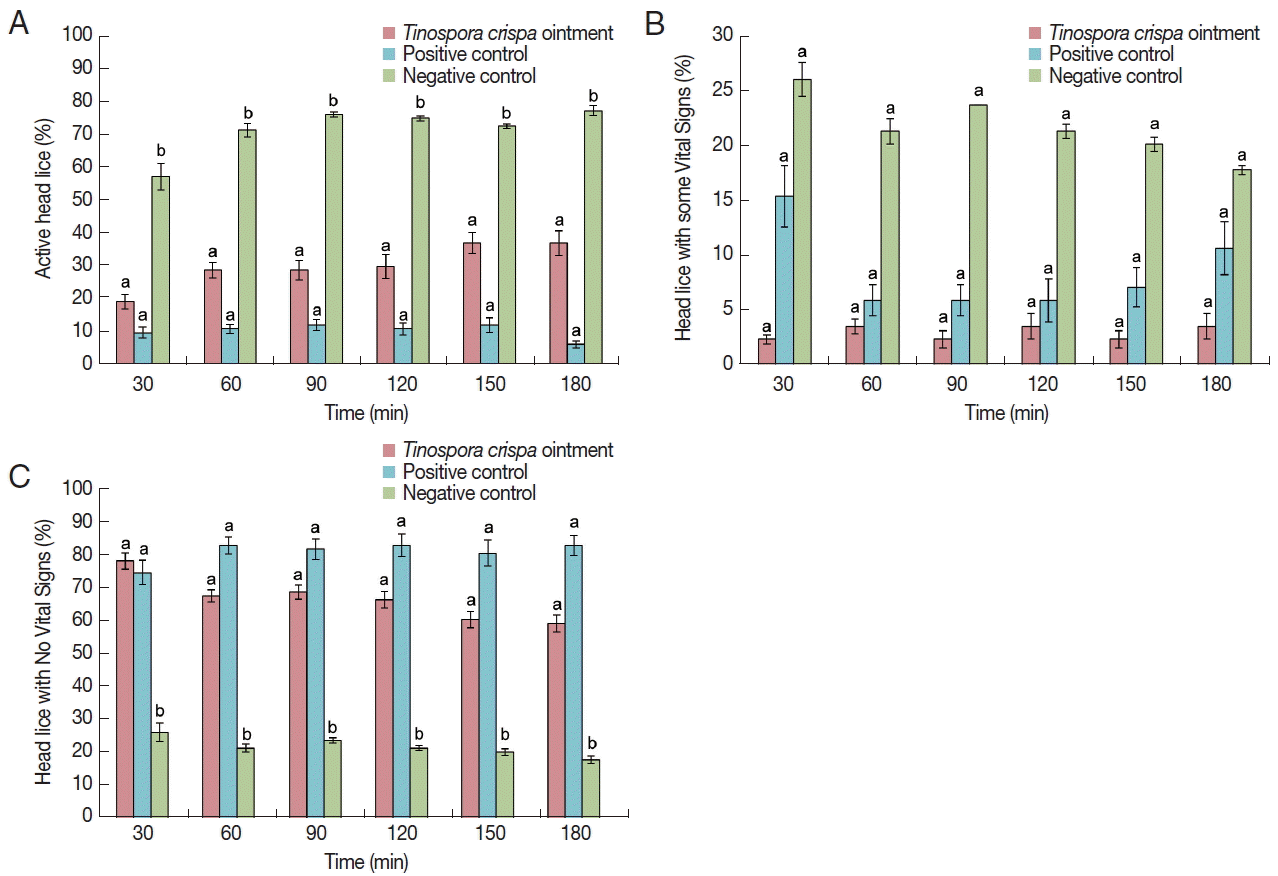

The results of the in vitro pediculicidal assay are shown in Fig. 3. It was observed that all groups displayed fluctuations in their activities over time except for active head lice group treated with T. crispa ointment. For the active head lice group, the T. crispa ointment treatment showed comparable activity with the positive control at 30 (P=0.728), 60 (P=0.165), 90 (P= 0.214), 120 (P=0.240), 150 (P=0.096), and 180 (P=0.056) min (Fig. 3A). On the other hand, positive control and T. crispa ointment treatment groups demonstrated significantly different activities with negative control at all observation times (P<0.05). Comparable activities were also observed in the head lice group with some vital signs treated with T. crispa ointment relative to positive (P>0.05) and negative (P>0.05) controls (Fig. 3B) at all time points. The mortality or the number of head lice with no vital signs treated with T. crispa ointment decreased over time but displayed comparable activity with the positive control at 30 (P=0.961), 60 (P=0.229), 90 (P=0.416), 120 (P=0.334), 150 (P=0.278), and 180 (P= 0.131) min (Fig. 3C). Significantly different activities in the mortality of head lice were observed in positive and T. crispa ointment treatment groups in comparison to the negative control (P<0.05). It should be noted that at 30 min observation time, the percentage mortality of head lice in the positive control group is lower than that of T. crispa ointment group, which is the highest mortality of the group at 76.80%. Two-way mixed ANOVA was utilized to further assess the comparability of the positive control and T. crispa ointment groups based on time and treatment. Time (F(5,20)=0.371, P=0.863, ηp2 =0.085) and treatment (F(1,4)=2.034, P=0.227, ηp2= 0.337) have no significant effect on the overall mortality of head lice, with the positive control (χ̄=81.35%) and T. crispa ointment (χ̄=67.06%) performing slightly similar overall activities.
Dermal irritation test
All the rabbit’s skin areas treated with negative control ointment were devoid of both erythema and edema, thus, having a PII value of 0.00. No signs of edema but with a very slight erythema on a single area of all rabbits were observed an hour after the application of T. crispa ointment, which disappeared thereafter. It was classified as a non-irritant formulation because of the PII value of 0.15. Additionally, the skin of the rabbits on all areas tested were intact throughout the 72 hr study duration.
Compound identification

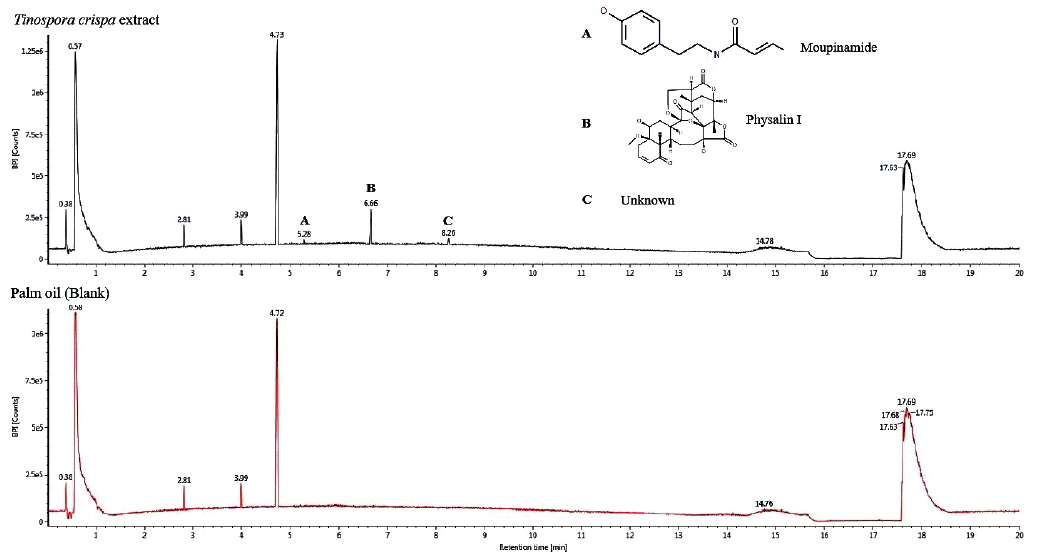

T. crispa oil extract was analyzed by UPLC-qTOF/MS for compound identification, using palm oil as blank. The chromatogram generated is shown in Fig. 4. It was observed that there were 3 distinct peaks in the T. crispa extract as compared to palm oil, with retention times at 5.28, 6.66 and 8.26 min. Using the TCML, the compound with retention time of 5.28 min and an observed mass of 313.1311 Da was identified to be moupinamide, while the compound with retention time of 6.66 and an observed mass of 558.2083 Da was recognized to be physalin I. Although the last compound with retention time of 8.26 min was not identified from the TCML, it was known to have an observed m/z of 230.2471.
DISCUSSION
Pediculosis capitis has been well-known since antiquity [25] and hitherto, remains a public health problem worldwide [26]. With the presence of resistance to conventional pediculicidal agents [9], the combat against head lice became more difficult. To address the problem, the search for alternative treatments were initiated, focusing on natural products as they can provide good pediculicidal activity and can offer a valid alternative to conventional treatments [27]. In the Philippines, a community-based ointment formulation against head lice is currently being used. The ointment is composed of edible oil and candle wax as bases, and T. crispa extract as active ingredient [14]. The formulation has an almost neutral pH value range of 6.92±0.09, which is close to pH value range of the skin (pH 4.0–7.0), and similar to the pH of a viable epidermis (around pH 7.0) [28]. The ointment’s pH is acceptable because the use of substances with neutral pH can maintain the physiological pH of the skin, preventing the overgrowth of microorganisms [29]. The T. crispa ointment exhibits thixotropy at 25°C, which means that the viscosity decreases with increasing rate of shear. This rheological behavior is preferred due to its low flow resistance confirming the ointment’s high spreadability, satisfying the ideal quality in topical application [30].
Assessment of irritation for a topical product, especially for a community-based ointment formulation, is a significant step in the determination of their acceptability and safety. The 0.00 PII score of the negative control ointment can be attributed to the previous non-irritancy claims of palm oil [31] and the inertness of candle wax [32]. On the other hand, the 0.15 PII score of T. crispa ointment, depicted as very slight erythema, may be due to various compounds extracted from the plant. The data gathered revealed that T. crispa extract has a negligible skin irritancy effect, inferring that the community-based ointment formulation of T. crispa is safe to be used topically.
The general activity of pediculicides occurs by penetrating the cuticle barrier on the skin of the lice and then disrupting the sodium channel in the nerve membrane, thereby causing delayed repolarization leading to impairment of the nerve responsible for breathing [33]. As a result, lice experience suffocation and expire. Permethrin, is one of the most extensively used pediculicide available in the market due to its great efficacy and wide margin of safety [34]. In the experiment, a small percentage of the lice treated with permethrin were still active after 180 min observation period. This may be attributed to lice that developed resistance against pyrethroids (i.e. permethrin). It is caused by a substitution of an amino acid in a protein responsible for “knockdown resistance”, that results to insensitivity of the cholinergic nerves to pediculicides [35,36]. Although the source of the lice did not use permethrin or any pediculicides for the past month prior to collection, it may be caused by the transfer of permethrin-resistant head lice from another host. The prevalent occurrence of resistant head lice is due to misdiagnosis, overuse and improper use of pediculicides [27,37]. On the other hand, presence of inactive head lice in the group treated with palm oil was noted. Although it is anticipated for palm oil not to have any effect on the mortality of the lice, the presence of inactive head lice may be caused by the hydrophobic nature of the oil, which was reported to work by occluding the respiratory spiracle of the head louse [35]. Several papers have also reported that mayonnaise, petroleum jelly and olive oil are capable of causing mortality in head lice but only supplies transient period of stasis [22,36]. However, over 180 min period, it was observed that the percentage of head lice with no vital signs decreased and so it may also be due to a period of temporary stasis called “sham death” as insects (i.e., head louse) exhibit this ability when exposed to chemicals for less than 6 hr [22,38]. Head lice utilize their anatomical structure and physiologic characteristics to exhibit this ability as a defense mechanism when exposed to either too much water or to various chemicals that cause stupor, in a period insufficient to kill them [39,40]. This phenomenon is characterized by a momentary period where in head lice are thought to be inactive due to the absence of their gut and limb movements, but after some time they recommence and resume, respectively [39]. Fluctuations in the activities seen in all treatment groups may also be attributed to sham death.
It was confirmed that the community-based ointment formulation of T. crispa is an effective pediculicide, with the highest percent mortality (78.60%) at 30 min post-treatment, and is comparable to the commercially available permethrin on the basis of pediculicidal efficacy on adult head lice. Although there was an observed decrease in the number of head lice considered to have no vital signs over time, T. crispa ointment still performed better than palm oil and relatively the same with permethrin. The efficacy of T. crispa may be attributed to the 3 compounds detected in the UPLC-qTOF/MS analysis. The 2 compounds were identified to be moupinamide and physalin I, and a third unknown compound with a m/z of 230.2471. The structural aspect of these compound may contribute to the pediculicidal efficacy [41–43]. Moupinamide belongs to the class benzenoids, and its direct parent methoxyphenol [44]. Studies have shown that benzenoids and methoxyphenol, have ability to elicit insecticidal activity, however their mode of action were not reported [41,45]. Physalin, on the other hand, belongs to the class of lipids [44] because of its steroidal nature. Lipids act on the spiracle of head louse and causes suffocation [35]. These studies provide supportive evidence for moupinamide and physalin I, as the compounds responsible for the pediculicidal efficacy of T. crispa ointment.
