Metacercariae of P. muris were obtained from dragonflies and adults were recovered from infected mouse intestines (Hong et al., 1999). Worms were kept in ethanol at -70℃ until assayed. Frozen worms were lyophilized and lyzed with lysis buffer containing 1% SDS, proteinase K (500 g/ml), and RNase at 37℃ for 2-3 hrs. DNA was extracted using the phenol/chloroform method and precipitated in ethanol. The 28S D1 rDNA and mtCOI regions were amplified by PCR using the primer sets described by Qu et al. (1988), and by Garey and Wolstenholme (1989). PCR was conducted using a mixed solution (25l) of the above extracted DNA (2.5l) as a template (1-50 ng), and primers (1.0l, each 10 pmole) for each genes with ~1.5 units of Taq enzyme (TAKARA Shuzo Co., LTD, Japan) in a GeneAmp PCR System 9600 (Perkin Elmer, U.S.A.). PCR amplification was conducted over 40 cycles denaturing at 95℃ for 20 seconds, annealing at 55℃ (28S D1 rDNA) or 48℃ (mtCOI) for 30 seconds, extending at 72℃ for 30 seconds), followed by a final extension of 7 minutes.

Amplified PCR products were extracted and purified using a gel extraction kit and a PCR purification kit (QIAGEN Co., Germany) and were cloned into a pT7Blue Perfectly Blunt cloning vector using T4 DNA ligase and transformed into E.coli Nova Blue competent cells, according to the supplier's protocol (Novagen Co. USA). Positive recombinant clones were picked, and grown in 2 ml of LB broth (in the presence of 50 g/ml ampicillin) overnight at 37℃. The recombinant plasmid was screened using isopropyl—thiogalactoside (IPTG) and 5-bromo-4 chloro-3-indolyl—D-galactoside (X-gal). Positive plasmid DNA was purified using a QIAprep spin plasmid kit (QIAGEN Co., Germany). DNA sequencing was performed by the dideoxy chain termination method. Cycle sequencing reactions were performed using Thermo Sequenase dye terminator sequencing pre-mix kits (Amersham Life Science Co.). PCR products were run on an ABI 373A automated DNA sequencer (Applied Biosystems model 373A, Perkin Elmer) according to the manufacturer's instructions. The each gene was sequenced in both orientations using the universal sequencing primers T7 and U19. At least two clones were sequenced per gene; additional clones were sequenced as necessary to resolve ambiguous sites.

The analyses of 28S D1 rDNA and mtCOI region sequences were determined by comparison with those of a range of other related nematodes of the family Plagiorchiidae. NCBI (National Center for Biotechnology Information, NIH, Bethesda, USA) databases were used for sequence homology analysis using BLAST2. Multiple sequence alignments were performed using CLUSTA W program (European Bioinformatics Institute, http://www.ebi.ac.uk/clustalw/), and the fractional GC contents of nucleic acid sequences were determined using the EMBOSS GEECEE program provided by Dr. Richard Bruskiewich (Sanger Institute, Wellcome Trust Genome Campus, Hinxton, Cambridge, CB10 1SA, UK)(http://analysis.molbiol.ox.ac.uk/pise_html/geecee.html). Alignment gaps were treated as missing data. Other trematodes in the family Plagiorchiidae and their GenBank accession numbers used for comparative purposes in this study are listed in Tables 1 and 2. Haematoloechus longiplexus (Haematoloechidae, AY222280 for 28S rDNA) and Paragonimus macrorchis (Paragonimidae, AF159598 for mtCOI) were used as outgroups. Phylogenic analysis was performed using the Kimura 2-parameter model for distance correction; corrected for multiple substitutions (Kimura, 1980). Phylogenic trees were constructed using the Neighbor-joining algorithm (Swofford et al., 1996). In order to view these trees, we used PHYLIP version 1.6 for tree drawing using the parsimony, maximum likelihood, and distance methods.

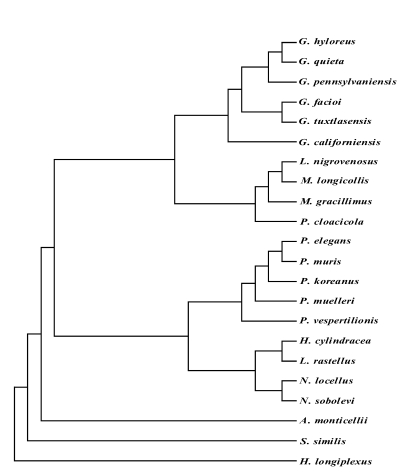

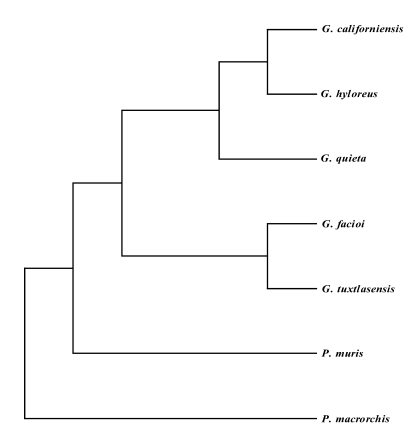

The sizes of amplified genomic DNA fragments of 28S D1 rDNA and mtCOI were 0.3 kb and 0.45 kb, respectively. The sequences length was 309 bp for the 28S D1 rDNA gene, and 397 bp for the mtCOI gene excluding primer sequences (results not shown). The GC contents were 52% (28S D1 rDNA) and 48% (mtCOI) exlcuding primers. The 28S D1 rDNA and mtCOI coding regions were highly conserved by multiple sequence alignment without additional nucleotides, Overall nucleotide similarity between P. muris and other Plagiorchiidae species ranged 61.1%~63.7% for 28S D1 rDNA and 51.4%~63.9% for mtCOI (results not shown). Several insertions, a 79 bp insertion in P. muris 28S D1 rDNA, a 16 bp insertion in P. muris mtCOI, with gaps, 1 bp gap in P. muris 28S D1, in the same or in different positions were detected within and between species (results not shown). The most-parsimonious tree was obtained when gaps were treated as missing data. The 28S D1 tree of P. muris was closely related with that of P. elegans and other Plagiorchis species (Fig. 1). The mtCOI tree of P. muris was in the separate clade with genus Glypthelmins (Fig. 2).

We found sequence variability in both the 28S rDNA and mtCOI region of the family Plagiorchiidae, but the 28S D1 rDNA region was more conserved than the mtCOI region. With respect to the 28S D1 rDNA region, it is also worth noting that P. muris had longer sequences (about 68bp at 5' end) than other species of the Plagiorchis genus. The phylogenic tree of the family Plagiorchiidae is consistent with a previous molecular analysis of Haematoloechus species and Plagiorchis species using internally transcribed spacer 1 (ITS1), and with large subunit sequence data (Snyder and Tkach, 2001). Tkach et al. (2000a, 2000b, 2001) reported that the suborder Plagiorchiata is composed of two-supported clades, which can be considered superfamilies, namely, Plagiorchioidea including the Plagiorchiidae, and Microphalloidea based on partial lsr DNA sequences. In Plagiorchiidae, a close phylogenic relationship was observed between two Plagiorchis species (P. koreanus, P. vespertilionis), Lecithopyge rastellus, and Haplometra cylindracea. Since there is a little data on mtCOI Plagiorchiidae worms, it is not possible to determine whether P. muris is in the same clade as Glypthelmins spp. However, we infer that P. muris is probably in a separate clade (Fig. 2). The present partial 28S rDNA sequence-base phylogenic analysis of the family Plagiorchiidae including P. muris places the genera Plagiorchis into a welldefined separate clade within the family Plagiorchiidae. The positions of the majority of the taxa of Plagiorchiidae are consistent with the traditional systematic views, the above molecular data also supports the traditional morphology-based conclusion that P. muris belongs to Plagiorchis spp.
