Genetic and Morphologic Identification of <i>Spirometra ranarum</i> in Myanmar

Hyeong-Kyu Jeon; Hansol Park; Dongmin Lee; Seongjun Choe; Yeseul Kang; Mohammed Mebarek Bia; Sang-Hwa Lee; Woon-Mok Sohn; Sung-Jong Hong; Jong-Yil Chai; Keeseon S. Eom

doi:10.3347/kjp.2018.56.3.275

Korean J Parasito > Volume 56(3):2018 > Article

Jeon, Park, Lee, Choe, Kang, Bia, Lee, Sohn, Hong, Chai, and Eom: Genetic and Morphologic Identification of Spirometra ranarum in Myanmar

Original Article

The Korean Journal of Parasitology 2018; 56(3): 275-280.

Published online: June 30, 2018

DOI: https://doi.org/10.3347/kjp.2018.56.3.275

Genetic and Morphologic Identification of Spirometra ranarum in Myanmar

Hyeong-Kyu Jeon¹, Hansol Park¹, Dongmin Lee¹, Seongjun Choe¹, Yeseul Kang¹, Mohammed Mebarek Bia¹, Sang-Hwa Lee¹, Woon-Mok Sohn², Sung-Jong Hong³, Jong-Yil Chai⁴, Keeseon S. Eom^1,^*

¹Department of Parasitology, Parasite Research Center and Parasite Resource Bank, Chungbuk National University School of Medicine, Cheongju 28644, Korea

²Department of Parasitology and Tropical Medicine, Institute of Health Sciences, Gyeongsang National University College of Medicine, Chinju 52727, Korea

³Department of Medical Environmental Biology, Chung-Ang University College of Medicine, Seoul 06974, Korea

⁴Department of Parasitology and Tropical Medicine, Seoul National University College of Medicine, Seoul 03080, Korea

^*Corresponding author (kseom@chungbuk.ac.kr)

Received April 24, 2018 Revised June 15, 2018 Accepted June 21, 2018

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

In the present study, we identified a Spirometra species of Myanmar origin (plerocercoid) by molecular analysis using mitochondrial cox1 and nad1 genes, as well as by morphological observations of an adult tapeworm. Spargana specimens were collected from a paddy-field in Taik Kyi Township Tarkwa Village, Yangon, Myanmar in December 2017. A total of 5 spargana were obtained from 20 frogs Hoplobatrachus rugulosus; syn: Rana rugulosa (Wiegmann, 1834) or R. tigrina (Steindachner, 1867). The plerocercoids were used for experimental infection of a dog. After 4 weeks of infection, an adult tapeworm was recovered from the intestine of the dog. Morphologically, the distinct features of Spirometra sp. (Myanmar origin) relative to S. erinaceieuropaei and S. decipiens include a uterine morphology comprising posterior uterine coils that larger than the terminal uterine ball and coiling of the uteri diagonally (swirling) rather than spirally. The cox1 sequences (1,566 bp) of the Myanmar-origin Spirometra species showed 97.9% similarity to a reference sequence of S. decipiens (GenBank no. KJ599679) and 90.5% similarity to a reference sequence of S. erinaceieuropaei (GenBank no. KJ599680). Phylogenetic tree topologies were identical and presented high confidence level of values for the 3 major branches of the 3 Spirometra species in cox1 and nad1 genes. These results indicated that Myanmar-origin Spirometra species coincided with those of S. ranarum and may be considered as a valid species.

Key words: Spirometra ranarum, spargana, molecular detection, cox1, nad1, Myanmar

INTRODUCTION

The genus Spirometra belongs to the family Diphyllobothriidae and order Diphyllobothriidea and includes intestinal parasites of cats and dogs. Human sparganosis is a zoonotic disease caused by infection with the larval forms (procercoid/plerocercoid) of Spirometra species. The genus Spirometra has been described with morphological features of spirometrid species under the generic name Diphyllobothrium as found in China and including S. erinaceieuropaei (Rudolphi, 1819), S. decipiens (Diesing, 1850), S. ranarum (Gastaldi, 1854), S. mansoni (Cobbold, 1882) S. houghtoni (Syn. S. mansoni, Faust et al., 1929) and S. okumurai (Faust et al., 1929) by Faust et al. [1]. Spirometra species in North America have been identified such as S. mansonoides (Mueller, 1935) which possesses a characteristics C-shaped outer loop of the uterus [2]. Five Spirometra species, S. decipiens, S. mansoni, S. gracilis (Baer, 1927), S. longicollis (Parodi and Widakowich, 1917) and S. mansonoides have been reported from wild fields in South America [3].

Although human sparganosis is sporadically reported around the world, it is frequently reported in Asian countries. Among these species in the genus Spirometra, where S. erinaceieuropaei is known as the only Spirometra species in Asian countries including China, Indonesia, Japan, Korea and Thailand [4,5]. Many investigations of the spargana in frogs and snakes have been reported in field studies covering 27 Provinces in China and are critical for the eventual implementation of measures for the prevention and control of human sparganosis as more than 1,000 cases of human sparganosis have been reported in China [6]. The nucleotide sequence variations of spargana in frogs (Rana nigromaculata) and snakes were 0–8.4% for cox1, 0–1.5% for cox3, 0–2.8% for nad1, and 0–2.7% for nad4 in Hunan, Guangxi, and Henan Provinces, China, respectively [6–10]. In Thailand, 55 human sparganosis were reported as 53 non-proliferative and 2 proliferative. Among them, 12 cases were identified as infection with S. erinaceieuropaei plerocercoids by PCR-based molecular identification of the worms [11]. Intraspecies variation of cox1 gene of S. erinaceieuropaei was reported from Japan, India and Indonesia by Okamoto et al. (<2.6%) [12]. Molecular identification of Spirometra species collected from animals has been studied using partial sequence analysis of the cox1 gene of spargana isolated from frogs (Hoplobatrachus rugulosus) and snakes (Ptyas korros) from Lao PDR, Myanmar and Thailand [13]. The results revealed that nucleotide variation in the partial cox1 sequence (429 bp) among the spargana ranged from 0–3.5%. Those molecular studies have indicated that 2 more genotypes were found in Spirometra species in those endemic regions revealing genetic variation of mitochondrial DNA sequences. As with the above studies, the most important causative agent of human sparganosis is S. erinaceieuropaei in Asian countries. Two Spirometra species currently being considered as valid are S. erinaceieuropaei and S. decipiens by morphological and molecular approaches using complete mitochondrial genome analysis [14]. Therefore, identification of Spirometra species requires the use of molecular and morphological techniques to better understand the epidemiological status of Spirometra spp. in its endemic regions including Asian countries.

One Spirometra species in Myanmar is known as S. ranarum, which was first reported by Gastaldi (1854) from Rana esculenta (syn: Pelophylax esculentus) in Italy, and Meggitt described it as S. ranarum from a dog fed spargana isolated from the same frog host by Gastaldi (1854) in Myanmar [15]. In the present study, we identified a Spirometra species of Myanmar origin (plerocercoid) by molecular analysis using 2 complete mitochondrial genes, cytochrome c oxidase I (cox1) and NADH dehydrogenase subunit 1 (nad1), as well as by morphological observations of an adult tapeworm experimentally obtained from a dog fed with the plerocercoid.

MATERIAS AND METHODS

Specimens

Spargana specimens were collected from a paddy-field in Taik Kyi Township Tarkwa Village, Yangon, Myanmar in December 2017. A total of 5 spargana were obtained from 20 frogs (Hoplobatrachus rugulosus; syn: Rana rugulosa [Wiegmann, 1834] or R. tigrina [Steindachner, 1867], commonly known as Chinese edible frog, East Asian bullfrog or Taiwanese frog). The 5 plerocercoids were then used to infect a dog. After 4 weeks of infection, an adult tapeworm was recovered from the intestine of the dog. The collected worm was fixed with 10% neutral buffered formalin before it was placed in hot water (90°C) for 5 min and microscopic observations were then performed following carmine staining. The vaginal opening, uterus, uterine pore, cirrus, genital pore, testes, and vitellaria were observed with carmine-stained mature and gravid proglottids according to the methods of Meggitt and Faust et al. [1,15]. Gravid proglottids in longitudinal section were stained with hematoxylin and eosin for observing genital organs. Some of the gravid proglottids were preserved in a −70°C deep freezer and in 70% ethanol for molecular studies. The experimental animal was treated according to the recommendations of the Guide for Institutional Animal Care and Use Committees (IACUC) of Chungbuk National University, Cheongju, Korea (Permission No. CBNUA-1090-18-02). Parasite materials used in this study were provided by the Parasite Resource Bank of the Korea National Research Resource Center, Republic of Korea (PRB000720).

PCR and DNA sequencing

Total genomic DNA was extracted from a single proglottid using a DNeasy tissue kit (Qiagen, Valencia, California, USA) according to the manufacturer’s instructions. The primers were used to amplify the mitochondrial cox1 gene (Spi-CO1F: 5′-GAC TAA GTG TTT TCA AAA CAC TAA GTG -3′ and Spi-CO1R: 5′CAC CCT ACC CCT GAT TTA CAA AAT-3′) and nad1 gene (Spi-ND1F: 5′-GGA GAA TAT TGG TTT GTC TAA CCA-3′ and Spi-ND1R: 5′-CCT TCT TAA CGT TAA CAG CAT TAC GAT-3′). PCR was performed in a 50 μl of reaction volume containing 50 ng of genomic DNA, 10 pmol of each primer, 5 μl of 10X buffer, 10 mM dNTP mix, 25 mM MgCl₂, and 2.5 units Taq polymerase (High Fidelity PCR system, Roche, Mannheim, Germany). PCR was employed using a GeneAmp PCR system 9700 instrument (Applied Biosystems, Langen, Germany) under conditions comprising: 94°C for 3 min; 35 cycles of 94°C for 30 sec, 45°C for 40 sec, 72°C for 60 sec, and a final step at 72°C for 5 min. The cox1 and nad1 DNA fragments were extracted using a QIAquick PCR purification kit (Qiagen). DNA sequencing was performed by a private company (COSMOGENETECH, Daejeon, Korea). Cycle sequencing was performed using a Big-Dye terminator kit (version 3.1, Applied Biosystems, Foster City, California, USA). Reaction products were sequenced directly using a DNA sequencer (ABI3730XL, Applied Biosystems).

DNA sequence analyses

DNA sequences were assembled and aligned using the Geneious 9.0 software program (Biometer, Auckland, New Zealand). These sequences were identified by comparison with the sequences of S. erinaceieuropaei and S. decipiens in the Gen-Bank database. Phylogenetic analyses were evaluated using Bayesian inference (BI) and maximum-likelihood (ML). ML analyses of cox1 and nad1 used RAxML v. 7.3.1 [16] after GTR+ I+G substitution model sampling was chosen according to the Modeltest using the program Partition Finder [17]. BI analyses were used in MrBayes 3.2 and running four simultaneous Monte Carlo Markov chains (MCMC) for 10 million generations, sampling every 1,000 generations and discarding the first 25% generations as burn-in [18]. Phylogenetic trees were constructed using full mitochondrial cox1 (1,566 bp) and nad1 (891 bp) sequences of S. erinaceieuropaei (KJ599680), S. decipiens (KJ599679), D. nihonkaiense (EF420138) and D. latum (DQ985706). Pairwise sequence differences based on the full mitochondrial cox1 and nad1 sequences were analyzed using the NJ method with the K2P substitution model.

RESULTS

Sequence similarity and phylogenetic relationships

The cox1 sequences (1,566 bp) of the Myanmar-origin Spirometra species showed 97.9% similarity to reference sequences of S. decipiens (GenBank no. KJ599679) and 90.5% similarity to a reference sequence of S. erinaceieuropaei (GenBank no. KJ599680). The similarity to other Diphyllobothrium species was 79.5% (D. nihonkaiense) and 80.1% (D. latum). The similarity of nad1 sequences (891 bp) from Myanmar-origin Spirometra species to the reference sequence was 97.8% (S. decipiens), 89.1% (S. erinaceieuropaei), 73.8% (D. nihonkaiense), and 73.3% (D. latum) (Table 1).

Phylogenetic analyses of Spirometra species were conducted using the 2 methods (BI and ML) based on the cox1 and nad1 genes of S. decipiens, S. erinaceieuropaei, D. nihonkaiense, and D. latum. The cox1 sequences (1,566 bp) revealed 33 polymorphic sites, with 26 synonymous and 7 non-synonymous substitutions, while nad1 sequences (891 bp) showed 19 polymorphic sites, with 16 synonymous and 3 non-synonymous substitutions between the Myanmar-origin Spirometra species and S. decipiens (GenBank no. KJ599679). Phylogenetic tree topologies generated using the 2 analytic methods were identical and presented high level of confidence values for the 3 major branches of the 3 Spirometra species in the cox1 and nad1 genes (Fig. 1).

Morphological characteristics

The length of the whole strobila was 237 cm. The mature proglottids with eggs were first visible almost 32 cm downward from the neck. The average width and length of the gravid proglottid was 15.0 mm by 2.0 mm (n=10) (Table 2). The genital and vaginal pore were closely situated ventrally on the midline in the anterior 1/3 of the segment. The uterine pore was on the midline behind the anterior margin of the terminal ball 370–420 μm in diameter (n=10). The uterus consisted of 3 loops with a diagonal direction of the second turn (Fig. 2A). A longitudinal section of the cirrus sac showed an oval structure 175–250 μm in diameter (n=10). The seminal vesicle was almost round in shape 197–222 μm in diameter. The testes (n=10) measured an average 74 μm in width. The eggs measured 52–55 μm by 31–35 μm in transverse diameter (n=10). The ovary was highly dendritic and was situated near the posterior margin of the proglottids (Fig. 2B).

DISSCUSSION

The larval stage (plerocercoid) of S. ranarum was first described by Gastaldi (1854) from Rana esculenta (syn: Pelophylax esculentus) from Italy. In 1924, Meggitt reported spargana from frogs (Rana tigrina) from Yangon, Myanmar, and autopsies of dogs fed some of the spargana revealed the presence of adult spirometrids [15]. Meggitt, Joyeux and Baer (1927) described in detail this species with complete life cycle through intermediate hosts found and showed it to be suitable for final hosts [1]. Faust et al. (1929) found this species from natural infections of cats and dogs in Beijing, Xiamen, Canton and by experimental feeding of spargana obtained from dogs in Fujian [1]. The morphological characteristics of S. ranarum that have been detailed included the following features: 3–4_½ uterine coils of which the posterior 2 are broader and more dilated than the terminal uterine ball, highly dendritic ovaries, the testes and vitellaria are closely positioned to the lateral margins of the lower 2 coils of the outer uterus, the vaginal and male genital pores are located in the median plane at small a distance anterior to the terminal uterine coil, and the eggs are similar in shape to those of S. decipiens [1].

The morphological features of the spirometrid tapeworm observed in the present study resembled that of previous studies by showing the genital and vaginal pore closely situated ventrally on the midline at the anterior 1/3 of the segment. The uterine pore was on the midline behind the anterior margin of the terminal uterine ball. The uterus consisted of 3 loops with a diagonal direction of the second turn and these 2 uterine coils were larger than the terminal uterine ball. The distinct features of S. ranarum relative to other Spirometra species include a uterine morphology comprising posterior uterine coils that are larger than the terminal uterine ball and coiling of the uteri diagonally (swirling) rather than spirally. These morphological characteristics of the Spirometra specimen (Myanmar origin) examined in this study are consistent with this S. ranarum specimen in terms of shape of the uterus.

Molecular approaches for taxonomy are usually based on genetic markers for identification and are applied to genetic variations especially among a group of morphologically similar parasites. The mitochondrial DNA sequences of cox1, cox3, nad3, and nad4 genes have been used as genetic markers for phylogenetic reconstruction, taxonomic identification and epidemiological investigations [6–14]. Recent molecular data of Spirometra species reported from Asian, South American and African countries show that there are at least 4 Spirometra species in those endemic areas [3]. The nucleotide sequence variation of S. erinaceieuropaei ranged from 0.0–3.5% in China, Myanmar, Thailand and in Lao PDR as determined from frogs and snakes. Some studies from Japan, India and Indonesia found 2.6% variation in the DNA sequence of cox1 genes obtained from dogs [12]. The degree of mtDNA sequence divergence of cytochrome b (cob) gene between sister or congeneric species, and con-familial genera was greater than 2% in amphibian, reptilian, avian and mammalian species [19]. The closely related species of vertebrates showed more than 2% of sequence divergence in the cox1 gene [20]. In this study, sequence differences in cox1 and nad1 genes between Spirometra species (Myanmar origin) and S. decipiens was 2.1%, while those of S. erinaceieuroapei were 9.5% (cox1) and 11.9% (nad1), respectively. Therefore, the results indicated that the examined Spirometra species from Myanmar matched S. ranarum in terms of morphological characteristics and mitochondrial sequence divergence. Some previous studies have reported that sequence divergence of the partial cox1 gene (300–450 bp) in Spirometra species was greater than 3.0%, whereas sequence differences in the full mitochondrial cox1 sequence was 2.1%. The results of this comparative study indicated that analysis of short sequences of the cox1 gene may give rise to bias, and that analysis of the complete sequence data provides more reliable data.

Regardless of the molecular and phylogenetic results, the epidemiological status of Spirometra species should be considered in terms of species distribution and human sparganosis rather than assessment based primarily on GenBank DNA sequences. The Asian isolates of Spirometra species were revealed to be S. decipiens and S. ranarum in Myanmar, Thailand, Lao PDR, China, Korea and Japan, whereas only S. erinaceieuropaei human cases were found in Korea and Japan. These findings indicated that S. erinaceieuropaei, S. decipiens, and S. ranarum are a possible cause of human sparganosis. Further studies are needed to better understand the taxonomic and epidemiological status of Spirometra species for investigations of African and South American isolates.

This study has demonstrated the identification of Myanmarorigin Spirometra species by mitochondrial cox1 and nad1 sequence analysis and morphological examination of the adult worm. Furthermore, these results may indicate that S. ranarum is a valid species.

ACKNOWLEDGMENTS

This work was supported by the National Research Foundation of Korea (no. 2017R1D1A3B03035967). Materials used were provided by the Parasite Resource Bank of Korea (PRB000720).

Conflict of interest

CONFLICT OF INTEREST

We have no conflict of interest related to this work.

REFERENCES

1. Faust EC, Campbell HE, Kellogg CR. Morphological and biological studies on the species of Diphyllobothrium in China. Am J Epidemiol 1929;9:560-583.

2. McIntosh A. New host records for Diphyllobothrium mansonoides Mueller 1935. J Parasitol 1937;23:313-315.

3. Almeida GG, Coscarelli D, Melo MN, Melo AL, Pinto HA. Molecular identification of Spirometra spp. (Cestoda: Diphyllobothriidae) in some wild animals from Brazil. Parasitol Int 2016;65:428-431.

4. Liu Q, Li MW, Wang ZD, Zhao GH, Zhu XQ. Human sparganosis, a neglected food borne zoonosis. Lancet 2015;15:1226-1235.

5. Margono SS, Sutjahyono RW, Kurniawan A, Nakao M, Mulyani T, Wandra T, Ito A. Diphyllobothriasis and sparganosis in Indonesia. Trop Med Health 2007;35:301-305.

6. Liu W, Zhao GH, Tan MY, Zeng DL, Wang KZ, Yuan ZG, Lin RQ, Zhu XQ, Liu Y. Survey of Spirometra erinaceieuropaei spargana infection in the frog Rana nigromaculata of the Hunan Province of China. Vet Parasitol 2010;173:152-156.

7. Liu W, Liu GH, Li F, He DS, Wang T, Sheng XF, Zeng DL, Yang FF, Liu Y. Sequence variability in three mitochondrial DNA regions of Spirometra erinaceieuropaei spargana of human and animal health significance. J Helminthol 2012;86:271-275.

8. Zhang X, Cui J, Wei T, Li LY, Jiang J, Lu JC, Jiang P, Liu LN, Wang ZQ. Survey and genetic variation of Spirometra erinaceieuropaei sparganum in frogs and snakes from Guangxi of southern China. Trop Biomed 2014;31:862-870.

9. Zhang X, Wang H, Cui J, Jiang P, Fu GM, Zhong K, Zhang ZF, Wang ZQ. Characterization of the relationship between Spirometra erinaceieuropaei and Diphyllobothrium species using complete cytb and cox1 genes. Infect Genet Evol 2015;35:1-8.

10. Zhang X, Wnag H, Cui J, Jiang P, Lin ML, Zhang YL, Liu RD. The phylogenetic diversity of Spirometra erinaceieuropaei isolates from southwest China revealed by multi genes. Acta Trop 2016;156:108-114.

11. Boonyasiri A, Cheunsuchon P, Suputtamongkol Y, Yamasaki H, Sanpool O, Maleewong W, Intapan PM. Nine human sparganosis cases in Thailand with molecular identification of causative parasite species. Am J Trop Med Hyg 2014;91:389-393.

12. Okamoto M, Iseto S, Shibahara T, Sato MO, Wandra T, Craig PS, Ito A. Intraspecific variation of Spirometra erinaceieuropaei and phylogenetic relationship between Spirometra and Diphyllobothrium inferred from mitochondrial CO1 gene sequence. Parasitol Int 2007;56:235-238.

13. Jongthawin J, Intapan PM, Sanpool O, Sadaow L, Laymanivong S, Thanchomnang T, Maleewong W. Molecular evidence of Spirometra erinaceieuropaei infection in snakes Ptyas korros from Lao PDR and Thailand and frogs Hoplobatrachus rugulosus from Myanmar. Southeast Asian J Trop Med Public Health 2014;45:1271-1278.

14. Jeon HK, Park H, Lee D, Choe S, Kim KH, Huh S, Sohn WM, Chai JY, Eom KS. Human infections with Spirometra decipiens plerocercoids identified by morphologic and genetic analyses in Korea. Korean J Parasitol 2015;53:299-305.

15. Meggitt FJ. LXXVII.—On the life history of an amphibian tapeworm (Diphyllobothrium ranarum, Gastaldi). J Nat Hist 1925;16:654-655.

16. Stamatakis A. RAxML-VI-HPC: maximum likelihood-based phylogenetic analyses with thousands of taxa and mixed models. Bioinformatics 2006;22:2688-2690.

17. Lanfear R, Calcott B, Ho SY, Guindon S. Partitionfinder: combined selection of partitioning schemes and substitution models for phylogenetic analyses. Mol Biol Evol 2012;29:1695-1701.

18. Ronquist F, Huelsenbeck JP. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics 2003;9:1572-1574.

19. Johns GC, Avise JC. A comparative summary of genetic distances in the vertebrates from the mitochondrial cytochrome b gene. Mol Bio Evol 1998;15:1481-1490.

20. Herbert PDN, Ratnasingham S, de Waard JR. Barcoding animal life: cytochrome c oxidase subunit 1 divergences among closely related species. Proc Biol Sci 2003;270( suppl):96-99.

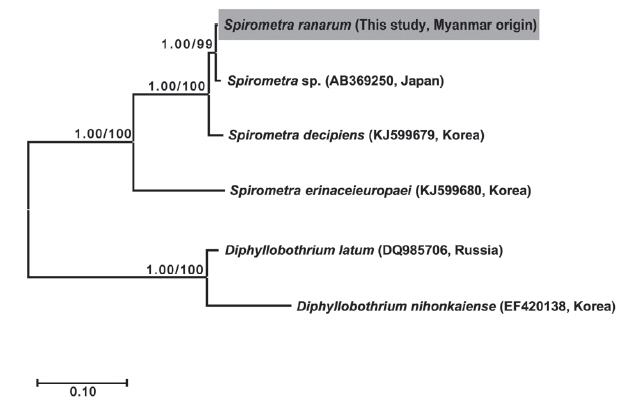

Fig. 1

Phylogenetic relationship of Spirometra species based on cox1 and nad1 gene sequences. Numbers on the branch represent bootstrap value for maximum likelihood (ML) and the support value of Bayesian inference (BI).

Fig. 2

Gravid proglottid of Spirometra ranarum. (A) Whole mounted specimen of proglottid showing the genital pore (GP), vaginal pore (VP), uterus (U), and cirrus pouch (C) (×40), (B) Longitudinal section of a gravid proglottid showing the cirrus sac (CS), seminal vesicle (SV), and uterus (U) (H&E stain).

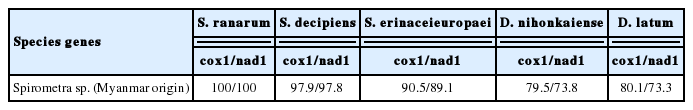

Table 1

Percentage pairwise sequence homologies of mitochondrial cox1 and nad1 genes of Spirometra species in Myanmar and various Spirometra species, Diphyllobothrium latum and D. nihonkaiense

Species genes	S. ranarum	S. decipiens	S. erinaceieuropaei	D. nihonkaiense	D. latum

	cox1/nad1	cox1/nad1	cox1/nad1	cox1/nad1	cox1/nad1
Spirometra sp. (Myanmar origin)	100/100	97.9/97.8	90.5/89.1	79.5/73.8	80.1/73.3

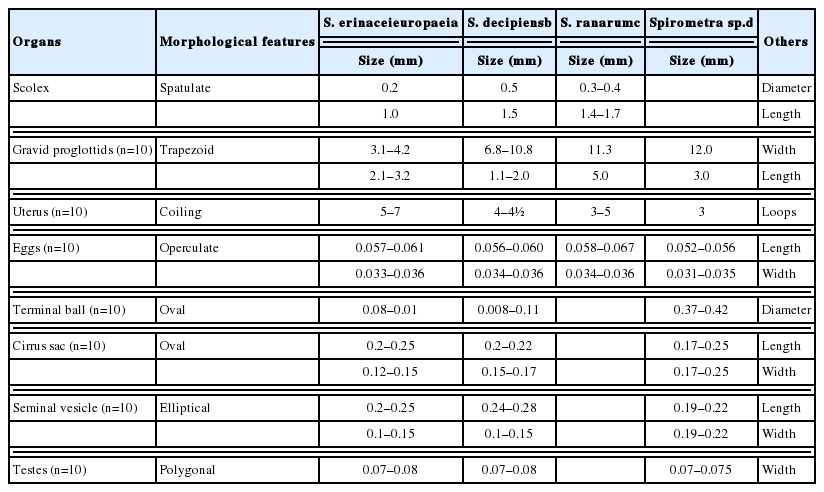

Table 2

Morphological features of Spirometra erinaceieuropaei, S. decipiens, and S. ranarum

Organs	Morphological features	S. erinaceieuropaeia	S. decipiensb	S. ranarumc	Spirometra sp.d	Others

		Size (mm)	Size (mm)	Size (mm)	Size (mm)
Scolex	Spatulate	0.2	0.5	0.3–0.4		Diameter
		1.0	1.5	1.4–1.7		Length

Gravid proglottids (n=10)	Trapezoid	3.1–4.2	6.8–10.8	11.3	12.0	Width
		2.1–3.2	1.1–2.0	5.0	3.0	Length

Uterus (n=10)	Coiling	5–7	4–4½	3–5	3	Loops

Eggs (n=10)	Operculate	0.057–0.061	0.056–0.060	0.058–0.067	0.052–0.056	Length
		0.033–0.036	0.034–0.036	0.034–0.036	0.031–0.035	Width

Terminal ball (n=10)	Oval	0.08–0.01	0.008–0.11		0.37–0.42	Diameter

Cirrus sac (n=10)	Oval	0.2–0.25	0.2–0.22		0.17–0.25	Length
		0.12–0.15	0.15–0.17		0.17–0.25	Width

Seminal vesicle (n=10)	Elliptical	0.2–0.25	0.24–0.28		0.19–0.22	Length
		0.1–0.15	0.1–0.15		0.19–0.22	Width

Testes (n=10)	Polygonal	0.07–0.08	0.07–0.08		0.07–0.075	Width

^a,b Jeon et al. (2015) [14].

^c Meggitt (1925) [15].

^d This study (Myanmar origin).
