Coexistence of Malaria and Thalassemia in Malaria Endemic Areas of Thailand

Jiraporn Kuesap; W. Chaijaroenkul; K. Rungsihirunrat; K. Pongjantharasatien; Kesara Na-Bangchang

doi:10.3347/kjp.2015.53.3.265

Korean J Parasito > Volume 53(3):2015 > Article

Kuesap, Chaijaroenkul, Rungsihirunrat, Pongjantharasatien, and Na-Bangchang: Coexistence of Malaria and Thalassemia in Malaria Endemic Areas of Thailand

Original Article

Korean J Parasitol 2015; 53(3): 265-270.

Published online: June 30, 2015

DOI: https://doi.org/10.3347/kjp.2015.53.3.265

Coexistence of Malaria and Thalassemia in Malaria Endemic Areas of Thailand

Jiraporn Kuesap¹, W. Chaijaroenkul², K. Rungsihirunrat³, K. Pongjantharasatien⁴, Kesara Na-Bangchang^2,^*

¹Faculty of Allied Health Sciences, Thammasat University, Pathumthani, Thailand

²Center of Excellence for Pharmacology and Molecular Biology of Malaria and Cholangiocarcinoma, Chulabhorn International College of Medicine, Thammasat University, Pathumthani, Thailand

³College of Public Health Sciences, Chulalongkorn University, Bangkok, Thailand

⁴Blood Disease Diagnostic Center, Ramathibodi Hospital, Bangkok, Thailand

^*Corresponding author (kesaratmu@yahoo.com)

Received December 19, 2014 Revised February 27, 2015 Accepted March 5, 2015

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

Hemoglobinopathy and malaria are commonly found worldwide particularly in malaria endemic areas. Thalassemia, the alteration of globin chain synthesis, has been reported to confer resistance against malaria. The prevalence of thalassemia was investigated in 101 malaria patients with Plasmodium falciparum and Plasmodium vivax along the Thai-Myanmar border to examine protective effect of thalassemia against severe malaria. Hemoglobin typing was performed using low pressure liquid chromatography (LPLC) and α-thalassemia was confirmed by multiplex PCR. Five types of thalassemia were observed in malaria patients. The 2 major types of thalassemia were Hb E (18.8%) and α-thalassemia-2 (11.9%). There was no association between thalassemia hemoglobinopathy and malaria parasitemia, an indicator of malaria disease severity. Thalassemia had no significant association with P. vivax infection, but the parasitemia in patients with coexistence of P. vivax and thalassemia was about 2-3 times lower than those with coexistence of P. falciparum and thalassemia and malaria without thalassemia. Furthermore, the parasitemia of P. vivax in patients with coexistence of Hb E showed lower value than coexistence with other types of thalassemia and malaria without coexistence. Parasitemia, hemoglobin, and hematocrit values in patients with coexistence of thalassemia other than Hb E were significantly lower than those without coexistence of thalassemia. Furthermore, parasitemia with coexistence of Hb E were 2 times lower than those with coexistence of thalassemia other than Hb E. In conclusion, the results may, at least in part, support the protective effect of thalassemia on the development of hyperparasitemia and severe anemia in malaria patients.

Key words: Plasmodium falciparum, Plasmodium vivax, malaria, thalassemia, hemoglobin E

INTRODUCTION

Malaria is an ancient disease that causes death until present age. Resistance of malaria parasite to most of the available antimalarial drugs has been a major public health concern particularly in Southeast Asia. Plasmodium falciparum and Plasmodium vivax are the 2 predominant malarial species in this area [1]. Several host factors have been reported to contribute to malaria severity. These include innate immunity [2], hemoglobinopathies such as thalassemia [3], enzymopathies such as glucose-6-phosphate dehydrogenase (G6PD) deficiency [4], heme oxygenase (HO) polymorphism [5,6], and tumor necrosis factor-α promoter polymorphism (TNF-α) [7]. Among them, thalassemia has been reported to confer protection against malaria disease [3].

Thalassemia is a hemoglobin disorder caused by alteration in the synthesis of globin chain of hemoglobin. This hemoglobinopathy is classified into 2 forms according to the abnormality of globin chains, i.e., α-, and β-thalassemia. The α-thalassemia is a result of decrease in synthesis of 1 or 2 α-globin chain on chromosome 16p13.3 [8]. The deletion of α-globin gene results in alteration of the normal genotype (αα/αα) to the severe form, α-thalassemia-1 (--/αα, --/--), and the mild form, α-thalassemia-2 (-α/αα, -α/-α). Furthermore, α-globin chain is also inactivated by point mutation. Similarly to α-thalassemia, β-thalassemia is the disorder produced by decrease in synthesis of β-globin chain which located on chromosome 11 (11p15.5) [8]. The common abnormality of β-globin gene is usually resulted from mutation rather than deletion. Hemoglobin E (Hb E), the most common form of thalassemia in Southeast Asia [9], is caused by replacement of glutamic acid at codon 26 of β-globin chain with lysine [10].

Thalassemia is widely distributed around the world and is commonly observed in malaria-endemic areas [11]. The coexistence of thalassemia and malaria was reported to protect the infected host against malaria caused by P. falciparum [8,12-14]. Such association, however, was not demonstrated in P. vivax in a study from Papua New Guinea in children aged 3-21 months, although parasite density was significantly higher in α-thalassemia-2 [15]. To investigate the protective effect of thalassemia against malaria, the prevalence of thalassemia was investigated in patients infected with the 2 predominant malaria species, P. falciparum and P. vivax, in malaria endemic areas on the western and southern regions of Thailand.

MATERIALS AND METHODS

Study subjects and sample collection

A total of 101 blood samples were collected from patients (12 Thais and 89 Burmeses) with mono-infection with P. falciparum (n=40), P. vivax (n=58), or mixed infection of P. falciparum and P. vivax (n=3). The study was conducted at malaria clinics in Tak (Mae Sot district: n=69) and Ranong (Kraburi district: n=32) provinces of Thailand during 2012 and 2013. The study protocol was approved by the Ethics Committee of Thammasat University (Certificate no. 040/2555). Giemsastained thin and thick blood smears were prepared and examined microscopically for the presence of malaria parasites. Parasites and white blood cells (WBCs) were counted on the thick film using a 100× oil-immersion objective, and the number of parasites was recorded when 200 WBCs were counted.

Detection of thalassemia

Hemoglobin analysis was screened using osmotic fragility test (OF test), and hemoglobin typing was performed using automated low pressure liquid chromatography (LPLC) (automated analyzer: Hb Gold, Drew Scientific Ltd., Cumbria, UK). The genomic DNA was extracted from peripheral blood using a QIAamp DNA extraction mini-kit (QIAGEN, Valencia, California, USA) according to the standard protocol. The common α-thalassemia including α-thalassemia-1 (SEA and THAI deletions), α-thalassemia-2 (3.7 and 4.2 kb deletions), Hb constant spring, and Hb Pakse mutations were analyzed by multiplex PCR methods.

Statistical analysis

Statistical analysis was performed using the SPSS statistical package (version 12.0 SPSS Inc., Chicago, Illinois, USA). Difference of qualitative and quantitative data between groups was analyzed using the chi-square test and ANOVA with Tukey analysis, respectively. Statistical significance level was set at α=0.05.

RESULTS

The prevalence of thalassemia in malaria patients

The typing of thalassemia was performed by determination of amount and type of Hb with Hb chromatogram, OF test, mean corpuscular volume (MCV), and mean corpuscular hemoglobin (MCH). Normal or non-clinically significant thalassemia was identified using negative OF test, HbA₂ (<4%), MCV (≥80 fL), and MCH (≥27 pg). α-thalassemia-1 or 2 trait and homozygous α-thalassemia-2 were identified using positive OF test, HbA₂ (<4%), MCV (≥80 fL), and MCH (≥27 pg). β-thalassemia trait was identified using the criteria similarly to that of α-thalassemia-1 or 2 trait, except that the cut-off HbA₂ used was 4-8%. Hb E trait was identified using negative or positive OF test, Hb E (≤25%), MCV (<80 fL or normal), and MCH (<27 pg or normal); if the Hb E was less than 25%, it can be classified as Hb E trait with or without α-thalassemia. Homozygous Hb E with or without α-thalassemia was identified using positive OF test, Hb E (≥80%), Hb F (≤5%), MCV (<80 fL), and MCH (<27 pg).

The prevalence of thalassemia in 101 patients with malaria infection was 36.7%. Five types of thalassemia were observed, i.e., Hb E, β-thalassemia, α-thalassemia-2, Hb E/α-thalassemia-2, and β-thalassemia/α-thalassemia-2 (Table 1). The 2 major types were Hb E (18.8%) and α-thalassemia-2 (11.9%). The α-thalassemia-2 of all patients was a 3.7 kb deletion. The α-thalassemia-1 was not detected in any patient. The prevalence of Hb E vs α-thalassemia-2 thalassemia in Thai and Burmese patients were 2/12 (16.7%) vs 2/12 (16.7%) and 17/89 (19.1%) vs 15/89 (16.9%), respectively.

Relationship between malaria patients with and without coexistence of thalassemia

The malaria parasitemia in patients with and without coexistence of all 5 types of thalassemia were comparable (Table 2). No significant difference in parasitemia, hemoglobin, and hematocrit was observed between patients with malaria (both P. falciparum and P. vivax) with or without coexistence of thalassemia. However, the coexistence patients had 2 times lower parasitemia than malaria patients without coexistence. The prevalence of patients with and without coexistence of thalassemia in 2 endemic areas were 28 (40.6%) and 41 (59.1%) in western region and 9 (28.1%) and 23 (71.9%), respectively.

The P. falciparum-infected patients with coexistence of thalassemia showed 3 times lower parasitemia than P. falciparum-infected patients without coexistence (Table 2). High parasitemia was found in patient with coexistence of α-thalassemia-2. Whereas, P. vivax-infected patients with and without coexistence of thalassemia showed similar parasitemia. Furthermore, mixed infection of P. falciparum and P. vivax patients with coexistence of thalassemia represented closely 3 times lower parasitemia than mixed infection patients without coexistence. The results might suggest the protective effect of thalassemia on P. falciparum-infected patients but not on P. vivax-infected patients. Nevertheless, there was no significant difference in parasitemia, hemoglobin, and hematocirt between malaria (both P. falciparum and P. vivax) patients with or without coexistence of thalassemia.

The comparison of P. falciparum with coexistence of thalassemia and P. vivax with coexistence of thalassemia showed 3 times lower parasitemia in P. vivax patients. The coexistence of β-thalassemia was found only in P. falciparum infection whereas Hb E/α-thalassemia-2 was found only in P. vivax infection.

Relationship between Hb E thalassemia and malaria parasitemia, hemoglobin, and hematocrit

The malaria patients with coexistence of Hb E showed more prevalence than other types of thalassemia; therefore, parasitemia, hemoglobin, and hematocrit were compared. Parasitemia of malaria in patients with coexistence of Hb E showed lower than those with coexistence with other types of thalassemia and malaria without coexistence, 2 and 3 times, respectively (Table 3). Parasitemia, hemoglobin, and hematocrit values in patients with coexistence of thalassemia other than Hb E were significantly lower than those without coexistence of thalassemia (parasitemia: P=0.048; hemoglobin: P=0.021; hematocrit: P=0.018). There was no significant relationship for such values in malaria patients with Hb E thalassemia.

DISCUSSION

Tak province in the western region and Ranong province in the southern region are the 2 top 10 provinces of Thailand with malaria incidence in 2013. Most of the patients included in the study were Burmese, and the prevalence rate of P. vivax infection was found to be higher than P. falciparum infection with the ratio 1.5:1. The overall prevalence rate of thalassemia hemoglobinopathy in this group of populations was 36.7%. The most prevalent type Hb E (18.8%) is a common abnormal hemoglobin form of thalassemia which is distributed in Mediterranean, East Asia, India subcontinent, and Southeast Asia [16]. Hb E carriers in Thai (10-60%) and Burmese (11.4-60%) populations have been reported to vary markedly depending on the areas of investigation [17]. Results of the present study showed that Hb E is the most predominant form of thalassemia with prevalence rates of 2/12 (16.7%) and 17/89 (19.1%) in Thai and Burmese malaria patients, respectively. This was consistent with that previously observed in other Southeast Asian countries such as Laos and Cambodia [9]. The most severe form α-thalassemia-1, is found in Southeast Asia and China. In Thailand, the prevalence of this thalassemia type varies from 2.5 to 10% in each area of the country [9]. In addition, α-thalassemia-2 is also distributed in several malaria endemic countries including Nepal, India, and Papua New Guinea [18]. The common types are those with deletion of 3.7 and 4.2 kb. In Southeast Asia, the most common types of α-thalassemia-1 and α-thalassemia-2 are --^SEA and -α^3.7, respectively. The frequency of -α^3.7 in Thai population in northeast area of the country was reported as 17.5% [19].

The association between malaria disease severity and various red cell disorders were investigated in various studies [20-22]. Most studies were performed in patients with P. falciparum infection to explore the protective effect of red cell disorders on malaria. These red cell disorders included disorders related to merozoite invasion protection, parasite growth within the red blood cell, and the ability to eliminate malaria from red blood cells [23]. Study on the relationship between red cell disorders and the incidence of malaria in Myanmar suggested protection of thalassemic red cells against severe falciparum malaria [21]. The mean parasitemia in α- or β-thalassaemia trait patients was significantly lower than patients with normal hemoglobin or heterozygous HbE. In a study in Thailand, HbA₂ and Hb E levels were shown not to be enhanced by P. falciparum infection. This suggests that Hb E disorder might be due to the natural selection of malaria [24]. Furthermore, it was shown that the Hb E trait red blood cells were resistant to invasion by P. falciparum, with unidentified membrane abnormality [25].

In this study, hemoglobin and hematocrit of patients with thalassemia other than Hb E were found to be significantly lower than those with normal red cells. However, no such relationship was found with those carrying Hb E. Results may at least in part support the assumption that thalassemic red cells may protect patients from further development to severe malaria as a result of hyperparasitemia. Interestingly, it is of note for the coexistence of malaria with only α-thalassemia-2 but not α-thalassemia-1, the commonly found thalassemia type in Southeast Asia. It is possible that α-thalassemia-1 protects host red cells from malaria infection in this population. Definite conclusion on this issue should be further explored with inclusion of a larger sample in the analysis.

In conclusion, a trend of decreasing parasitemia was found in malaria patients with coexistence of thalassemia. The results may, at least in part, support the protective effect of thalassemia on the development of hyperparasitemia and severe anemia in malaria patients. Nevertheless, definite conclusion on such relationship including the underlying mechanisms needs to be confirmed in a larger study.

ACKNOWLEDGEMENTS

The study was supported by Thammasat University Research Fund under the TU Research Scholar, Contract No. 57/2555.

Conflict of interest

We have no conflict of interest related to this work.

REFERENCES

1. World Health Organization. World Malaria Report. Geneva. World Health Organization. 2013.

2. Stevenson MM, Riley EM. Innate immunity to malaria. Nat Rev Immunol 2004;4:169-180.

3. Weatherall DJ. Thalassaemia and malaria, revisited. Ann Trop Med Parasitol 1997;91:885-890.

4. Guindo A, Fairhurst RM, Doumbo OK, Wellems TE, Diallo DA. X-linked G6PD deficiency protects hemizygous males but not heterozygous females against severe malaria. PLoS Med 2007;4:e66.

5. Takeda M, Kikuchi M, Ubalee R, Na-Bangchang K, Ruangweerayut R, Shibahara S, Imai S, Hirayama K. Microsatellite polymorphism in the heme oxygenase-1 gene promoter is associated with susceptibility to cerebral malaria in Myanmar. Jpn J Infect Dis 2005;58:268-271.

6. Kuesap J, Hirayama K, Kikuchi M, Ruangweerayut R, Na-Bangchang K. Study on association between genetic polymorphisms of haem oxygenase-1, tumour necrosis factor, cadmium exposure and malaria pathogenicity and severity. Malar J 2010;9:260.

7. Grau GE, Taylor TE, Molyneux ME, Wirima JJ, Vassalli P, Hommel M, Lambert PH. Tumor necrosis factor and disease severity in children with falciparum malaria. N Engl J Med 1989;320:1586-1591.

8. Yuthavong Y, Wilairat P. Protection against malaria by thalassaemia and haemoglobin variants. Parasitol Today 1993;9:241-245.

9. Fucharoen S, Winichagoon P. Hemoglobinopathies in Southeast Asia. Hemoglobin 1987;11:65-88.

10. Ohashi J, Naka I, Patarapotikul J, Hananantachai H, Brittenham G, Looareesuwan S, Clark AG, Tokunaga K. Extended linkage disequilibrium surrounding the hemoglobin E variant due to malarial selection. Am J Hum Genet 2004;74:1198-1208.

11. Vento S, Cainelli F, Cesario F. Infections and thalassaemia. Lancet Infect Dis 2006;6:226-233.

12. Williams TN, Mwangi TW, Wambua S, Peto TE, Weatherall DJ, Gupta S, Recker M, Penman BS, Uyoga S, Macharia A, Mwacharo JK, Snow RW, Marsh K. Negative epistasis between the malaria-protective effects of alpha+-thalassemia and the sickle cell trait. Nat Genet 2005;37:1253-1257.

13. Wambua S, Mwangi TW, Kortok M, Uyoga SM, Macharia AW, Mwacharo JK, Weatherall DJ, Snow RW, Marsh K, Williams TN. The effect of alpha+-thalassaemia on the incidence of malaria and other diseases in children living on the coast of Kenya. PLoS Med 2006;3:e158.

14. Mockenhaupt FP, May J, Bergqvist Y, Meyer CG, Falusi AG, Bienzle U. Evidence for a reduced effect of chloroquine against Plasmodium falciparum in alpha-thalassaemic children. Trop Med Int Health 2001;6:102-107.

15. Rosanas-Urgell A, Senn N, Rarau P, Aponte JJ, Reeder JC, Siba PM, Michon P, Mueller I. Lack of associations of alpha(+)-thalassemia with the risk of Plasmodium falciparum and Plasmodium vivax infection and disease in a cohort of children aged 3-21 months from Papua New Guinea. Int J Parasitol 2012;42:1107-1113.

16. Fucharoen S, Winichagoon P. Thalassemia and abnormal hemoglobin. Int J Hematol 2002;76(suppl 2):83-89.

17. Win N, Lwin AA, Oo MM, Aye KS, Soe S, Okada S. Hemoglobin E prevalence in malaria-endemic villages in Myanmar. Acta Med Okayama 2005;59:63-66.

18. Flint J, Hill AV, Bowden DK, Oppenheimer SJ, Sill PR, Serjeantson SW, Bana-Koiri J, Bhatia K, Alpers MP, Boyce AJ, Weatherall DJ, Clegg JB. High frequencies of alpha-thalassaemia are the result of natural selection by malaria. Nature 1986;321:744-750.

19. Tritipsombut J, Sanchaisuriya K, Phollarp P, Bouakhasith D, Sanchaisuriya P, Fucharoen G, Fucharoen S, Schelp FP. Micromapping of thalassemia and hemoglobinopathies in diferent regions of northeast Thailand and Vientiane, Laos People's Democratic Republic. Hemoglobin 2012;36:47-56.

20. Wiwanitkit V. Genetic disorders and malaria in Indo-China region. J Vector Borne Dis 2008;45:98-104.

21. Oo M, Tin S, Marlar T, O'Sullivan WJ. Genetic red cell disorders and severity of falciparum malaria in Myanmar. Bull World Health Organ 1995;73:659-665.

22. O'Donnell A, Premawardhena A, Arambepola M, Samaranayake R, Allen SJ, Peto TE, Fisher CA, Cook J, Corran PH, Olivieri NF, Weatherall DJ. Interaction of malaria with a common form of severe thalassemia in an Asian population. Proc Natl Acad Sci USA 2009;106:18716-1821.

23. Williams TN, Maitland K, Bennett S, Ganczakowski M, Peto TE, Newbold CI, Bowden DK, Weatherall DJ, Clegg JB. High incidence of malaria in alpha-thalassaemic children. Nature 1996;383:522-525.

24. Wasi P, Kruatrachue M, Piankijagum A, Pravatmeung P. Hemoglobins A 2 and E levels in malaria. J Med Assoc Thai 1971;54:559-563.

25. Chotivanich K, Udomsangpetch R, Pattanapanyasat K, Chierakul W, Simpson J, Looareesuwan S, White N. Hemoglobin E: a balanced polymorphism protective against high parasitemias and thus severe P. falciparum malaria. Blood 2002;100:1172-1176.

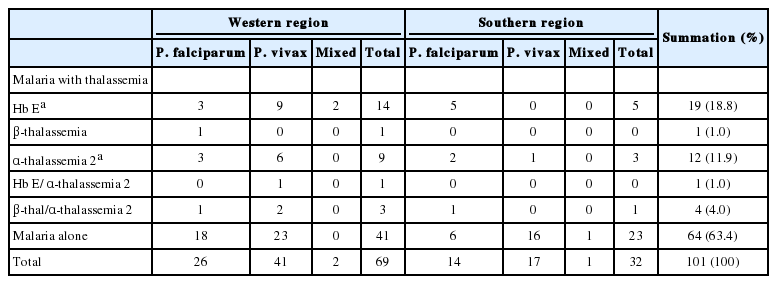

Table 1.

Prevalence of thalassemia in patients with malaria in the western (Tak province) and southern (Ranong province) regions of Thailand

	Western region				Southern region				Summation (%)
	P. falciparum	P. vivax	Mixed	Total	P. falciparum	P. vivax	Mixed	Total	Summation (%)
Malaria with thalassemia
Hb E^a	3	9	2	14	5	0	0	5	19 (18.8)
β-thalassemia	1	0	0	1	0	0	0	0	1 (1.0)
α-thalassemia 2^a	3	6	0	9	2	1	0	3	12 (11.9)
Hb E/α-thalassemia 2	0	1	0	1	0	0	0	0	1 (1.0)
β-thal/α-thalassemia 2	1	2	0	3	1	0	0	1	4 (4.0)
Malaria alone	18	23	0	41	6	16	1	23	64 (63.4)
Total	26	41	2	69	14	17	1	32	101 (100)

Data are presented as numbers (%).

^a Including individuals with heterozygous and homozygous.

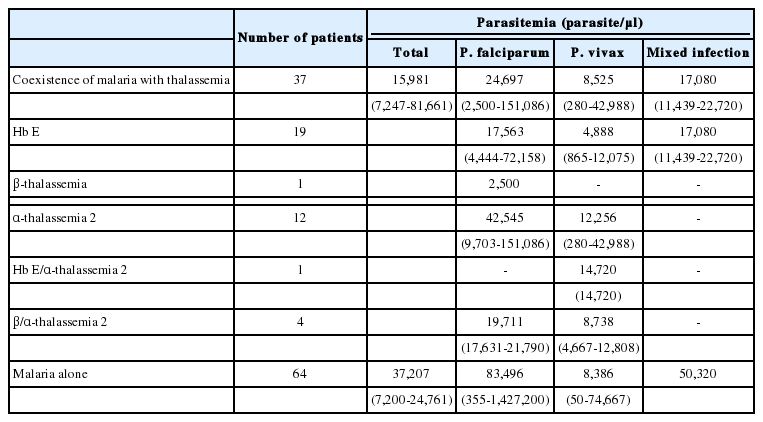

Table 2.

Malaria parasitemia in patients with or without thalassemia

	Number of patients	Parasitemia (parasite/μl)
	Number of patients	Total	P. falciparum	P. vivax	Mixed infection
Coexistence of malaria with thalassemia	37	15,981 (7,247-81,661)	24,697 (2,500-151,086)	8,525 (280-42,988)	17,080 (11,439-22,720)
Hb E	19		17,563 (4,444-72,158)	4,888 (865-12,075)	17,080 (11,439-22,720)
β-thalassemia	1		2,500	-	-
α-thalassemia 2	12		42,545 (9,703-151,086)	12,256 (280-42,988)	-
Hb E/α-thalassemia 2	1		-	14,720 (14,720)	-
β/α-thalassemia 2	4		19,711 (17,631-21,790)	8,738 (4,667-12,808)	-
Malaria alone	64	37,207 (7,200-24,761)	83,496 (355-1,427,200)	8,386 (50-74,667)	50,320

Data are presented as mean (95% CI) values.

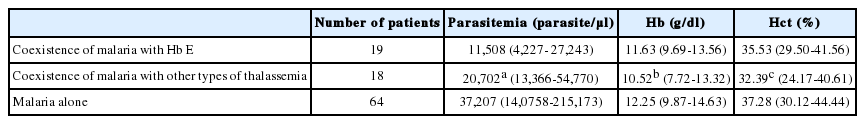

Table 3.

Malaria parasitemia, hemoglobin, and hematocrit in patients with hemoglobin E thalassemia, other types of thalassemia, and those without thalassemia

	Number of patients	Parasitemia (parasite/μl)	Hb (g/dl)	Hct (%)
Coexistence of malaria with Hb E	19	11,508 (4,227-27,243)	11.63 (9.69-13.56)	35.53 (29.50-41.56)
Coexistence of malaria with other types of thalassemia	18	20,702^a (13,366-54,770)	10.52^b (7.72-13.32)	32.39^c (24.17-40.61)
Malaria alone	64	37,207 (14,0758-215,173)	12.25 (9.87-14.63)	37.28 (30.12-44.44)

Data are presented as mean (95% CI) values.

Hb, hemoglobin; Hct, hematocrit.

^a Statistically significant difference with patients without thalassemia (P=0.048)

^b Statistically significant difference with patients without thalassemia (P=0.021)

^c Statistically significant difference with patients without thalassemia (P=0.018)
