Genetic Diversity of <italic>Taenia asiatica</italic> from Thailand and Other Geographical Locations as Revealed by Cytochrome <italic>c</italic> Oxidase Subunit 1 Sequences

Malinee Thairungroj Anantaphruti; Urusa Thaenkham; Dorn Watthanakulpanich; Orawan Phuphisut; Wanna Maipanich; Tippayarat Yoonuan; Supaporn Nuamtanong; Somjit Pubampen; Surapol Sanguankiat

doi:10.3347/kjp.2013.51.1.55

Korean J Parasito > Volume 51(1):2013 > Article

Anantaphruti, Thaenkham, Watthanakulpanich, Phuphisut, Maipanich, Yoonuan, Nuamtanong, Pubampen, and Sanguankiat: Genetic Diversity of Taenia asiatica from Thailand and Other Geographical Locations as Revealed by Cytochrome c Oxidase Subunit 1 Sequences

Articles from Symposium on Asian Taenia (October 2011, Osong, Korea)

The Korean Journal of Parasitology 2013; 51(1): 55-59.

Published online: February 18, 2013

DOI: https://doi.org/10.3347/kjp.2013.51.1.55

Genetic Diversity of Taenia asiatica from Thailand and Other Geographical Locations as Revealed by Cytochrome c Oxidase Subunit 1 Sequences

Malinee Thairungroj Anantaphruti, Urusa Thaenkham, Dorn Watthanakulpanich, Orawan Phuphisut, Wanna Maipanich, Tippayarat Yoonuan, Supaporn Nuamtanong, Somjit Pubampen, Surapol Sanguankiat

Department of Helminthology, Faculty of Tropical Medicine, Mahidol University, Thailand.

Corresponding author (tmmtr@mahidol.ac.th)

Received March 26, 2012 Revised December 27, 2012 Accepted December 27, 2012

(open-access, http://creativecommons.org/licenses/by-nc/3.0/):

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

Twelve 924 bp cytochrome c oxidase subunit 1 (cox1) mitochondrial DNA sequences from Taenia asiatica isolates from Thailand were aligned and compared with multiple sequence isolates from Thailand and 6 other countries from the GenBank database. The genetic divergence of T. asiatica was also compared with Taenia saginata database sequences from 6 different countries in Asia, including Thailand, and 3 countries from other continents. The results showed that there were minor genetic variations within T. asiatica species, while high intraspecies variation was found in T. saginata. There were only 2 haplotypes and 1 polymorphic site found in T. asiatica, but 8 haplotypes and 9 polymorphic sites in T. saginata. Haplotype diversity was very low, 0.067, in T. asiatica and high, 0.700, in T. saginata. The very low genetic diversity suggested that T. asiatica may be at a risk due to the loss of potential adaptive alleles, resulting in reduced viability and decreased responses to environmental changes, which may endanger the species.

Key words: Taenia asiatica, Taenia saginata, cox1 gene, genetic diversity, Thailand, different geographical location

INTRODUCTION

Taenia asiatica is one of the 3 species of parasitic tapeworms (Taenia solium, Taenia saginata, and T. asiatica) reported as human pathogens [1,2]. This parasite is distributed in Asian countries where people eat inappropriately cooked viscera of pigs, especially the liver contaminated with metacestodes. T. asiatica was first described as a new species, based on morphologic characters of adult worms and metacestodes [3]. Studies on the morphology of adult worms showed that T. asiatica is very similar to T. saginata; therefore, it is very difficult to distinguish one from the other [4,5]. The 2 species can be discriminated by genetic data such as restriction fragment length polymorphism (RFLP) data and/or mitochondrial DNA sequence data [6-8].

T. asiatica and T. saginata diverged from a shared common ancestor around 0.16 million years ago [9]. After separation, these 2 lineages have evolved to have different intermediate hosts in their life cycle. T. asiatica infects the visceral organs of pigs while T. saginata infects the muscle of cattle [5,10,11]. Moreover, geographical localities between these parasites are different. T. asiatica is distributed in specific areas, e.g., in several countries of Asia, including Taiwan [11], Korea [3], China [12], Vietnam [13], Indonesia [14], and Thailand [15], but T. saginata can be found worldwide [16].

In Thailand, Thong Pha Phum District, northwest of Kanchanaburi, a west-central province, is the only reported site of T. asiatica. It is still unknown if differences in geographical locations and ecological niches affect intra- and inter-specific variations. In this study, we aimed to reveal genetic variations within the species of T. asiatica and of T. saginata using cytochrome c oxidase subunit 1 (cox1) as a DNA marker.

MATERIALS AND METHODS

Parasites and source of gene sequences

Taenia proglottids used in this study were previously collected from patients in Kanchanaburi Province during 2003-7. A rough gross morphology of either gravid segment or scolex was identified as T. saginata were collected. Worms were preserved in 70% ethanol and kept frozen (-70℃) until used. The scolex, with mature and gravid proglottids from some cases were fixed with 10% formalin, stained with acetic carmine and examined morphologically. Twelve molecularly identified T. asiatica isolate samples were used in this study [15,17,18]. The other sequences of T. asiatica and T. saginata used for analysis in this study were compiled from the GenBank database (Table 1).

DNA preparation, PCR, and sequencing

Partial fragments of the strobilated proglottids from each isolate were separated and washed with distilled water, to remove any ethanol remaining from the fixation process. The genomic DNA of each worm was extracted using a Genomic DNA Mini Kit (Geneaid Biotech Ltd, Sijhih City, Taiwan), according to the manufacturer's instructions. DNA was re-suspended in 50 µl of elution buffer (provided in the kit). The 1,140 bp PCR amplicons were amplified using 2 oligonucleotide primers: cox1 (forward); 5'-CATGGAATAATAATGATTTTC-3' and cox1 (reverse); 5'-ACAGTACACACAATTTTAAC-3'. These primers were designed from the alignment of T. saginata and T. asiatica mitochondrial cox1 genes (AB533171 and AB533175, respectively). PCR amplicons were produced in 50 µl of reaction mixture containing 10 ng genomic DNA, 0.5 µM of each primer, 1X TopTaq™ Master Mix Kit (Containing TopTaq DNA Polymerase, PCR Buffer (with 1.5 mM MgCl₂), and 200 µM each dNTP) (QIAGEN, Hilden, Germany). Amplification conditions were as follows: initial heating at 94℃ for 3 min, followed by 30 amplification cycles, consisting of denaturation at 95℃ for 30 sec, annealing at 53℃ for 30 sec, and elongation at 72℃ for 50 sec. PCR products were run on 1.2% agarose gel and visualized with a UV illuminator. The PCR amplicons were purified and sequenced by dideoxy-termination method and ABI3730XL sequencer and BigDye v3.1 (Applied Biosystems, Foster City, California, USA) at Macrogen Inc. (Geumcheon-gu, Seoul, Korea).

Clustering diagram and Genetic diversity analysis

The cox1 sequences were aligned by Clustal X version 2.0 [19], and haplotypes were distinguished. A neighbor-joining (NJ) phylogram was constructed under p-distance model by MEGA version 5.0 [20]. Bootstrap analyses were conducted using 1,000 replicates. The genetic diversity values including polymorphic sites (S), haplotype numbers (h), haplotype diversity (Hd), and nucleotide diversity (π) were calculated by using the DnaSP 5.0 program [21]. This program was also used to evaluate the genetic structure of the parasites under the population expansion effect via Tajima's D test.

RESULTS

We found significant differences in the amount of genetic variations within T. asiatica and within T. saginata (Table 2). The sequences of the 924 bp cox1 gene of T. asiatica from 12 Thai samples were added. The genetic variations among 30 samples of T. asiatica from 7 different countries (China, Taiwan, Korea, Japan, the Philippines, Indonesia, and Thailand) (Table 1) were almost identical (Table 2). Only 2 haplotypes (A and B) of the cox1 gene were found. The major genotype of T. asiatica was haplotype A, composed of 29 samples. Only 1 sample from China was haplotype B, with only 1 polymorphic site found at nucleotide position 115 (Tables 3, 4). On the other hand, for T. saginata there were 8 different genotypes (haplotype C to J) with 9 polymorphic sites (Tables 3, 4) in 16 samples from 9 countries in both Asia and other countries (Table 1). The major genotype is haplotype C which is composed of 8 isolates. The nucleotide variations were 1-3 positions in each haplotype. The genetic variation, therefore, in T. saginata is high. The segregation site S (polymorphic site) and haplotype number h of T. asiatica was 1 and 2, respectively, while those of T. saginata was 9 and 8, respectively (Table 2). Significant differences between T. asiatica and T. saginata were seen when comparing the haplotype diversity: Hd, which was 0.067 in T. asiatica and 0.700 in T. saginata. However, the value of nucleotide diversity: π of each 2 species was very low (Table 2). The genetic variations of T. asiatica and T. saginata were indicated by genetic divergence on the clustering diagram (Fig. 1).

DISCUSSION

Although T. asiatica and T. saginata derived from a shared common ancestor a long time ago, their morphological characters are still similar [5]. DNA variation is a clear information to clarify their genetic divergence. The mitochondrial genes, cox1 and cytochrome b (cob), showed a distant relationship between T. asiatica and T. saginata [8]. The different intermediate hosts in their life cycle between these species might be one of the conditions causing genetic divergence. The intermediate host of T. asiatica is the pig while that of T. saginata is cattle [5]. The obvious difference between the farming of pigs and of cattle is population migration. Cattle frequently move from one locality to another to find food, while pigs are restricted to their pigsty.

The phylogenetic tree showed genetic variations of both parasites were not related to geographical locality. For T. asiatica, the low genetic variation might suggest that populations of the parasite might be small, i.e., prevalence of T. asiatica is low when compared to T. saginata in most countries; with very low recombination. For T. saginata, the results showed high genetic variations but no specific locality for each genotype. It might suggest that T. saginata populations migrated during cattle farming. The gene flow among T. saginata might be one effect influenced by population migration. The Tajima's D value was tested for gene flow of T. asiatica and T. saginata. The test revealed no gene flow in both species samples studied. It is possible that the sample size tested for T. saginata is small. The results suggested that more samples of T. saginata are needed to clarify its population structure. In this study, it is suggested that very low genetic diversity in T. asiatica (Table 2) might lead to a reduction of the parasite species, due to loss of potentially adaptive alleles for surviving in changing environments as similarly recognized with other endangered species [22].

ACKNOWLEDGMENTS

This study was supported by a research grant from the Faculty of Tropical Medicine, Mahidol University, academic year 2009. Sincere thanks are extended to the "Symposium on current perspectives of Taenia asiatica researches" held at Osong, Korea in 2011, who invited the authors of this paper to present their work.

REFERENCES

1. Fan PC. Taiwan Taenia and taeniasis. Parasitol Today 1988;4:86-88. PMID: 15463051.

2. Eom KS, Jeon HK, Rim HJ. Geographical distribution of Taenia asiatica and related species. Korean J Parasitol 2009;47:S115-S124. PMID: 19885327.

3. Eom KS, Rim HJ. Morphologic descriptions of Taenia asiatica sp. n. Korean J Parasitol 1993;31:1-6. PMID: 8512894.

4. Fan PC, Lin CY, Chen CC, Chung WC. Morphologic description of Taenia saginata asiatica (Cyclophyllidea: Taeniidae) from man in Asia. J Helminthol 1995;69:299-303. PMID: 8583124.

5. Eom KS. What is Asian Taenia? Parasitol Int 2006;55:S137-S141. PMID: 16387528.

6. Zarlenga DS, McManus DP, Fan PC, Cross JH. Characterization and detection of a newly described Asian taeniid using cloned ribosomal DNA fragments and sequence amplification by the polymerase chain reaction. Exp Parasitol 1991;72:174-183. PMID: 1672653.

7. Bowles J, McManus DP. Genetic characterization of the Asian Taenia, a newly described taeniid cestode of humans. Am J Trop Med Hyg 1994;50:33-44. PMID: 7905720.

8. Jeon HK, Eom KS. Taenia asiatica and Taenia saginata: Genetic divergence estimated from their mitochondrial genomes. Exp Parasitol 2006;113:58-61. PMID: 16546174.

9. Hoberg EP, Alkire NL, Queiroz AD, Jones A. Out of Africa: origins of the Taenia tapeworms in humans. Proc Biol Sci 2001;268:781-787. PMID: 11345321.

10. Eom KS, Rim HJ. Natural infection of Asian Taenia saginata metacestodes in the livers of Korean domestic pigs. Korean J Parasitol 1992;30:15-20.

11. Eom KS, Rim HJ, Geerts S. Experimental infection of pigs and cattle with eggs of Asian Taenia saginata with special reference to its extrahepatic viscerotropism. Korean J Parasitol 1992;30:269-275.

12. Zhang L, Tao H, Zhang B, Wang H, Wang Y, Li Z, Yang J, Yang B, Li Y, Pang Y, Zhang H, Li Y, Wu Y. First discovery of Taenia saginata asiatica infection in Yunnan province. Zhongguo Ji Sheng Chong Xue Yu Ji Sheng Chong Bing Za Zhi 1999;17:95-96 (in Chinese). PMID: 12563790.

13. De NV, Hoa LT, Doanh NQ, Ngoc NB, Cong LD. Report on a new species of Taenia (Taenia asiatica) in Hanoi, Vietnam. J Malaria Parasit Dis Control 2001;3:80-85.

14. Wandra T, Depary AA, Sutisna P, Margono SS, Suroso T, Okamoto M, Craig PS, Ito A. Taeniasis and cysticercosis in Bali and North Sumatra, Indonesia. Parasitol Int 2006;55:S155-S160. PMID: 16376140.

15. Anantaphruti MT, Yamasaki H, Nakao M, Waikagul J, Watthanakulpanich D, Nuamtanong S, Maipanich W, Pubampen S, Sanguankiat S, Muennoo C, Nakaya K, Sato MO, Sako Y, Okamoto M, Ito A. Sympatric occurrence of Taenia solium, T. saginata, and T. asiatica, Thailand. Emerg Infect Dis 2007;13:1413-1416. PMID: 18252126.

16. Markell EK, Voge M, John DT. Medical Parasitology. 1992, 7th ed. Philadelphia, USA. WB Saunders Company. pp 242-244.

17. Anantaphruti MT, Okamoto M, Yoonuan T, Saguankiat S, Kusolsuk T, Sato M, Sato MO, Sako Y, Waikagul J, Ito A. Molecular and serological survey on taeniasis and cysticercosis in Kanchanaburi Province, Thailand. Parasitol Int 2010;59:326-330. PMID: 20380891.

18. Anantaphruti MT. Current status of taeniasis in Thailand. Korean J Parasitol 2013;51:37-42.

19. Thompson JD, Gibson TJ, Plewniak F, Jeanmougin F, Higgins DG. The clustal X windows interface: flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Res 1997;25:4876-4885. PMID: 9396791.

20. Tamura K, Peterson D, Peterson N, Stecher G, Nei M, Kumar S. MEGA5: molecular evolutionary genetic analysis using maximum likelihood, evolutionary distance, maximum parsimony methods. Mol Biol Evol 2011;28:2731-2739. PMID: 21546353.

21. Rozas J, Sánchez-DelBarrio JC, Messeguer X, Rozas R. DnaSP, DNA polymorphism analyses by the coalescent and other methods. Bioinformatics 2003;19:2496-2497. PMID: 14668244.

22. Matocq MD, Villablanca FX. Low genetic diversity in an endangered species: recent or historic pattern? Biol Conserv 2001;98:61-68.

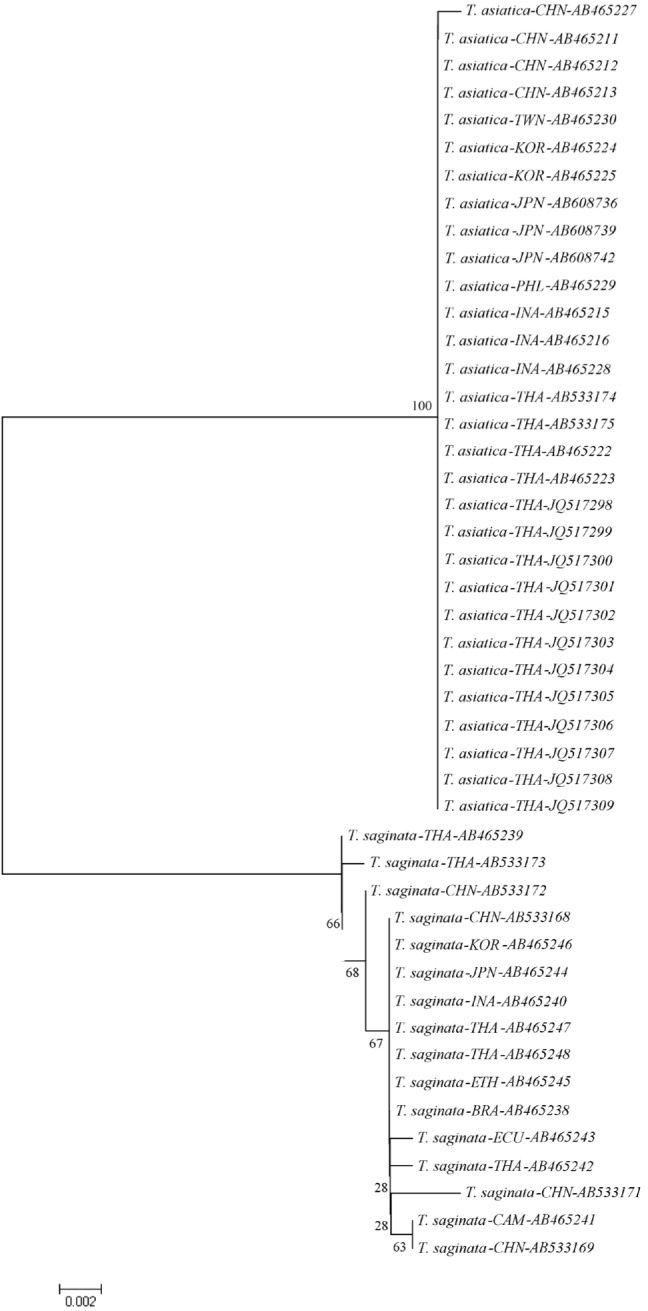

Fig. 1

Phylogenetic tree of T. asiatica and T. saginata constructed by the neighbor-joining method from genetic distance estimated by the p-distance model. The numbers on each internal node is a bootstrap proportion. JQ517298-JQ517309 are samples in this study.

Table 1.

The cox1 sequences of 30 T. asiatica isolates and 16 T. saginata isolates from different geographical localities

Species	No. of isolates	Locality (country)	Accession no.
T. asiatica	4	China	AB465211, AB465212, AB465213, AB465227
	1	Taiwan	AB465230
	2	Korea	AB465224, AB465225
	3	Japan	AB608736, AB608739, AB608742
	1	The Philippines	AB465229
	3	Indonesia	AB465215, AB465216, AB465228
	4	Thailand	AB533174, AB533175, AB465222, AB465223
	12	Thailand, this study	JQ517298-JQ517309
T. saginata	4	China	AB533172, AB533168, AB533169, AB533171
	1	Korea	AB465246
	1	Japan	AB465244
	1	Indonesia	AB465240
	5	Thailand	AB465239, AB533173, AB465247, AB465248, AB465242
	1	Cambodia	AB465241
	1	Ethiopia	AB465245
	1	Ecuador	AB465243
	1	Brazil	AB465238

Table 2.

Genetic diversity and neutrality values estimated from cox1 sequences of T. asiatica and T. saginata population

Species	No. of isolates	S	h	Hd	π	Tajima’s D^a
T. asiatica	30	1	2	0.067	0.000	-1.15
T. asiatica (Thai)	16	0	0	0	0	n/a^b
T. saginata	16	9	8	0.700	0.034	-1.731

S: segregation (polymorphic) site, h: haplotype number, Hd: haplotype diversity, π: nucleotide diversity.

^a P<0.05.

^b Not analyzed.

Table 3.

Nucleotide variation sites of partial cox1 gene (924 bp length) between T. asiatica and T. saginata from 11 different countries^a

Species	Nucleotide position^b	0	0	0	0	0	0	1	1	1	1	1	1	1	2	2	2	2	2	2	3	3	4	4	4	4	5	6	6	6	6	6	7	7	8	8	8	8	8	9	9	9	9	9	Frequency^e
		0	2	3	4	6	6	0	1	5	7	7	8	8	0	1	3	3	6	7	2	9	2	4	8	9	0	0	2	2	5	8	2	5	0	1	6	6	9	0	0	0	1	2
		6	7	9	8	0	3	8	5	6	4	7	0	6	4	9	1	7	7	0	4	6	3	4	9	2	5	6	1	4	1	7	9	0	6	6	1	4	1	1	3	9	2	4
T. asiatica	Haplotype^c
	A	G	C	T	C	A	.	A	A	A	.	A	C	G	G	T	.	T	G	A	G	G	A	A	A	.	A	G	.	G	C	T	C	G	.	G	A	G	C	T	A	G	A	.	29
	B	G	C	T	C	A	.	A	G	A	.	A	C	G	G	T	.	T	G	A	G	G	A	A	A	.	A	G	.	G	C	T	C	G	.	G	A	G	C	T	A	G	A	.	1
T. saginata	C	A	T	C	T	G	G	G	A	G	G	T	T	A	A	C	A	C	A	G	A	A	G	G	G	A	G	T	G	A	T	C	T	A	C	A	T	A	T	C	G	A	G	T	8
	D^d	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	G	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1
	E^d	.	.	.	.	.	A	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	2
	F^d	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	T	.	.	.	.	.	.	.	.	.	1
	G^d	.	.	.	.	.	.	.	.	.	A	.	.	.	.	.	G	.	.	.	.	.	.	.	.	.	.	.	A	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1
	H^d	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	T	.	.	.	.	1
	I^d	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	T	.	.	.	.	.	.	.	T	.	.	.	A	1
	J^d	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.			.	.	.	T	.	.	.	.	.	.	.	T	.	.	.	.	1

^a Eleven countries here involved in the genetic analysis include Thailand, Taiwan, Korea, China, Japan, Indonesia, the Philippines, Cambodia, Ecaudor, Brazil, and Ethiopia. The bold G font indicates nucleotide variation of T. asiatica.

^b The numbering of nucleotide positions 1-924 refers to position 400-1,324 of the complete mtDNA sequence (1,620 bp) of T. asiatica (GenBank Acc. No. AB465227).

^c Haplotype A and B are genotypes of T. asiatica while haplotype C to J are genotypes of T. saginata.

^d Dots represent homology with haplotype C sequence of T. saginata.

^e No. of samples in each haplotype.

Table 4.

The frequency of worm numbers (46) in each haplotype of T. asiatica and T. saginata from 11 different geographical countries

Species	Haplotype	Frequency											Total
Species	Haplotype	CHN	TWN	KOR	JPN	PHL	INA	THA	CAM	ETH	ECU	BRA	Total
T. asiatica	A	3	1	2	3	1	3	16	0	0	0	0	29
	B	1	0	0	0	0	0	0	0	0	0	0	1
T. saginata	C	1	0	1	1	0	1	2	0	1	0	1	8
	D	0	0	0	0	0	0	1	0	0	0	0	1
	E	1	0	0	0	0	0	0	1	0	0	0	2
	F	0	0	0	0	0	0	0	0	0	1	0	1
	G	1	0	0	0	0	0	0	0	0	0	0	1
	H	1	0	0	0	0	0	0	0	0	0	0	1
	I	0	0	0	0	0	0	1	0	0	0	0	1
	J	0	0	0	0	0	0	1	0	0	0	0	1

CHN, China; TWN, Taiwan; KOR, Korea; JPN, Japan; PHL, The Philippines; INA, Indonesia; THA, Thailand; CAM, Cambodia; ETH, Ethiopia; ECU, Ecuador; BRA, Brazil.
